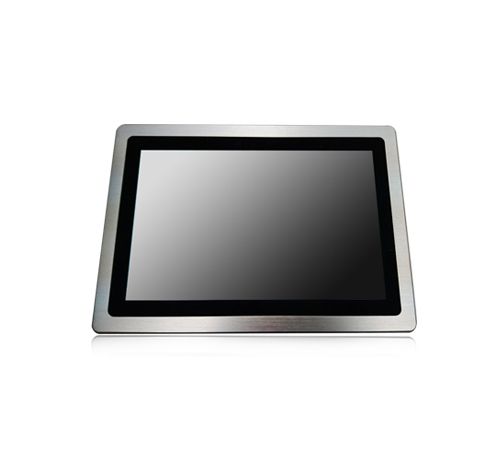

10.1" True Flat Design Front IP66 1000nits w/ VGA+DVI+HDMI, PCAP Touch /DC 12V & 24V (Model: YPMW1010HB-PCAP)
10.1" 6mm Aluminum Front Bezel / True Flat Design Front IP66 1280x800 / 1000nits LED / VGA+DVI+HDMI Signal Input / PCAP Touch with USB controller / DC 12V and 24V Power input / Panel Mount with clamps / VESA Mount
X
Inquiry/Quote Request
- Overview
- Specifications
- Download
| The YPMW1010HB-PCAP from iTech is a rugged 10-inch LCD monitor featuring a true flat front design and IP66-rated protection. Engineered for industrial and harsh environments, this panel mount display boasts high brightness for sunlight readability and a projected capacitive touch interface for accurate and responsive control. Its sleek, fanless design ensures reliability in dusty or moisture-prone settings, making it ideal for kiosks, factory automation, marine, and outdoor applications. |
Features: |
|
| Panel Type | 10.1-inch TFT LCD |
| Screen Diagonal | 10.1-inch |
| Active Display Area (mm) | 216.96(H) x 135.6(V) |
| Pixel Pitch (mm) | 0.1695 X 0.1695 |
| Number of Pixels | 1280 x 3(RGB) x 800 |
| Contrast Ratio | 800:1 |
| Color Arrangement | R.G.B. Vertical Stripe |
| Brightness (cd/m˛) | 1000 cd/m˛ |
| Viewing Angle(Typ.) | 85/85/85/85 (R/L/U/D) |
| Signal Connector | VGA, DVI, HDMI |
| Power Source | DC12Vand 24V (+/-10%) |
| Power Management | VESA DPMS Compliant |
| Operating Temperature | 0 ~ 50°C |
| Storage Temperature | -20 ~ 60°C |
| Plug & Play | VESA DDC 1/2B |
| Transparency | 90%(typ). |
| Hardness of surface | 7H |
| Linearity | ±1.5%(max). |
