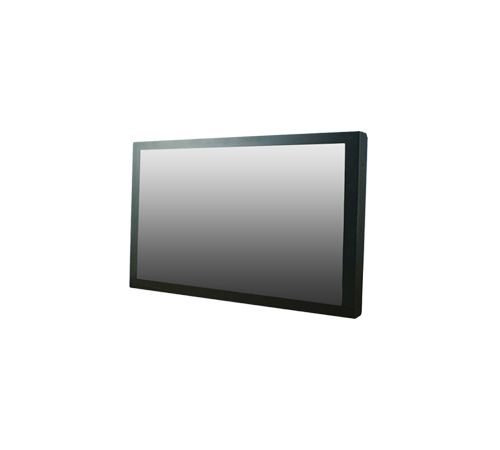

10.1" 1200nits Sunlight Readable High Brightness Chassis Mount LCD w/ VGA+DVI, 5 Wires Resistive Touch (Model: YCHW1010HB2-TR)

10.1" 1280x800, 1200nits LED Sunlight Readable High Brightness Wide Temp. -30C ~ 80C Rugged Industrial Chassis/Surface mount LCD Monitor, 9-36VDC Input with VGA+DVI Input, with 5 Wires Resistive Touch with USB Controller with Aluminum Housing ***need longer USB bracket***

10.1" 1280x800, 1200nits LED Sunlight Readable High Brightness Wide Temp. -30C ~ 80C Rugged Industrial Chassis/Surface mount LCD Monitor, 9-36VDC Input with VGA+DVI Input, with 5 Wires Resistive Touch with USB Controller with Aluminum Housing ***need longer USB bracket***

Inquiry/Quote Request
YCHW1010HB2-TR
  • Overview
  • Specifications
  • Download
The YCHW1010HB2-TR is a rugged 10.1-inch chassis mount LCD monitor engineered for challenging environments requiring high brightness visibility. With its 1000 nits sunlight-readable display, this monitor ensures crisp, clear viewing in direct sunlight, making it ideal for outdoor kiosks, industrial control systems, and vehicle-mounted applications. Designed with a durable metal chassis and resistive touch screen, it offers a reliable user interface and long-term performance even under harsh conditions.


Features:
  • Note: USB with Retention Bracket. No need for HDMI, b/c customer is going to use DVI.
  • Note: No external 110/220 Power supply.
  • Note: No VGA cable and the USB Cable
  • Bigger and stronger DC Green connector.
  • Remove fan
  • Adding Damper on Absorption Mount at the VESA
  • AD board to WT600 Remove Sleep Mode features.
  • Nylok Blue Patch to screw TFT LCD
Panel Type 10.1-inch TFT LCD
Screen Diagonal 10.1-inch
Active Display Area (mm) 216.96(H) x 135.6(V)
Pixel Pitch (um) 0.1695 X 0.1695
Number of Pixels 1280 x 3(RGB) x 800
Contrast Ratio 800: 1
Color Arrangement 262K/16.2M Colors
Brightness (cd/m˛) 1200 cd/m˛
Viewing Angle(Typ.) 85 / 85 / 85 / 85 ( R/L/U/D)
Signal Connector 15 PIN D-Sub,DVI-D,HDMI
Power Source DC+12V (DC Jack) / DC+9~36V (Terminal Block)
Power Management VESA DPMS Compliant
Operating Temperature -30 ~ +80°C
Storage Temperature -30 ~ +80°C
Plug & Play VESA DDC 1/2B
Touch Type 5W-Resistive Touch Screen (USB Type A Interface)
-Transparency > 80% (typ.)
-Hardness of surface 3H
-Linearity ±1.5%(max.)
