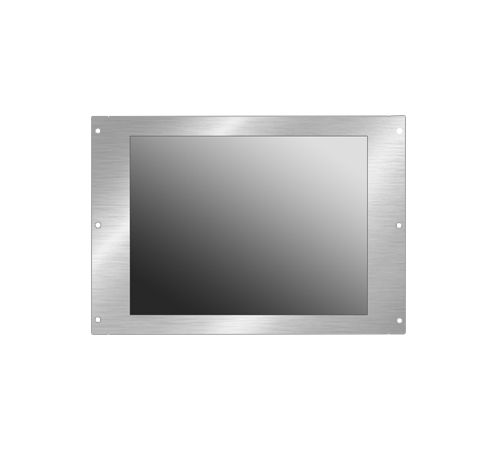

10.4" 1500nits Stainless-Steel Front Bezel Front IP67 LCD Monitor w/ VGA, DVI, HDMI (Model: YSPM1040HB2)

Stainless-Steel front bezel / Front IP67 / 10.4" / 1024 x 768 / 1500nits LED / 3000:1 / VGA + DVI + HDMI input / 2mm AR coating Glass / External Auto Dimming Sensor / 12 Watts

Stainless-Steel front bezel / Front IP67 / 10.4" / 1024 x 768 / 1500nits LED / 3000:1 / VGA + DVI + HDMI input / 2mm AR coating Glass / External Auto Dimming Sensor / 12 Watts

Inquiry/Quote Request
YSPM1040HB2
  • Overview
  • Specifications
  • Download
The YSPM1040HB2 is a rugged 10-inch LCD monitor designed for demanding industrial and outdoor environments. Built with a stainless steel front bezel and IP67-rated front panel, this display is resistant to water, dust, and corrosion—making it ideal for food processing, marine, and washdown applications. Featuring 1500 nits high brightness, 1024 x 768 resolution, and multi-interface support (HDMI, DVI, VGA), the YSPM1040HB2 ensures superior visibility and flexible integration in various operational settings.


Features:
  • 10.4-inch TFT LCD with 1024 x 768 resolution
  • Ultra high brightness: 1500 nits LED backlight for excellent sunlight readability
  • High contrast ratio: 3000:1 for crisp, vivid visuals
  • Stainless steel front bezel for corrosion resistance and durability
  • Front panel IP67-rated: Dustproof and water-resistant for harsh environments
  • Multiple video inputs: VGA, DVI, and HDMI for versatile connectivity
  • 2mm AR-coated glass: Anti-reflective protection improves visibility and screen durability
  • External ambient light sensor: Auto-dimming functionality for energy efficiency and optimal brightness adjustment
  • Low power consumption: Only 12 Watts for efficient operation
Panel Type 10.4-inch TFT LCD
Screen Diagonal 10.4-inch
Active Display Area (mm) 210.4 (H) x 157.8 (V)
Pixel Pitch (mm) 0.2055 x 0.2055
Number of Pixels 1024 x 3(RGB)x768
Contrast Ratio 3000:1
Display Color 16.2M / 262K colors
Brightness (cd/m) 1500nits
Viewing Angle(Typ.) 89 / 89 / 89 / 89 ( R/L/U/D)
Signal Connector VGA, DVI, HDMI
Power Source DC +12V(+/-10%)
Power Management VESA DPMS Compliant
Operating Temperature 0 ~ +50°C
Plug & Play VESA DDC 1/2B
IP Code IP67 (Front Side)
