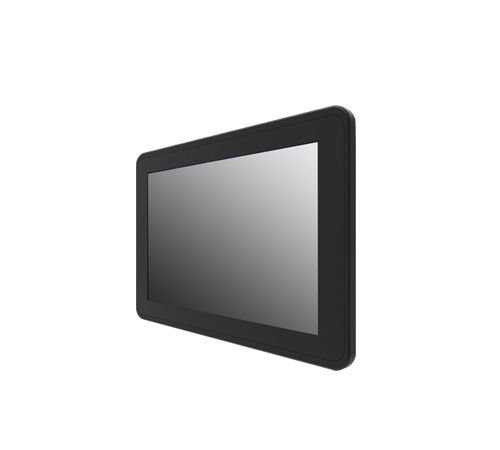

10.1" 1280x800, 350nits PCAP Multi Touch Panel Mount Display w/ VGA, HDMI, 12V DC input (Model: CPMW1010-PCAP)

10.1" Panel Mount Display with 1280x800 Resolution 350 nits Brightness, PCAP multi-touch Screen, 12V DC input, VESA/Panel mount Support and I/O Ports: 1x VGA, 1x HDMI, 1x USB for Touch.

10.1" Panel Mount Display with 1280x800 Resolution 350 nits Brightness, PCAP multi-touch Screen, 12V DC input, VESA/Panel mount Support and I/O Ports: 1x VGA, 1x HDMI, 1x USB for Touch.

Inquiry/Quote Request
CPMW1010-PCAP
  • Overview
  • Specifications
  • Download
The CPMW1010-PCAP is a compact yet powerful 10.1-inch multi-touch panel mount display, purpose-built for industrial and commercial environments. Equipped with a projected capacitive (PCAP) touchscreen, this monitor offers precise multi-touch responsiveness and a sleek, modern front bezel for clean panel integration. Whether used in automation systems, control panels, or kiosks, the CPMW1010-PCAP delivers reliable performance, crystal-clear visuals, and rugged durability for demanding applications.


Features:
  • 10.1" WXGA Display – 1280 x 800 resolution for sharp image clarity
  • 350 nits Brightness – Ideal for indoor industrial applications
  • PCAP Multi-Touch Screen – Smooth and responsive capacitive touch interface
  • 12V DC Input – Reliable power connection for versatile setups
  • Flexible Mounting Options – Supports both VESA and panel mounting
  • Versatile I/O Connectivity: 1 x VGA, 1 x HDMI,1 x USB (for touch interface)
Display
Resolution 1280x800 Size 10.1 inches
Contrast Ratio 800:1 Panel Brightness 350.0 nits
View Angles 85,85,85,85 Active Area 216.96x135.6 mm
Touch / Glass Projected Capacitive Multi Touch Screen Display Color 16.7M Colors
Mechanical
Dimension 267 x 182 x 56.5 mm Mounting VESA Mount/ Panel Mount
Enclosure Metal Housing with Aluminum Bezel Cooling System Fanless Design
Cut out 245 x 160 mm
Environment
Operating Humidity 10% to 95% RH Operating Temperature 0~50°C
Storage Temperature -10° C~60°C IP rating Front IP65
IO Ports
USB Port 1 x USB for Touch Screen Video 1 x VGA
1 x HDMI
1 x DVI (Optional)
Audio Audio line in (3.5mm) (Optional)
2 x Speaker (Optional)

Certification
Certification CE, FCC
Accessories
Accessories 1 x VGA cable
1 x HDMI cable
100~240V AC to DC Adapter
Power Cord
Manual
VESA screws(Varies by product) 		Optional Accessories Remote Controller (Optional,Varies by product)
Power
Power Rating 12V DC in
24V DC in (optional)
Control
Button 5 Keys: , + , Power , Esc , Enter
