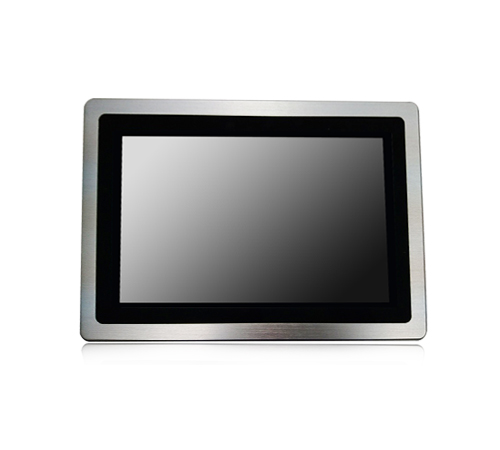

10.1" 1000nits Front IP66 Panel Mount True Flat Bezel PCAP Touch w/ USB, VGA, DVI & HDMI (Model: LPMW1010HB-TCY)

10.1" 1000nits Front IP66 Panel Mount True Flat Bezel PCAP 10-points Touch with USB Controller, VGA, DVI & HDMI

10.1" 1000nits Front IP66 Panel Mount True Flat Bezel PCAP 10-points Touch with USB Controller, VGA, DVI & HDMI

Inquiry/Quote Request
LPMW1010HB-TCY
  • Overview
  • Specifications
  • Download
The LPMW1010HB-TCY is a rugged 10.1-inch industrial panel mount touchscreen monitor engineered for demanding industrial, transportation, marine, and outdoor applications. Featuring a 1000-nit high-brightness LCD for excellent sunlight readability, an IP66-rated true-flat front bezel, and 10-point PCAP capacitive touch technology, it delivers reliable performance in harsh operating environments. With VGA, DVI, and HDMI inputs, flexible panel and VESA mounting options, and an ultra-wide operating/storage temperature range of -30°C to +85°C, it is an ideal solution for industrial automation, HMI, kiosks, and mission-critical display applications.


Features:
  • 10.1" Industrial Panel Mount Monitor
  • 1280 x 800 WXGA Resolution
  • 1000 nits High-Brightness LCD
  • IP66 Front True-Flat Bezel
  • 10-Point PCAP Touchscreen with USB Touch Controller
  • VGA, DVI & HDMI Video Inputs
  • Panel Mount & VESA Mount Compatible
  • Wide Operating/Storage Temperature: -30°C to +85°C
  • Rugged Industrial Design for Harsh Environments
Panel Type 10.1-inch TFT LCD
Screen Diagonal 10.1-inch
Active Display Area (mm) 216.96(H) x 135.6(V)
Pixel Pitch (mm) 0.1695 X 0.1695
Number of Pixels 1280 x 3(RGB) x 800
Contrast Ratio 800:1
Color Arrangement R.G.B. Vertical Stripe
Brightness (cd/m˛) 1000 cd/m˛
Viewing Angle(Typ.) 85/85/85/85 (R/L/U/D)
Signal Connector VGA + DVI + HDMI
Power Source DC12V(+/-10%)
Power Management VESA DPMS Compliant
Operating Temperature -30 ~ 85°C
Storage Temperature -30 ~ 85°C
Plug & Play VESA DDC 1/2B
Touch Type Projected Capacitive Touch
Transparency 90%(typ).
Hardness of surface 7H
Linearity ±1.5%(max).
