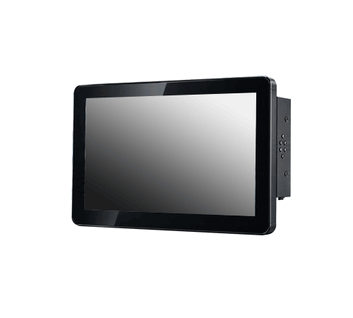

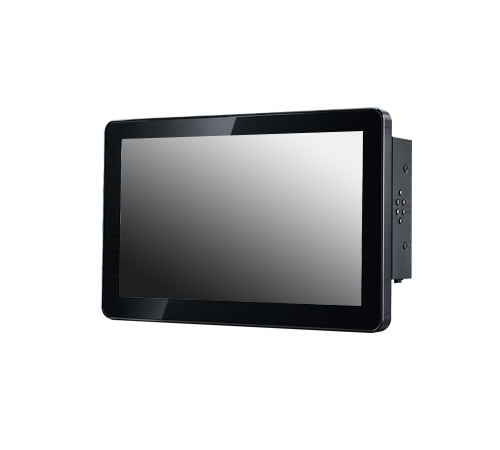

10.1" Front IP65 Zero Bezel True Flat LCD w/ VGA, HDMI, PCAP Touch and 12VDC external 100-240VAC (Model: LPMW1010-TC)

10.1" Front IP65 Zero Bezel Chassis True Flat Design LCD with VGA, HDMI, PCAP Touch and 12VDC with external 100-240VAC power adapter

10.1" Front IP65 Zero Bezel Chassis True Flat Design LCD with VGA, HDMI, PCAP Touch and 12VDC with external 100-240VAC power adapter

Inquiry/Quote Request
LPMW1010-TC
  • Overview
  • Specifications
  • Download
The LPMW1010-TC 10.1" Front IP65 Zero-Bezel True Flat LCD Monitor is designed for industrial and commercial applications that require a compact display with a modern, easy-to-maintain design. Its zero-bezel, true flat front surface provides a seamless appearance, making it suitable for integration into equipment panels, control systems, kiosks, and embedded applications.

Featuring a 10.1-inch widescreen display with 1280 x 800 resolution, the monitor delivers clear visuals in a compact form factor. Its front IP65-rated protection helps guard against dust and water ingress from the front, making it suitable for environments where cleanliness and resistance to environmental exposure are important.

The chassis design supports flexible system integration, while the flat front surface simplifies cleaning and routine maintenance. The LPMW1010-TC is an excellent display solution for industrial automation, machine control, embedded systems, self-service terminals, and commercial equipment requiring a compact, durable, and professional-looking LCD monitor.



Features:
  • 10." industrial panel / 1280 x 800 / 400nits
  • Contrast : 1300 : 1
  • Zero bezel chassis design / VESA mount
  • P-CAP Touch with True Flat design / Front IP65 / Rear IP54 except the I/O
  • Speakers
  • Rear : black powder coating
  • I/O : VGA, HDMI, AV, USB ( for Touch use ) and 12VDC with external 100-240VAC power adapter
DISPLAY Viewing Size Image 10.1"
Active Display Area (mm) 216.96 (H) x 135.6(V)
Pixel Pitch (mm) 0.1695(H)x0.1695(V)
Resolution 1280 x 800
Contrast Ratio 1300 : 1(typ)
Color 262K (RGB 6 Bit) 16.2M
Viewing Angle -85~85 (H) ; -85~85 (V)
Brightness 400 cd/m2
Recommended Resolution 1280 x 800@ 60Hz
Input / Output VGA, HDMI, AV, USB ( for Touch use )
POWER Source 12VDC with external 100-240VAC power adapter
Consumption 10W typical, normal operation
Management VESA DPMS Compliant
