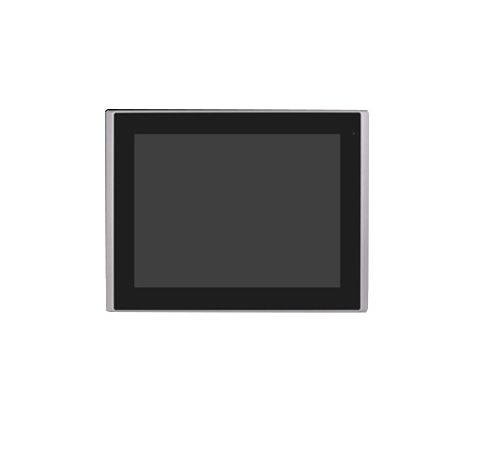

10.1" Fanless HMI Barebone Panel PC w/ Intel Core i3, 8GB DDR4, PCAP Touch, M.2/128G, 9~36VDC w/ Adapter (Model: APCW1010-PCAP-V2)

10.1" WXGA fanless HMI barebone with Intel 11th Gen. Core i3-1115G4E, 2x DDR4 slot, 1x M.2 2280 SATA slot, 1x M.2 E key slot, Projected Capacitive touch, 9~36VDC input with adapter, Aluminum chassis.

10.1" WXGA fanless HMI barebone with Intel 11th Gen. Core i3-1115G4E, 2x DDR4 slot, 1x M.2 2280 SATA slot, 1x M.2 E key slot, Projected Capacitive touch, 9~36VDC input with adapter, Aluminum chassis.

Inquiry/Quote Request
APCW1010-PCAP-V2
  • Overview
  • Specifications
  • Download
Introducing the iTech APCW1010-PCAP V2 — a compact, high-performance 10.1" fanless bare‐bone panel PC designed for demanding industrial HMI and automation applications. Built with an 11th-generation Intel Core i3 processor, it offers wide input voltage support (9-36 VDC), projected-capacitive (PCAP) touchscreen, IP66 front bezel protection, and abundant I/O and expansion options. With its rugged aluminium chassis and silent fanless design, the APCW1010-PCAP V2 is ideal for space-constrained control panels, kiosks, machine-vision stations, and 24/7 industrial environments.


Features:
  • 10.1" Industrial Compact Size Panel PC
  • 11th Gen. Intel Core i3 Processor
  • RAM: 8GB DDR4 3200 SO-DIMM
  • Storage: M.2/128G/3D TLC/SATA3/2280/B Key/-20~75 DEGREE
  • Flat Front Panel Touch Screen with IP66 Front Bezel
  • Fanless Design
  • DC 9~36V Wide-Ranging Power Input
  • Support Expansion via Full-size Mini-PCIe and M.2 slots
  • Support TPM 2.0 hardware security
  • 1x COM RS-232, 2x USB2.0, 1x Power Button comes with a 60W power adapter, as its power consumption is around 50W.
System
CPU 11th Gen. Intel Core i3-1115G4E (Dual Core, 6 MB cache, 2.20 GHz)
System Chipset SoC
Memory 8GB DDR4 3200 SO-DIMM
I/O Port
USB 4 x USB 3.0 type A
Serial 1 x DB-9 connector, including:
* 1 x RS-232(RTS, Rx, Tx, CTS), pin1 RTS/5V/12V selectable via jumper (COM1)
* 1 x RS-232(Tx, Rx)/422/485(COM2) by Y Cable
Audio 1 x Line-out
LAN 1 x 1GbE, 1 x 2.5GbE LAN RJ-45
DP 1 x DP / HDMI
Power 1 x 3-pin Terminal Block Connector
1 x 2-pin Power Switch Connector
Option 4G LTE
Wi-Fi + Bluetooth
4 x USB 2.0 type A (TB-528U4)
4 x USB 2.0 type A + 1 x Mini-PCIe + 1 x SIM slot (TB-528U4ME1)
1 x COM (RS-232) + 2 x USB 2.0 (TB-528C1U2)
1 x COM (RS-232) + 2 x USB 2.0 + 1 x Power Button (TB-528C1U2P1)
2 x COM (RS-232) (TB-528C2)
2 x COM (RS-232) + 1 x Mini-PCIe slot + 1 x SIM slot (TB-528C2ME1)
2 x COM (RS-422/485, isolated) (TB-528C2I)
2 x CAN (TB-528CAN2)
1 x LAN + 2 x USB 2.0 (TB-528E1U2)
1 x LAN(45W isolated PoE PD) + 2 x USB 2.0 type A (TB528E1U2UPOE)*
1 x Backup Battery
(TB-528 Series or backup battery only be inserted in either one)
Either high brightness panel or backup battery can be installed in HMI
Storage Space
Storage M.2/128G/3D TLC/SATA3/2280/B Key/-20~75 DEGREE
Expansion
Onboard Expansion Bus 1 x Mini-PCIe slot (full size)
1 x M.2 E-key for Wi-Fi/Bluetooth Module
1 x Nano SIM slot
Display Standard
Display Type 10.1" TFT-LCD
Max. Resolution 1280 x 800
Max. Color 16.7M
Luminance (cd/m2) 350
View Angle 170(H)/170(V)
Contrast 800:1
Backlight Lifetime 30,000 hrs

Touch Screen
Type Projected Capacitive Touch
Interface USB
Light Transmission(%) 90%
Power
Power Input DC 9~36V
Power Consumption 50W
Mechanical
Construction Aluminum Die-casting Chassis
Mounting Panel Mount, VESA 100 x 100
Dimensions (WxHxD) 269 x 189 x 51 mm
IP Rating IP66 Compliant Front Bezel
Net Weight 1.87 kg
Environmental
Operating Temperature 0~50˚C
Storage Temperature -30~70˚C
Humidity 10 to 95%@ 40˚C, non-condensing
Certifcate CE/FCC Class A/UL
Operating Support
Windows 10 IoT, Windows 11 IoT
