10.4" Chassis Mount Stainless Steel Full IP66 / Rear OSD w/ VGA, BNC Female (I/P) (O/P), 100-240VAC (Model: ECH1040XC-SIP-BNC-O)

10.4" 1024x768 Chassis Mount Industrial Panel Stainless Steel 304 Enclosures with Full IP66 / Wall mount AR Glass / Rear OSD Design with VGA, BNC Female (I/P), BNC Female (O/P) and 100-240VAC Power Cord

10.4" 1024x768 Chassis Mount Industrial Panel Stainless Steel 304 Enclosures with Full IP66 / Wall mount AR Glass / Rear OSD Design with VGA, BNC Female (I/P), BNC Female (O/P) and 100-240VAC Power Cord

Inquiry/Quote Request
ECH1040XC-SIP-BNC-
  • Overview
  • Specifications
  • Download

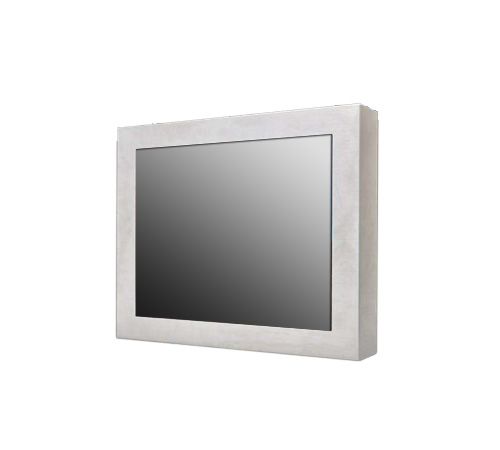

The 10-Inch Chassis Mount Stainless Steel Full IP66 LCD Monitor (Model: ECH1040XC-SIP-BNC-O) from iTech is designed for industrial and outdoor environments that require durable, waterproof, and corrosion-resistant displays. Built with a stainless steel enclosure and full IP66-rated protection, this monitor ensures reliable performance against dust, water, and harsh conditions. Ideal for food processing, marine, and industrial automation applications, it delivers superior image quality and long-lasting dependability.


Features:
  • 10.4" Industrial Panel / 1024x768 / 350nits
  • Stainless Steel 304 Enclosures with Full IP66 / Wall mount
  • AR Glass / Rear OSD Design
  • I/O ( all connectors are IP67 waterproof connectors / 6ft long ) : VGA, BNC female ( I/P ), BNC female ( O/P ) and 12VDC Power Adapter
Display Viewing Size Image 10.4"
Active Display Area (mm) 213 (H) x 159.50 (V)
Pixel Pitch (mm) 0.2055 (H) x 0.2055(V)
Resolution 1024 x 768
Contrast Ratio 1400 : 1 (typ.)
Color 16.7M(8 bits/colors)
Brightness 350nits
Viewing Angle -89~89(H) ; -89~89 (V)
 Recommended Resolution 1024 x 768 @ 60H, 75Hz
Signal Connector VGA, BNC Female ( I/P ), BNC female (O/P)

Power Source 12VDC Power Adapter
Consumption 6.0W typical, normal operation
Management VESA DPMS Compliant
