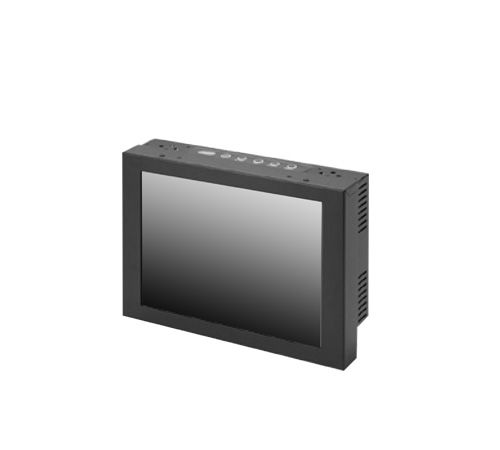

10.4" Chassis Mount LCD Monitor w/ VGA+HDMI, 5 Wire Resistive Touch, 12VDC-IN with Adapter (Model: ECH1040H-TR)

Chassis Mounting, 10.4" LCD monitor, 800 x 600, 350 nits VGA+HDMI Input with 5 Wire Resistive Touch Screen and USB Controller Black Color, 12VDC-IN with Adapter, Power Cable: America

Chassis Mounting, 10.4" LCD monitor, 800 x 600, 350 nits VGA+HDMI Input with 5 Wire Resistive Touch Screen and USB Controller Black Color, 12VDC-IN with Adapter, Power Cable: America

Inquiry/Quote Request
ECH1040H-TR
  • Overview
  • Specifications
  • Download
Welcome to iTech's 10.4-inch Chassis Mount LCD Monitor (Model: ECH1040H-TR), your dependable solution for rugged industrial applications. Boasting a vibrant 800 x 600 resolution LCD with 350 nits brightness and an optional auto-brightness sensor, this monitor delivers clear visuals in challenging lighting conditions. Designed for seamless integration, it offers standard VGA connectivity and supports AV, SV, and AV-looping interfaces. With customizable OEM design options and a robust chassis form factor, the ECH1040H-TR combines flexibility, durability, and performance for mission-critical environments.


Features:
  • Enhanced by a modular mechanical design, offers adaptable configuration options and simplified maintenance procedures.
  • It features a built-in touchscreen for interactive applications
  • Equipped with an auto-brightness sensor, making it suitable for both day and night usage scenarios.
  • With a VGA connector and optional AV, SV, and AV-Looping capabilities, it ensures versatile connectivity.
  • Custom design and solutions tailored to the specific requirements of OEM customers.
Cell Type TFT LCD
Glass Surface Black Anti-Glare, low reflection coating
Aspect Ratio 4:3
Size 10.4" viewable diagonal area
Active Area 211.2(H) x 158.4(V) mm
Pixel Pitch 0.264(H) x 0.264(V) mm
Native Resolution 800(H) x 600(V)
Colors 262K
Brightness 350
Contrast 600 : 1
Response Time ≤ 35 ms
Viewing Angle (typical) H. 140°(- 70°~ + 70°) , V. 120°(- 60°~ + 60°)
Light Source LED backlight, Long life, 35,000 hrs (typ)

CERTIFICATION
FCC , CE
INPUT TERMINALS
1x VGA (15 Pin Female D-Sub) , 1x HDMI, 1x PC Audio (Stereo Headphone Jack), 1x DC Power Plug
CONVENIENT FEATURES
Auto Calibration , Back Light Adjustment , Plug&Play (VESA DDC/CI, DDC 2B) , OSD Multi-Languages , Wall Mount Ready (VESA Dimension - please refer to Drawing)
POWER
12VDC-IN w/ Adapter
POWER CONSUMPTION
Operation / Power Saving 9.375 watt , < 2 watt (Support DPMS)
OPERATING CONDITION
Temperature / Humidity 0°C ~ 50°C (32°F ~ 122°F) , 10% ~ 90% (no condensation)
STORAGE CONDITION
Temperature / Humidity -20°C ~ 60°C (-32°F ~ 122°F) , 10% ~ 90% (no condensation)
DIMENSIONS
Physical
Carton W x H x D = TBD
WEIGHT
N.W. / G.W. 3.4 Kgs/ 4.4 Kgs
CONTAINER LOADED
20ft / 40ft / 40ft HQ TBD (Sets , By pallet)

TOUCH VIDEO INPUT ENHANCED PANEL POWER OTHERS
Resistive Touch AV-IN High Brightness Panel 24V DC-IN Motion Sensor
Projected Capacitive Touch AV Looping Sunlight Readable 9~36V DC-IN Light Sensor
Infrared Touch HDMI / DP Wide Viewing Angle 48V 72V DC-IN VR-knob Dimming
Protected Glass HD-SDI Wide Temperature 90V 125V DC-IN RS232 Remote On/Off
Optical Bonding   UV Film 110V 220V DC-IN Military Connector: MIL 38999
    Anti-Vandal   Metal Connector: M12 / M16
        Stainless 316 Enclosure
