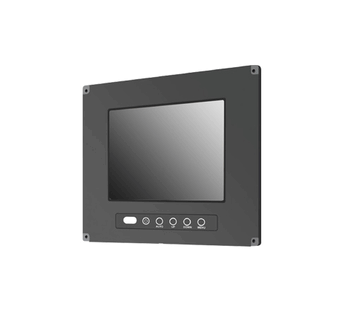

10.4" Marine Flush Mount LCD Monitor, 800x600, LED-350nits, VGA, IP65 Front (Model: EFM1040V2)

Marine Flush Mount, 10.4" LCD Monitor, 800x600, LED-350nits, VGA, IP65 Front, IP54 Back, w/o Stand & Speake

Marine Flush Mount, 10.4" LCD Monitor, 800x600, LED-350nits, VGA, IP65 Front, IP54 Back, w/o Stand & Speake

Inquiry/Quote Request
EFM1040V2
  • Overview
  • Specifications
  • Download

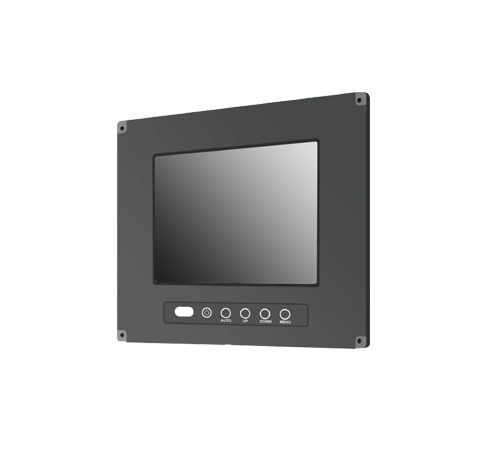

The iTech EFM1040V2 is a 10.4-inch marine flush mount LCD monitor engineered for reliable performance in demanding marine and industrial environments. Featuring an 800 x 600 (SVGA) LED display with 350 nits brightness, it delivers clear and stable image quality for navigation, monitoring, and control applications.

Designed with an IP65-rated front bezel and IP54-rated rear enclosure, the EFM1040V2 provides dependable protection against water, dust, and harsh operating conditions. Its compact flush-mount design integrates seamlessly into marine bridge consoles, vessel control systems, and industrial operator panels while maintaining a professional appearance.

Supporting VGA video input, wide DC power input or optional AC power, and optional ECDIS color calibration compliant with IEC 61174, the EFM1040V2 is an ideal display solution for marine navigation, offshore platforms, ship automation, and other mission-critical applications. Custom OEM configurations are also available to meet specialized project requirements.


Features:
  • Powder-Coated Housing with IP65-Rated Front and IP54-Rated Rear
  • Optional ECDIS Color Calibration compliant with IEC 61174, supporting Day, Dusk, and Night display modes
  • Wide 9-36VDC Isolated Power Input with built-in DC-DC regulator, or optional 90-260VAC (50/60Hz) Auto-Sensing power supply
  • Custom OEM Design and Integration Solutions
  • Conformal Coating for enhanced protection against moisture, dust, and corrosion
  • Enhanced Shock and Vibration Resistance for demanding industrial and marine environments
Cell Type TFT LCD
Glass Surface Black Anti-Glare, low reflection coating
Aspect Ratio 4:3
Size 10.4" viewable diagonal area
Active Area 211.2(H) x 158.4(V) mm
Pixel Pitch 0.264(H) x 0.264(V) mm
Native Resolution 800(H) x 600(V)
Colors 262K
Brightness 350
Contrast 600:1
Response Time ≤ 35 ms
Viewing Angle (typical) H. 140°(- 70°~ + 70°) , V. 120°(- 60°~ + 60°)
Light Source LED backlight, Long life, 35,000 hrs (typ)

CERTIFICATION
FCC , CE
INPUT TERMINALS
1 x VGA (15 Pin Female D-Sub) , HDMI, 2xUSB(USB-A peripherals Mouse, Keyboard), 1xUSB(touch)
CONVENIENT FEATURES
Auto Calibration , Back Light Adjustment , Plug&Play (VESA DDC/CI, DDC 2B) , OSD Multi-Languages , Wall Mount Ready (VESA Dimension - please refer to Drawing)
POWER
12VDC-IN with external power adapter
POWER CONSUMPTION
Operation / Power Saving 9.375 watt , < 1 watt (Support DPMS)
OPERATING CONDITION
Temperature / Humidity 0°C ~ 50°C (32°F ~ 122°F) , 10% ~ 90% (no condensation)
STORAGE CONDITION
Temperature / Humidity -20°C ~ 60°C (-4°F ~ 140°F)  , 10%~ 90% (no condensation)
DIMENSIONS
Physical
Carton W x H x D = TBD
WEIGHT
N.W. / G.W. 3.5 Kgs/4.5 Kgs
CONTAINER LOADED
20ft / 40ft / 40ft HQ TBD (Sets , By pallet)
