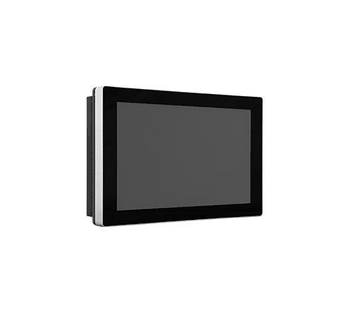

10.1" Bezel-Free P-cap Panel PC, Skylake-U i5-6300U, DC 9~36V, IP65 Front Bezel, 500nits, Wide Temp -20~60°C (Model: EGAW1010-i5-V1)

10.1" (1280*800) Bezel-Free P-cap Panel PC, Skylake-U i5-6300U, DC 9~36V, IP65 Aluminum Front Bezel ,CFast socket,1280*800. Brightness 500nits, Viewing 85/85/85/86 Wide Temp -20~60°C No Memory, Storage and OS. Est. Shipping Weight and Dimensions:44.4*19.2*43.5cm 7.4KG/pc

10.1" (1280*800) Bezel-Free P-cap Panel PC, Skylake-U i5-6300U, DC 9~36V, IP65 Aluminum Front Bezel ,CFast socket,1280*800. Brightness 500nits, Viewing 85/85/85/86 Wide Temp -20~60°C No Memory, Storage and OS. Est. Shipping Weight and Dimensions:44.4*19.2*43.5cm 7.4KG/pc

Main Feature

    • Intel Core i5-6300U
    • IP65 / 66 Front Panel
    • Fanless Design
    • 3-Pin Power Input Terminal Block
    • DC 9~36V Wide Range Power Input
Inquiry/Quote Request
EGAW1010-i5-V1
  • Specifications
  • Download
SYSTEM
Processor Skylake-U i5-6300U
System Memory DDR4 2133 MHz SO-DIMM, up to 16 GB
External I/O Port 4 x USB 3.0
2 x GbE LAN (I210-AT & I219LM, AMT 11.x supported)
1 x Display Port
1 x HDMI
2 x RS-232
1 x RS-232/422/485(COM1)
1 x Audio
1 x Power press button
1 x 3-Pin Power Input
Storage 2 x SATA3 (6.0Gb/s)
1 x mSATA (full size mini-PCIe)
Operating System 6th Gen CPU for Win 7 Pro/ WES7 / Win 8 / Win 10
7th Gen CPU for Win 10
Expansion 2 x MiniPCIe Slot

LCD
Display Type Max. 10.1" TFT LCD
Resolution 1280*800
Max. Color 16.1M
Luminance 500 nits
View Angle 85/85/85/85
Backlight Lifetime 30,000 hours

POWER REQUIREMENT
Power Input 3-Pin Power Input Terminal Block
  DC 9~36V Wide Range Power Input

TOUCH SCREEN
Type 10.1" P-cap USB

ENVIRONMENT
Operating Temp -20~60 °C ' IEC-60068-2-1/2/14
Storage Temp -30~70 °C
Humidity 10~90% @40 °C, non-condensing
EMC FCC / CE Class A Certification CE Class B Compliant
Vibration 1.5 Grms @10~500Hz, IEC-60068-2-64

MECHANICAL
Construction Aluminum Front Bezel and Metal Case
IP Rating Front Panel IP65 / IP66 Compliant
Mounting VESA / Panel Mount
Dimension TBC
