The light weight Rackmount LCD Drawer on Planet with Aluminium Chassis
17.6 lbs for 15" LCD / 18.7lbs for 17" LCD |
|
| |
|
|
|  | | 1U 17" Rackmount LCD Mac/Apply/Macintosh USB Keyboard Drawer with 4-ports DVI-D KVM with Built-in Speaker(Model: DMac1174) | | |  | | 1U 17" Rackmount LCD Mac/Apply/Macintosh USB Keyboard Drawer with DVI, VGA, USB Keyboard and Speakers(Model: DMac117) | | |  | | 1U Rackmount Monitor 15" LCD Light Weight Drawer (Model:BHK115Le)
• Light Weight Aluminum Chassis (17.6 lbs) • UL Listed, CE, FCC
RoHS Approved
• Support DOS, Windows OS, Netware, SCO Unix, HP Unix, Linux
• LCD Auto Shut off (Micro-Switch) in closed position
• Anti-Glare Tempered Glass for added protection
• Optional Touch Screen  more | | |  | | 1U Rackmount Monitor 15" LCD Light Weight Drawer with 8-ports KVM (Model:BHK115Le)
• Light Weight Aluminum Chassis (17.6 lbs) • UL Listed, CE, FCC
RoHS Approved
• Support DOS, Windows OS, Netware, SCO Unix, HP Unix, Linux
• LCD Auto Shut off (Micro-Switch) in closed position
• Anti-Glare Tempered Glass for added protection
• Optional Touch Screen more | | |  | | 1U Rackmount Monitor 17" LCD Light Weight Drawer (Model:BHK117Le)
• Light Weight Aluminum Chassis (18.7 lbs) • UL Listed, CE, FCC
RoHS Approved
• Support DOS, Windows OS, Netware, SCO Unix, HP Unix, Linux
• LCD Auto Shut off (Micro-Switch) in closed position
• Anti-Glare Tempered Glass for added protection
• Optional Touch Screen more | | |  | | 1U Rackmount Monitor 17" LCD Light Weight Drawer with 8-ports KVM (Model:BHK117-8Le)
• Light Weight Aluminum Chassis (20.9 lbs) • UL Listed, CE, FCC
RoHS Approved
• Support DOS, Windows OS, Netware, SCO Unix, HP Unix, Linux
• LCD Auto Shut off (Micro-Switch) in closed position
• Anti-Glare Tempered Glass for added protection
• Optional Touch Screen more | | |  | | 1U Rackmount Monitor 17กจ LCD Light Weight Drawer with 16-ports KVM (Model:BHK117-16Le)
• Light Weight Aluminum Chassis (23.1 lbs) • UL Listed, CE, FCC
RoHS Approved
• Support DOS, Windows OS, Netware, SCO Unix, HP Unix, Linux
• LCD Auto Shut off (Micro-Switch) in closed position
• Anti-Glare Tempered Glass for added protection
• Optional Touch Screen more |
|
|

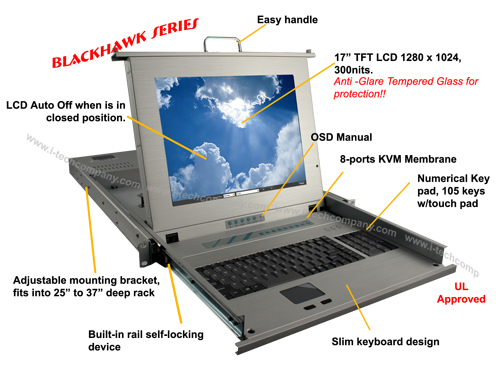

Many System Engineers
has project, such as Testing equipments on airplane or export its system
by international shipment, where weight is one of the major concern. Now
we provide a one of the lightest Rackmount Monitor built with Aluminum
Chassis where it allows 17.6 lbs for 15" LCD and 18.7lbs for
17" Rack LCD KVM switch drawer. It gives Engineers more weight
options for their equally important equipments. Also, this unit is UL
listed ready with FCC and CE approved. This light duty design doesn't
yield on its quality, it still has anti glare tempered glass for
protection and built in locking latches for locking the drawer in fixed
positions while is in operation.
In addition, here are the quick features for BHK Light Weight PS/2 8
or 16 port KVM Switches Drawer in 19" Rackmount design
-
Only
1U (1.75" high) of vertical 19" rack-mount space.
-
1U
Dual Slides allows see LCD through closed cabinet door
-
19"
deep Chassis for LCD 15"/17" without KVM or 23" deep
Chassis for 15"/17" LCD with KVM
-
Light
aluminum frame/Chassis
-
Protective
Anti-glare Glass for more protection for LCD
-
Auto
Shut off when LCD is in park position
-
Laptop-style
tilting display provides for short pull-out and minimal intrusion into
the aisle space in front of the rack.
-
High-brightness
250-nit,TFT LCD Panel and high contrast-ration active TFT LCD flat
panel integrated folding display.
-
15.1"
display supporting 1024 x 768 resolution.
-
Full
101-keys Windows keyboard (including a dedicated numeric keypad), and
an integrated touch-pad pointing device.
-
Industrial-grade
heavy-duty steel construction. with a built-in lock to prevent
unauthorized console access.
-
Smooth-operating
sliding rails that self-lock when pulled all the way out.
-
Build-in
power supply
-
Built-in
thumb screws for securing the unit when folded and pushed all the way
in.
-
Meets
EIA310c & IEC-3 Specifications
-
Add
PCs or Remove Connected PCs for Maintenance without powering down the
KVM switch for PCs
| |
|
