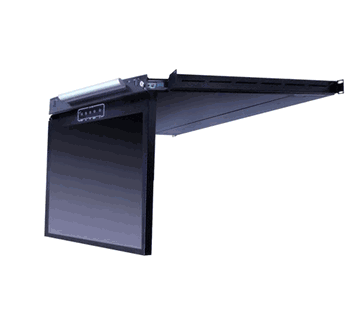

19" 1U Under Mount Rackmount 1280x1024 LCD Monitor Drawer with HDMI + VGA + DVI (Model: ASNP119UM)

19" 1U Under Mount Rackmount 1280x1024 LCD Monitor Drawer with HDMI + VGA + DVI (Model: ASNP119UM)

19" 1U Under Mount Rackmount 1280x1024 LCD Monitor Drawer with HDMI + VGA + DVI (Model: ASNP119UM)

Main Feature

    • 1U Foldable Compact 19 inch rack mountable
    • 19 inch 1280 x 1024 resolution
    • DVI-D, VGA, Audio input
    • Heavy duty steel chassis construction
    • Front osd control buttons to optimized display
    • Build in 2x 2watts stereo speakers
    • Self-Locking and Auto Release rail for ultra convenience
ASNP119UM
  • Overview
  • Specifications
  • Download
  • Contact Sales
  • 1U Foldable Compact 19 inch rack mountable
  • 19 inch 1280 x 1024 resolution
  • DVI-D, VGA, Audio input
  • Heavy duty steel chassis construction
  • Front osd control buttons to optimized display
  • Build in 2x 2watts stereo speakers
  • Self-Locking and Auto Release rail for ultra convenience

Options:

  • Composite video input
  • HDMI or Display port input
  • 3G / HD / SD-SDI broadcast grade input
  • DC 9~36 V power input
  • AR Hardness glass
  • Touch screen
LCD CHARACTERISTICS
Screen Size 19"
Backlight Type LED
Resolution 1280*1024
Contrast Ratio 1000:1
Brightness ( cd/m2 ) 350
View Angles ( H/V ) 170/160
Pixel Size ( HxV ) mm 0.294x0.294
Max. Color 16.7M
MTBF ( Hrs. ) 50,000

INPUT SIGNALS
DVI-D DVI-D 24Pin Connector (Female)
VGA D-SUB 15Pin Connector (Female)
Audio 3.5 Jack
Power Input Standard IEC Inlet
Touch-USB ( option ) USB A Type connector
Touch-RS232 ( option ) D-SUB 9P connector ( Female )

POWER SPECIFICATIONS
AC Power Input Standard IEC Type Power Cord with Internal Power adapter, 100-240V AC Input
Wide Range DC Power Input ( option ) Screw Type Terminal Block with internal wide Range DC 9-36V power module

USER CONTROL INTERFACE
Power ON / OFF via Front Button
Power Mode Status LED indicator
OSD ( On Screen Display ) Buttons

MECHANICAL AND ENVIRONMENT
Height 1U Foldable
Rack Depth 20" to 36" ( cabinet front rail to rear rail )
Mounting Rack Mount with tilt adjustment
Construction Metal Housing
Operating Temperature 0 - 50 deg. C
Operating Humidity 5% - 95% ( non -condensing )
Anti-Vibration 5 - 500 Hz / 1 Grms PTP
Anti-Shock 15G / Peak ( 11 ms )
Physical Dimension (WxHxD) 448*44*550 (mm)
Packing Dimension (WxHxD) 790*190*580 (mm)
Net Weight / Gross Weight 17.5 / 21 (KGs)
Certification and Approvals CE / FCC / RoHs
