1U Rackmount 15" LCD Keyboard w/ Real Mouse (Model:NVP500e)

1U rack mount 15" LCD Monitor (Real Mouse)Keyboard KVM drawer w/ Real Mouse (Model: NVP500e)
  • ISO Side View
  • Rear View
  • Closed

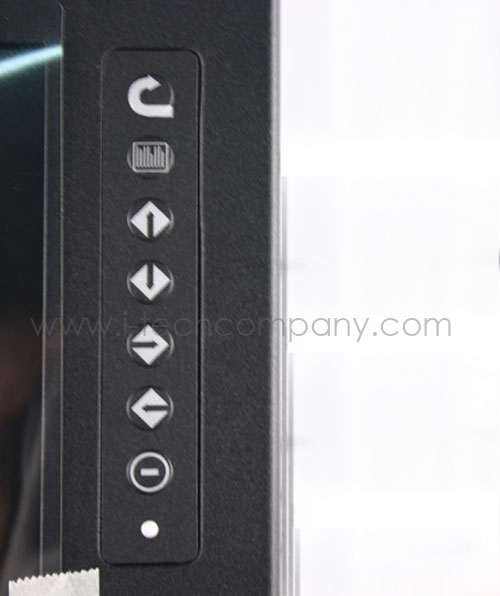

  • OSD
  • Keyboard Closed Up
  • Adapter
  • Real Mouse
  • Side Rail

1U rack mount 15" LCD Monitor (Real Mouse)Keyboard KVM drawer w/ Real Mouse (Model: NVP500e)

NVP500e
  • Overview
  • Specifications
  • Download
Product discontinues.Contact us at Info@iTechLCD.com for Replacement Item.
Part no. NVP500e
Features and Benefits
  • Only 1U (1.75" high) of vertical 19" rack-mount space.
  • 1U Dual Slides allows see LCD through closed cabinet door
  • High-brightness 450-nit,TFT LCD Panel and high contrast-ration active TFT LCD flat panel integrated folding display.
  • 15" display supporting 1024 x 768 resolution.
  • Full 88-keys Windows keyboard (including a dedicated numeric keypad), and an integrated touch-pad pointing device.
  • Industrial-grade heavy-duty steel construction with a built-in lock to prevent unauthorized console access.
  • Built-in thumb screws for securing the unit when folded and pushed all the way in.
  • Adjustable bracket up to from 26" to 34"

Options (Click "OPTION" tab above to customize or Contact us at Info@iTechLCD.com for detail):

Comes with

  • (1) i-Tech NVP Series PS/2 KVM drawer unit
  • (1) 3-in-one KVM cable, 6-feet
  • (2) Rear extension mounting brackets
  • (8) Mounting screws for rear extension mounting brackets
  • (1) US Power cord
  • (1) Power Adapter 110/220V
  • (1) User Manual
Ordering Information
KVM Support
15" LCD series
17" LCD series
1-port
NVP500e NVP700e
1-port
NVP500Ue NVP700Ue

Console
8-port
NVP500e-801 NVP700e-801
16-port
NVP500e-1601 NVP700e-1601
8-port
NVP500e-S801 NVP700e-S801
16-port
NVP500e-S1601 NVP700e-S1601

2 Consoles
Over CAT5
8-port
NV500-82e NV700-82e
16-port
NV500-162e NV700-162e
8-port
NV500-82Ue NV700-82Ue
16-port
NV500-162Ue NV700-162Ue

2 Consoles
Over IP
8-port
NVIP500-82e NVIP700-82e
16-port
NVIP500-162e NVIP700-162e

Specification
LCD
Panel Samsung 15?LCD Panel
Screen Type TFT
Display Area 304.1(H) x 228.1(V) mm
Contrast Ratio 300 : 1
Viewing Angle 130 ° (H) x 110 ° (V) (Typ.)
Resolution 1024 x 768
Pixel pitch 0.297(H) x 0.297(W) mm
Response Time Tr=5ms, Tf=20ms (Typ.)
Brightness 250 cd/m2
Panel Color 16.7M
Back Light 4 CCFTs (Cold Cathode Fluorescent tube)
Video
Horizontal Synchronization 48 - 60 KHz (Typ.)
Vertical Synchronization 60 - 75 Hz (Typ.)
Input Signal Analog RGB 0.7Vp-p
Power Management
VESA DPMS
Control
OSD Control Brightness, Contrast, Colour, Clock, H.Position, V.Position, Phase, Scaling, Auto config, Input select, Multi window, Clear EEPROM, OSD adjust, Save

External Connection

Power Input 12V/5A DC adapter
Video Input 15-pin D-Sub connector
Dimension
Product dimension 44.2(W) x 4.45(H) x 65(D)cm
Packing dimension 60(L) x 84(W) x 18(H)cm
