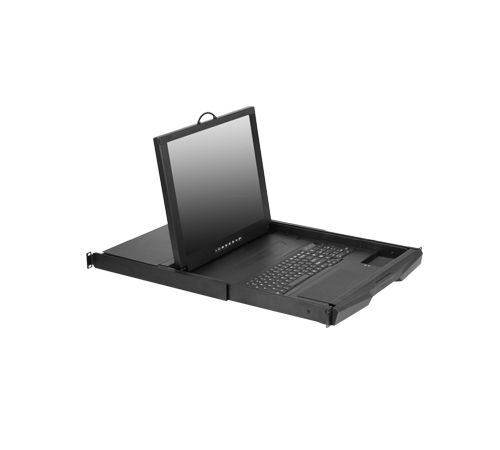

Real Mouse 1U Rack Mount 17"  LCD Monitor keyboard Drawer with Real Mouse (Model: NVP700)

Real Mouse 1U Rack Mount 17" LCD Monitor keyboard Drawer with Real Mouse (Model: NVP700)

Main Feature

    • 1U 17" LCD console drawer
    • 104-key keyboard with a true optical mouse
    • Enhanced aesthetics with molded front handle and two point lock
    • Combo interface either PS/2 or USB for single console drawer
NVP700e
  • Overview
  • Specifications
  • Ordering Information
  • Download
  • Contact Sales

Options

• S-Video + Composite ( BNC )
• HDMI or DVI-D ( either one )
• DC power : 12V / 24V / 48V / 125V / 250V

STRUCTURE DIAGRAM

STANDARD KEYBOARD



Supporting Layouts


KEYBOARD OPTIONS (US layout only)

LCD Panel
Manufacturer AUO
Diagonal size 17" TFT
Max. resolution 1280 x 1024
Brightness (cd/m2) 250
Backlight CCFL
Colors 16.7 M
Contrast Ratio (typ) 1000 : 1
Viewing Angle (H/V) 160 x 160
Active area (mm) 338 x 270
MTBF (hrs) 50,000
Video input VGA
Speaker
( HDMI only ) Built-in Dual Stereo Speakers 2W x 2
Power Input
Auto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption (single console)
Sreen on Max. 25W
Power saving mode Max. 4W
Power button on Max. 1W
Environmental
Operating temperature 0 to 55C degree
Storage temperature -20 to 60C degree
Operating humidity 20~90%, non-condensing
Storage humidity 5 ~90%, non-condensing
Operating altitude 16,000 ft
Non-operating altitude 40,000 ft
Shock 10G acceleration ( 11ms duration )
Vibration 5~500Hz 1G RMS random vibration
Casing Color
Black ( RAL 9005 )
Regulatory
Safety FCC & CE certified
Environmental RoHS2 & REACH compliant
Weight ( single console )
Net 14.3 kgs / 31.5 lbs
Gross 19.1 kgs / 42 lbs
Dimensions ( single console )
Product 442 x 650 x 44 mm / 17.4 x 18.1 x 1.73 inch
Packing 595 x 860 x 140 mm / 23.4 x 33.9 x 5.5 inch

CONSOLE CABLE
NE-6
6 feet Combo KVM cable ( bundle )
- VGA + USB or PS/2, server end
- DB15 ( VGA, USB KB & MS ), console port

Matrix Cat6 KVM Local Remote IP 8-port 16-port 32-port
1 1 1 - NVP700-MC1116 NVP700-MC1132
1 1 2 - NVP700-MC2116 NVP700-MC2132
1 1 0 - NVP700-MC0116 NVP700-MC0132
1 2 0 - NVP700-MC0216 NVP700-MC0232
1 3 0 - NVP700-MC0316 NVP700-MC0332


Combo Cat6 KVM Local Remote IP 8-port 16-port 32-port
1 0 1 NVP700-CIP8 NVP700-CIP16 NVP700-CIP32
1 1 0 NVP700-CCE8 NVP700-CCE16 NVP700-CCE32
1 0 0 NVP700-C8 NVP700-C16 NVP700-C32
Cat6 KVM Dongle : DG-100S ( VGA-USB ) / DG-100 ( VGA-PS/2 ) / DG-100SD ( DVI-USB )


Matrix DB-15 KVM Local Remote IP 8-port 16-port 32-port
1 1 1 NVP700-M118 NVP700-M1116 -
1 1 2 NVP700-M218 NVP700-M2116 -
1 1 0 NVP700-M018 NVP700-M0116 -
1 2 0 NVP700-M028 NVP700-M0216 -
1 3 0 NVP700-M038 NVP700-M0316 -


Combo DB-15 KVM Local Remote IP 8-port 16-port 32-port
1 0 1 NVP700-IP8 NVP700-IP16 -
1 1 0 NVP700-8 NVP700-16 -
1 0 0 NVP700-S801 NVP700-S1601 -
Combo DB-15 KVM Cable : NE-6 / 10 / 15 ( 6, 10 or 15 ft )


DVI-D KVM Local Remote IP 12-port - -
1 0 0 NVP700-12D - -
