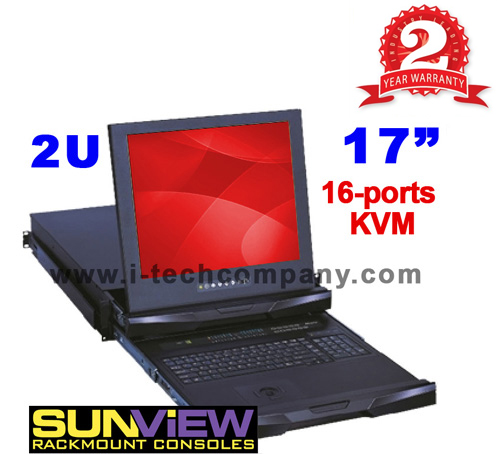

SNK217-16: SunView 2U Sun-Compatible Rackmount 17" LCD Keyboard Drawer w 16-ports USB KVM

SUN Solaris Compatible Keyboard 2U Rackmount 17" LCD  Keyboard Drawer with 16-port USB KVM (SunView: SNK217-16)
  • Front View
  • Front View
  • Side View
  • Side View
  • Side View
  • Back View

SUN Solaris Compatible Keyboard 2U Rackmount 17" LCD Keyboard Drawer with 16-port USB KVM (SunView: SNK217-16)

SNK217-16
  • Specifications
  • Download
Click here for Specification

Specification
LCD
Panel TFT 19" LCD Panel
Display Type TFT
Frequency 60Hz
Contrast Ratio 700 : 1
Viewing Angle 150° (H) x 135° (V)
Resolution 1280 x 1024 (Sync with most SUN Resolution, including 1152 x 900 @ 66 or 76 Hz)
Pixel pitch 0.294(H) x 0.294(W) mm
Response Time Tr=1.7ms, Tf=6.3ms (Typ.)
Brightness 300 cd/m2
Panel Color 16.7M
Storage Temp. -25 - 60°C
Operating Temp. 0 - 50°C
Backlight MTBF 20,000 hours under 20 - 30°C
KVM (SNK117-8/117-16 only)
Computer Connectors 8/16
Connector 15-pin HDB type, Keyboard,mouse, all-in-1
Cascade Level 8 Levels
Max. Access PCs 128
Input VGA Resolution 1920 x 1440
Power Supply
Remote Adapter 110V - 220V AC Input 12V 5A Output
Adapter Size 4.3"(L) x 2.4" (W) x 1.2"(H)
Cable Legnght 6 ft (182cm)
Safety Approval FCC, CE
Diagram

USB Single Console KVM Switch

Back to Top


8-Port
16-port
PC port
8
16
PC Port interface
HDDB 15 pin
N/A
PC Computer Interface USB port: Type A Female USB port: Type A Female
VGA : HDDB 15pin Female VGA : HDDB 15pin Female
KVM Cable Connection 2-in-one HDDB 15-pin KVM Cable
(CB-6/ 10/ 15)
2-in-one HDDB 15-pin KVM Cable
(CB-6/ 10/ 15)
PC Selection
On screen display menu, Hot key, Push button
LED
1 Bank LED
1 Bank LED
8 Online LED (Green)
16 Online LED (Green)
8 Selected LED (Green)
16 Selected LED (Green)
On screen display control
Yes
Scan intervals
5-99 seconds
Keyboard and mouse emulation
USB
VGA resolution (Max.)
1920 x 1440
1920 x 1440
CAT.5 cable length (Max.)
N/A
N/A
Bandwidth
200MHz
200MHz
Cascade Level (Max.)
8 Levels
Housing
Metal
Power Adapter
DC 12V 1A
DC 12V 1A
Operation Temperature
0~40 ℃
Humidity
0~80%, Non-Condensing

USB 2-Console KVM Switch (integrated w/ CAT5 extender)

Back to Top

8-port KVM: Rear I/O view for LCD keyboard drawer
16-port KVM: Rear I/O view for LCD keyboard drawer

Features
2 Consoles 8-Port/16-Port KVM
Local Console
CAT5 Remote Console
PC port
8/16
N/A
Console port
-
-
PC selection
On screen display menu, Hot key, push button
LED
1 bank LED, 8/16 online LED (green), 8/16 selected LED (red)
1 power LED (green), 1 status LED (red)
On screen display console
Yes
Scan intervals
5 to 99 seconds
Keyboard & mouse emulation
USB
VGA resolution (max.)
1920 x 1440
1600 x 1200
CAT5 cable lengh (max.)
N/A
1000 feet
Bandwidth
200MHz
150MHz
Cascade Level (max.)
8 levels
8 levels
PC connection (max.)
120/128
120/128
Housing
Medal
Medal
KVM switch power adapter
DC 12V
DC 9V

Ordering Information
KVM Support
Model no.
Description
Net/gross weight
NIL
2U height, 17" TFT LCD monitor keyboard drawer
14kg/21kg

Console
2U height, 17" TFT LCD monitor keyboard drawer w/ 8 port KVM switch
15kg/23kg
2U height, 17" TFT LCD monitor keyboard drawer w/ 16 port KVM switch
16kg/24kg

Consoles
2U height, 17" TFT LCD monitor keyboard drawer w/ 8 port KVM switch, 2 Consoles over CAT5
15kg/23kg
2U height, 17" TFT LCD monitor keyboard drawer w/ 16 port KVM switch, 2 Consoles over CAT5
16kg/24kg
