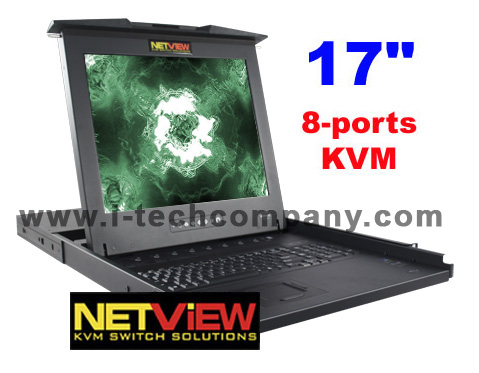

1U Dual Slides Rackmoun 17" LCD Keyboard w/8ports KVM(Model:NVP1017-801e)

Dual Slides 1U Separate Sliding Screen Rackmount 17" LCD Monitor with 8-ports KVM switches(Model: NVP1017-801e)
  • Front View
  • Front View
  • Side View
  • Side View
  • Back View
  • Back View

Dual Slides 1U Separate Sliding Screen Rackmount 17" LCD Monitor with 8-ports KVM switches(Model: NVP1017-801e)

NVP1017-801e
  • Overview
  • Specifications
  • Download
Product discontinues. Call us at 888-483-2418 or click for Replacement Item.

Features and Benefits
  • Only 1U (1.75" high) of vertical 19" rack-mount space.
  • 1U Dual Slides allows see LCD through closed cabinet door
  • Laptop-style tilting display provides for short pull-out and minimal intrusion into the aisle space in front of the rack.
  • High-brightness 300-nit,TFT LCD Panel and high contrast-ration active TFT LCD flat panel integrated folding display.
  • 17" display supporting 1280 x 1024 resolution.
  • Full 88-keys Windows keyboard (including a dedicated numeric keypad), and an integrated touch-pad pointing device.
  • Industrial-grade heavy-duty steel construction with a built-in lock to prevent unauthorized console access.
  • Built-in thumb screws for securing the unit when folded and pushed all the way in.

Options (Click "OPTION" tab above to customize or call 1-888-483-2418 for detail):

KVM Features and Benefits
  • Multi-platform-mix PCs, SUNs, IBMs, HPs, Compaq & DELL
  • Support 8 characters password protection & search PC server name
  • Cascades for use with up to 128 servers
  • New keep alive feature safeguards server for power loss to the switch
  • Built-in microprocessor emulation for each port boots up process
  • Auto scan-mode for monitoring your servers at intervals 5 to 99s
  • Hot-pluggable when adding or removing PC w/o powering down the switch
  • Name you server up to 16 characters long
  • No software needed & all mounting hardware included

Comes with

  • (1) RKP10 Series  KVM drawer unit
  • (8) All-in-one KVM cable, 6-feet
  • (2) Rear extension mounting brackets
  • (8) Mounting screws for rear extension mounting brackets
  • (4) Fasteners
  • (1) US Power cord
  • (1) Power Adapter 110/220V
  • (1) User Manual
Ordering Information
KVM Support
15" LCD series
17" LCD series
1-port
NVP1015 RKP1017
1-port
NVP1015U RKP1017U

Console
8-port
NVP1015-801 NVP1017-801
16-port
NVP1015-1601 RKP1017-1601
8-port
NVP1015-S801 RKP1017-S801
16-port
NVP1015-S1601 RKP1017-S1601

2 Consoles
Over CAT5
8-port
NV1510-82 NV171082
16-port
NV1510162 NV1710162
8-port
NV151082U NV171082U
16-port
NV1510162U NV1710162U

2 Consoles
Over IP
8-port
NVIP151082 NVIP171082
16-port
NVIP1510162 NVIP1710162
Click here for Specification Order Information
Click here to Compare all models

Specification
LCD
Panel Samsung 17”LCD Panel
Screen Type TFT
Display Area 337.92(H) x 270.34(V) mm
Contrast Ratio 500 : 1
Viewing Angle 140 ° (H) x 120 ° (V) (Typ.)
Resolution 1280 x 1024
Pixel pitch 0.264(H) x 0.264(W) mm
Response Time Tr=5ms, Tf=20ms (Typ.)
Brightness 300 cd/m2
Panel Color 16.2M
Back Light 4 CCFTs (Cold Cathode Fluorescent tube)
Video
Horizontal Synchronization 64 - 80 KHz (Max.)
Vertical Synchronization 60 - 75 Hz (Max.)
Input Signal Analog RGB 0.7Vp-p
Power Management
VESA DPMS
Control
OSD Control Brightness, Contrast, Colour, Clock, H.Position, V.Position, Phase, Scaling, Auto config, Input select, Multi window, Clear EEPROM, OSD adjust, Save

External Connection

Power Input 12V/5A DC adapter
Video Input 15-pin D-Sub connector
Dimension
Product dimension 48(W) x 4.45(H) x 65(D)cm
Packing dimension 73.5(L) x 57.5(W) x 18(H)cm
Diagram

PS/2 Single Console KVM Switch

Back to Top

Channel Port 8
16
PC Port Connector
(All Female Type)
PS/2 Keyboard Mini Din 6 pin
PS/2 Mouse Mini Din 6 pin
VGA HDDB 15pin
Cascade Port Connector
(All Female Type)
PS/2 Keyboard Mini Din 6 pin
PS/2 Mouse Mini Din 6 pin
VGA HDDB 15pin
Channel Port Connector
(All Female Type)
HDDB 15 pin
Channel Port Connection
(Male to Male)
HDDB 15 pin 3-in-1 Cable
PC selection On Screen Display Manual, Hot Key, Push Button
LED 1 Bank LED
4 / 8 / 16 Online Port LED (Green)
4 / 8 / 16 Selected Port LED (Red)
On Screen Display Control Yes
Scan Intervals 5~99 Sec.
Keyboard Emulation PS/2
Mouse Emulation PS/2
VGA Resolution 1920X1440
Bandwidth 200MHz
Cascade MAX Level 8 levels
MAX. PC Connection 116(4ports) / 120(8ports) / 128(16ports)
Housing Metal
Power Adapter DC 12V 1A
Operation Temperature 0~40 ℃
Storage Temperature -20 ~ 60 ℃
Humidity 0~80%, Non-Condensing

Ordering Information
KVM Support
15" LCD series
17" LCD series
1-port
RKP1015 RKP1017
1-port
NVP1015U RKP1017U

Console
8-port
NVP1015-801 NVP1017-801
16-port
NVP1015-1601 RKP1017-1601
8-port
NVP1015-S801 RKP1017-S801
16-port
NVP1015-S1601 RKP1017-S1601

2 Consoles
Over CAT5
8-port
NV1510-82 NV171082
16-port
NV1510162 NV1710162
8-port
NV151082U NV171082U
16-port
NV1510162U NV1710162U

2 Consoles
Over IP
8-port
NVIP151082 NVIP171082
16-port
NVIP1510162 NVIP1710162
