Features and Benefits
- Only 1U (1.75" high) of vertical 19" rack-mount space
- Protective Anti-glare Glass for more protection for LCD
- Auto Shut off when LCD is in park position
- Laptop-style tilting display provides for short pull-out and minimal intrusion into the aisle space in front of the rack.
- High-brightness 450-nit,TFT LCD Panel and high contrast-ration active TFT LCD flat panel integrated folding display.
- 17"(16:9) display supporting 1280 x 768 resolution.
- Full 105-keys Windows keyboard (including a dedicated numeric keypad), and an integrated touch-pad pointing device.
- Industrial-grade heavy-duty steel construction
- Smooth-operating sliding rails that self-lock when pulled all the way out.
- Build-in power supply
- Built-in thumb screws for securing the unit when folded and pushed all the way in.
- Meets EIA310c & IEC-3 Specifications
- Add PCs or Remove Connected PCs for Maintenance without powering down the KVM switch for PCs
KVM Features and Benefits
- Multi-platform-mix PCs, SUNs, IBMs, HPs, Compaq & DELL
- Support 8 characters password protection & search PC server name
- Cascades for use with up to 128 servers
- New keep alive feature safeguards server for power loss to the switch
- Built-in microprocessor emulation for each port boots up process
- Auto scan-mode for monitoring your servers at intervals 5 to 99s
- Hot-pluggable when adding or removing PC w/o powering down the switch
- Name you server up to 16 characters long
- No software needed & all mounting hardware included
Comes with
- (1) Blackhawk Widescreen KVM drawer unit
- (8) 3-in-one PS/2 KVM cable, 6-feet
- (2) Rear extension mounting brackets
- (8) Mounting screws for rear extension mounting brackets
- (1) US Power cord
- (1) User Manual
| Specification |
| LCD |
| Panel |
TFT 17? LCD Panel |
| Screen Type |
TFT |
| Frequency |
60Hz |
| Contrast Ratio |
600 : 1 |
| Viewing Angle |
120° (H) x 120 ° (V) |
| Resolution |
1280 x 768 |
| Pixel pitch |
0.264(H) x 0.264(W) mm |
| Response Time |
Tr=5ms, Tf=20ms (Typ.) |
| Brightness |
450 cd/m2 |
| Panel Color |
16.2M |
| Backlight MTBF |
50,000 hours under 20 - 30°C |
| KVM (BHK1017-8e/1017-16e only) |
| Computer Connectors |
8/16 |
| Connector |
15-pin HDB type, Keyboard,mouse, all-in-1 |
| Cascade Level |
8 Levels |
| Max. Access PCs |
128 |
| Input VGA Resolution |
1920 x 1440 |
|
|
| Power Supply |
|
| Built-in Adapter |
110V - 220V AC Input 12V 5A Output |
| Cable Legnght |
6 ft (182cm) |
| Safety Approval |
FCC, CE |
|
|
| Diagram |
|
 |
| PS/2 Single Console KVM Switch |
Back to Top |
|
| Channel Port |
8/16 |

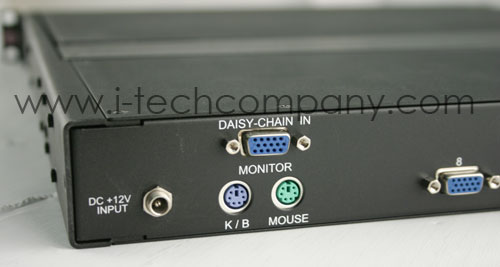

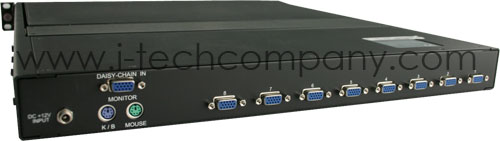

PC Port Connector
(All Female Type) |
PS/2 Keyboard Mini Din 6 pin
PS/2 Mouse Mini Din 6 pin
VGA HDDB 15pin |
Cascade Port Connector
(All Female Type) |
PS/2 Keyboard Mini Din 6 pin
PS/2 Mouse Mini Din 6 pin
VGA HDDB 15pin |
Channel Port Connector
(All Female Type) |
HDDB 15 pin |
Channel Port Connection
(Male to Male) |
HDDB 15 pin 3-in-1 Cable |
| PC selection |
On Screen Display Manual, Hot Key, Push Button |
| LED |
1 Bank LED
4 / 8 / 16 Online Port LED (Green)
4 / 8 / 16 Selected Port LED (Red) |
| On Screen Display Control |
Yes |
| Scan Intervals |
5~~99 Sec. |
| Keyboard Emulation |
PS/2 |
| Mouse Emulation |
PS/2 |
| VGA Resolution |
1920X1440 |
| Bandwidth |
200MHz |
| Cascade MAX Level |
8 levels |
| MAX. PC Connection |
120(8 ports) / 128(16 ports) |
| Housing |
Metal |
| Power Adapter |
DC 12V 1A |
| Operation Temperature |
0~~40 ℃ |
| Storage Temperature |
-20 ~~ 60 ℃ |
| Humidity |
0~~80%, Non-Condensing |
| Ordering Information |
|
| Model no. |
Description |
Net / gross weight |
| BHK117we |
1U height, 17" TFT LCD monitor
keyboard drawer |
11kg / 17kg |
| BKP117-8we |
1U height, 17" TFT LCD monitor keyboard drawer with 8 port KVM switch |
11.5kg / 18kg |
| BKP117-16we
|
1U height, 17" TFT LCD monitor keyboard drawer with 16 port KVM switch |
12kg / 19kg |
In addition to iTech's 1-year standard warranty coverage, iTechCare offers an affordable extended warranty for those desiring additional benefits such as:
- Advanced replacement, and
- Longer warranty period.
iTech Standard Warranty
- Free 1-year warranty covers parts and workmanship
- Telephone and email technical support are available from 9:00 am to 5:00 pm PST, Monday through Friday
- Standard Warranty coverage begins on the date of purchase
iTechCare
- A one-year, or two-year extension to the Standard Warranty coverage, PLUS
- Advanced equipment replacement (to replace a malfunctioning product)*
* Including FREE Ground shipping back to customer. Customer gets charged upon shipping the Advanced-Replacement product, then gets fully credited upon receiving the malfunctioning product.
