Product discontinues. call us 888-483-2418 for replace items.

Product Overview

The Phantom Specter, the first ever distributed micro-sized KVM switch, is especially designed for single user KVM management of up to 63 servers on a single line making it the ideal solution for high density server and rack environments like server farms, data centers or corporate server rooms.

The micro-sized Specter provides much more power than a conventional switch by freeing up rack space, eliminating cable clutter and maximizing your flexibility.

Advanced Management and Security Options

The Phantom Specter features advanced On Screen Display (OSD) management, including multi-layered security, the most efficient way for monitoring, accessing and controlling your servers.

You can also manage your Phantom system, via a serial port, using the Phantom's Control Software or any other third party software.

Less Switch Space Means More Server Space

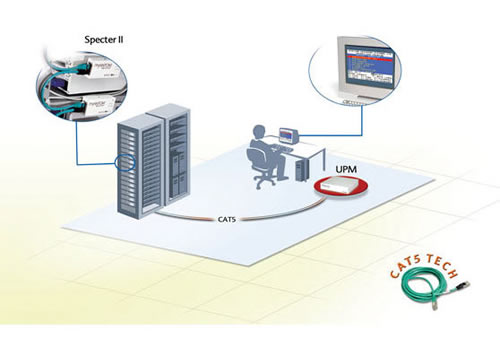

Phantom's Distributed Switching Technology (DST) divides the KVM switch into smaller subunits: a Manager and multiple Remote units. The Remote units can be placed inside the servers (PCI Cards) or on the side or back of the rack (Specter Units) where they occupy no rack space! Now you can dedicate more of your rack to servers instead of wasting space on switches.

Components

The Phantom Specter system consists of two separate units:

  • 1 Universal Phantom Manager (UPM) unit per system
  • 1 Remote unit per computer (Specter) up to 63 per line

Features:

  • Single user control of up to 63 servers on a single line
  • Zero U rack space - more room for servers
  • Advanced OSD management and multi-layered security
  • Pure hardware solution - BIOS level access
  • Low density CAT5 cabling that ends cable clutter
  • Scalable - buy only what you need and add as you grow
  • Flexible server/KVM console placement up to 110m/360ft away
  • No external power supply at Specter units
  • 3 year warranty
Technical Specifications
System
Number of Remote units
63
System Cable
CAT5 FTP 2x4x24 AWG Solid Wire
Maximum Distance
110m/360ft
Resolution
Up To 1600x1200@75Hz
Mouse Support
PS/2, Wheel mouse, 5-Button mouse, Microsoft Intellimouse
Operating Systems
DOS, Windows (3x, 9x, 2000, NT4, ME, XP and later), LINUX, UNIX, HP UX, QNX, SGI, FreeBSD, BeOS, Open VMS, Novell 3.12 - 6, SUN Solaris
Management
On Screen Display (OSD), RS-232 Control Software
Security
Password, multiple user profiles
Scan
Automatically view all screens at adjustable intervals from 5-995 seconds
Operating Temperature
0 to 40°C / 32 to 104°F
Storage Temperature
-40 to 40°C / -40 to 104°F
Warranty
3 years
Manager Unit
Type
Universal Phantom Manager (UPM)
Cables & Connectors
CPU Cable - 3 in 1
Screen - HDD15F
Keyboard - MiniDin6F
Mouse - MiniDin6F
System Out - RJ45
Service - RJ11
RS232 - DB9M
Rack Mountable Yes
Dimensions
41.5Hx180Dx204.5Wmm / 1.63Hx7.09Dx8.05W"
Power Consumption
85-265 VAC 600mA
Remote Unit
Type Specter PS/2 Specter II SUN Specter II USB Specter II RS232
Cables/Connectors VGA-HDD15M
KB-MiniDin6M
Mouse-MiniDin6M
System
In/Out RJ45
VGA-HDD15M
KB/Mouse-MiniDin8M
System
In/Out RJ45
VGA-HDD15M
KB/Mouse-USB
System
In/Out RJ45
Data-DB9F
Power-USB
System
In/Out RJ45
Dimensions
28Hx45Dx86Wmm/1.10Hx1.77Dx3.39W"
Weight
260g/0.57lb
Shipping Weight
800g/1.76lb
Power Consumption
From KB
port 5VDC
250mA
From
KB/Mouse
port 5VDC
300mA
From
KB/Mouse
port 5VDC
300mA
From USB
port/PS/2
with adapter/
Ext. P.S.
with adapter
5VDC 300mA



Ordering Information
UNIVERSAL PHANTOM MANAGER 0SU52015
PHANTOM SPECTER PS/2 0SU51004
PHANTOM SPECTER II PS/2 (2 USER READY) 0SU51012
PHANTOM SPECTER II USB/SUN USB (2 USER READY)
0SU51011
PHANTOM SPECTER II SUN (2 USER READY) 0SU51013
PHANTOM SPECTER II RS-232 (2 USER READY) 0SU51014
PHANTOM SPECTER STARTER KIT 0SU51018
POWER SUPPLY + CABLE KIT FOR SPECTER PS/2 AND USB 0SU80001
RACK MOUNTING PLATE FOR UPM & MXII 5AC00202
