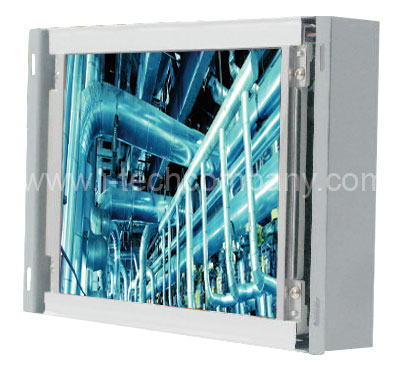

8.4" Open Frame LCD Monitor w/ S-Video & Composite Video (Model WOP840T1AV)
8.4" Open Frame LCD Monitor w/ Open Frame 8.4" Touch Screen S-Video & Composite Video (Model WOP840T1AV)
X
Inquiry/Quote Request
- Overview
- Download
Specification
| Technical Description | |
| Model Name | WOP840T1AV |
| Screen Size (diagonal) | 8.4" |
| Active Display Area (mm) | 170.4(H) x 127.8(V) |
| Native Display Resolution (pixels) | 800x600 |
| Brightness (CD/m^2) | 450(typ.) |
| Contrast Ratio | 600:1 (typ.) |
| Viewing Angles (L/R/U/D) | -80~80 (H); -60~80 (V) |
| Optional Touch Screen | Resistive, SAW |
| Power Information | |
| Power Source | AC 100~240 V, Universal,±10% |
| Power Consumption(Normal operation) | 15 W typical, normal operation |
| Power Input | VESA DPMS Compliant |
| Display Signals | |
| Plug & Play | VESA DDC 1/2B |
| Video Input (optional) | S-Video, Composite |
| DVI Input (optional) | No |
*Due to Panel material's deviation, different panel supplier will set different specific variance range to optical characteristics. The factors of time used, Lamp current, Ambient temperature will influence the optical measurements.
