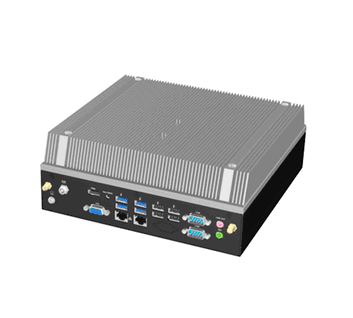

Vehicle Fanless System with Intel Core i5 7300U, AMI Flash ROM, WIFI, 2 * DDR4 2133MHz SO-DIMM slots up to 32GB and 2 * 2.5" SATA Device tray (Model: JV4800-i5)

Vehicle Fanless System with  Intel Core i5 7300U, AMI Flash ROM, WIFI, 2 * DDR4 2133MHz SO-DIMM slots up to 32GB and 2 * 2.5" SATA Device tray (Model: JV4800-i5)

Vehicle Fanless System with Intel Core i5 7300U, AMI Flash ROM, WIFI, 2 * DDR4 2133MHz SO-DIMM slots up to 32GB and 2 * 2.5" SATA Device tray (Model: JV4800-i5)

JV4800-i5
  • Specifications
  • Download
  • Contact Sales
BIOS AMI Flash ROM
CPU/Chipset Intel Kabylake-U Core-i5 7300 SoC Processor
Memory Support 2 * DDR4 2133MHz SO-DIMM slots up to 32GB
Storage Support 2 * 2.5" SATA Device tray (Removable hard drive)
Support 1 * full-size mSATA slot
Network 1 * Intel i219LM & 1 * Intel i210AT GbE
Expansion 2 * Mini PCIe (full-size, for WiFi & CAN BUS expansion)
1 * Mini PCIe slot (only USB signal, full-size, for 4G LTE + GPS expansion)
Rear Panel I/O 4 * USB 2.0, 4 * USB 3.0
1 * HDMI (Max. resolution:4096 x 2304@24Hz)
1 * VGA (Max. resolution:1920 x 1080@60Hz)
2 * RJ45, 8 * 1000M PoE (23W/per port)
1 * Line-out, 1 * MIC
2 * COM (RS232/RS422/RS485)
1 * DC 12V JACK / Lock
1 * Clear COMS Button
2 * Antenna holes (Optional)
Front Panel I/O 1 * Power Button + LED, 1 * Reset Button, 1 * HDD LED
2 * COM (RS232) , 2 * GPIO(DI &DO/ 4 BIT)
1 * LVDS out (Max. resolution:1920 x 1080@60Hz)
2 * SIM card holes
1 * 2.5" SATA Device tray (Easy to change HDD)
1 * Lightning protection grounding fixing hole
1 * Antenna holes (Optional)

Power Source Adapter / AC 90~240V to DC12V / 60W / 5A, LOCK Type
Compliance CE, FCC, LVD, RoHS
Safety Vibration test: -----
Shock test: -----
Temperature Operating Temperature: -20~70C
Storage Temperature: -20~70C
Dimensions 232 (W) x 231.4 (D) x 103 (H) mm
Packing Net Weight: 2.7KG
Gross Weight: 3.7KG
Color Box dimension: --- (W) * --- (D) * --- (H) mm
OS Support Windows 10, Linux
Warranty 2 Years limited warranty
