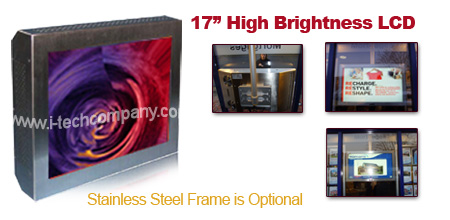

VBright 17" High Brightness Digital Signage LCD Monitor (Model: RVB1700)

VBright 17" High Brightness Digital Signage LCD Monitor (Model: RVB1700)

VBright 17" High Brightness Digital Signage LCD Monitor (Model: RVB1700)

vbright-17-high-brightness-lcd-rvb1700
  • Overview
Product discontinues. Call us at 888-483-2418 for Replacement Item.

Please contact Us at 1-888-483-2418 for price and detail

KEY FEATURES
• A range of actively enhanced LCD monitors able to
  achieve brightness of 2600 cd/m²
• With a full range of sizes from 8.4” to 32”
  most applications can be addressed
• Automatic light sensor dimming options available (ALS)
• Custom sizes on request

BENEFITS
• Long-life backlights
• Smooth and extended dimming range
• Robust construction
• Wide range of signal inputs including DVI
  and composite video
• Color gamut’s and contrast ratio’s are maintained
  even at high brightness levels for outstanding picture quality.

SPECIFICATION
Size 17” / 43.2 cm
Active area (H × V) 337.9 × 270.3 mm
Resolution 1280 × 1024 / SXGA
Pixel pitch (H × W) 0.264 × 0.264 mm
Display colors 16.2 Mio.
Brightness 1100 cd/m²
Contrast ratio 700:1
Viewing angle: h / v ±70° / +70°, -60°
Input signals RGB-Video Analog 0.7 Vss,
Sep. Sync. TTL pos. / neg.,
DVI-D
Power consumption 24 VDC / 4.4 A
MTBF backlight 50,000 h
Dimensions (W × H × D) 422 × 302 × 78 mm
Weight (approx.) 4.65 kg
Operating temperature 0 °C to +40 °C
Storage temperature -20 °C to +60 °C
