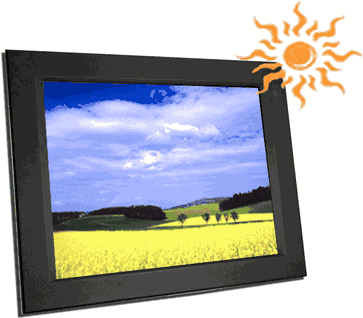

Sunlight Readable LCD 15" 1400nits Panel Mount Monitor (iHAP-1500)

Sunlight Readable/High Brightness LCD 15" 1400nits Panel Mount LCD Monitor w/ optional touch screen (Model iHAP-1500)

Sunlight Readable/High Brightness LCD 15" 1400nits Panel Mount LCD Monitor w/ optional touch screen (Model iHAP-1500)

iHAP-1500
  • Overview
  • Download
Product discontinues. Call us at 888-483-2418 for Replacement item.

Features
  • 15" VGA TFT LCD support 1024 x 768 pixels
  • 1400cd/m2 industrial brightness
  • OSD control keys to optimize the display
  • Different models fit for various application
  • Rugged construction
  • 6mm aluminum front cover
  • Optional front IP protection
  • Modulariezed design
  • Low power consumption
  • Optional with touchscreen and DC power input
  • Optional video input (S-video & Compsite)
  • Wide-ranges Mounting kits (VESA mount, Wall mount, Panel mount, OEM mounting design...)
Specification
LCD
LCD Type Samsung Grade A industrial TFT LCD Panel
Display Size 15 inch diagonal
Resolution 1024 x 768, VGA
Display Color 16.2M color
Brightness 1400 cd/m2
Contrast Ratio 400 : 1 (Typical)
Pixel pitch 0.297 x 0.297 mm
Viewing Angle 70 / 70 / 60 / 65 (L / R / U / D)
OSD Control Brightness, Contrast, Phase & Clock, Color, H & V position, Auto-tune & Recall
Backlight lifetime 50,000 hrs
Signal Input
Horizontal Input Video Signal Analog RGB
Video Level Analog: 0.7Vp-p
Sync Type Separate H/V, Composite H/V
Input Connector D-Sub 15 Pin VGA analog
Video Input (Optional)
Video Input S-Video and Composite
Input Connectors RCA, S-video
Touch Screen (Optonal)
Type
5-Wire Resistive
Surface Accoustic Wave
Thichness
2.2mm
3mm
Light Transmission
87%
90%
Controller
Serial / USB
Serial / USB
Durability
35 million
50 million
OS Support
Windows XP, 2000, NT, 98, DOS and Linux

External Power Adapter


Power Input 110 or 220 VAC at 50 or 60 Hz via AC adapter (12V, 8.3A)
Optional DC Power 12V, 24V or 48V DC input
Mechanical
Material 6mm Aluminum (Front panel)
1.2mm Steel (Rear case)
Finish Powder Coating
Color Front Panel : Black
Back : Dark Grey (RAL7037)
Dimension 390.4 x 71 x 300 mm (WxDxH)
Weight 3.5 kg
Environmental
Temperature

0 to 50 Degree Celsius (Operation)
-20 to 60 Degree Celsius (Storage)

Relative Humidity 70%, non condens
Shock 49G peak acceleration (11ms, half since wave)
Vibration 58~~500Hz/ 0.98G (11min/ cycle)
Package Information
Carton Box 555 x 90 x 470 mm (WxDxH)
Weight 5.5 kg
