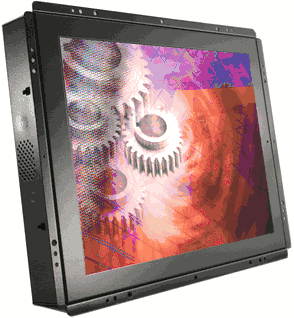

17" Open Frame LCD w/ VGA, USB Touchscreen (Model SOP117EU)

17" Open Frame LCD w/ VGA input, ELO 5-wire Resistive Touch w/ USB Controller (Model SOP117EU)

Title	17"
LCD Display	17" TFT Active Matrix Panel
Display Size	337.9 x 270.3 mm.
Pixel Pitch	0.264 x 0.264 mm.
Display Mode	VGA 640 x 350 ( 70Hz ) VGA 720 x 400 ( 70Hz ) VGA 640 x 480 ( 60/72/75Hz ) SVGA 800 x 600 ( 60/72/75Hz ) XGA 1024 x 768 ( 60/70/75Hz ) SXGA 1280 x 1024 ( 60/ /75Hz ) Mac. 832 x 624 ( 75Hz )
Max. Resolution	1280 x 1024
Contrast Ratio	500
Brightness	250 cd/m?#60;/font>
Response Time
Display Colors	16M
Viewing Angle	+60°~-60?(L/R) +40°~-60? ( U/D )
Input Signal
Video	R.G.B. Analog 0.7v Peak-to-peak
Sync	TTL Positive or Negative
Signal Connector	15 Pin Mini D-sub
Control	Power Switch, Auto adjustment, Menu, Select up/down, Adjust +/-
OSD	Auto-adjustment, Contrast, Brightness. Phase, Color Temperature
Plug & Play	DDC1/2B
Optional	Audio System Touch Screen, Elo or 3M
Power	Universal 90-240v, 12v / 50w
Dimensions	431 x 360 x 59 mm.
Weight(Net)	4.8 Kg.
Features
Certification	FCC-B, CE, UL
