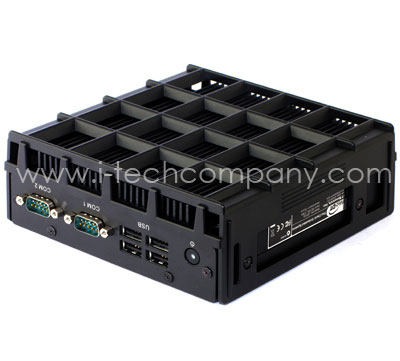

DSX1350
  • Overview
  • Download
The DSX1350 Player/Server Appliance performs as both a digital signage player and server, and incorporates pre-installed player software and Content Manager server software in a small, robust and fan-less package, ready to perform out-of-the-box with no separate server needed. With the powerful and energy-efficient AMD Fusion™ dual core processor as well as AMD Hudson graphic processor, the DSX1350 provides Full-HD video and optimal display experience . The DSX1350 can also be used as a server for up to ten signage appliances, ready to create a network for targeted communications.

Features
  • Digital signage player and server with pre-loaded s erver and player software in one package
  • Quick deployment; scale up to multiple players and locations as needed
  • Pre-installed Content Manager software for remote content management and Device Manager for remote hardware management, VNC included
  • Microsoft® Windows® Embedded Standard 7 operating system
  • Outstanding Full-HD video performance with low power consumption
  • Support up to 10 signage appliances
  • Signage player auto-registered within LAN
  • Support for numerous media formats (e.g., images, videos, Flash, URL, RSS, PowerPoint)
  • Real-time or scheduled content playback
  • lexible screen layout options with multiple zones and layers
  • Automatic content download recovery

Diagram

Specifications

 System
 CPU AMD Fusion™ Dual Core, 1.6GHz
 GPU AMD Hudson
 RAM 4GB
 Storage 32GB, or 64GB Flash
 Operating System Microsoft® Windows® Embedded Standard 7
 Display Resolution Up to 1920 x 1080
 Network Interface 10/ 100/ 1000MB BaseT LAN; Wi-Fi 802.11a/b/g/n (optional)
 I/O Ports
 Expansion 1 Mini PCI
 Display Port 1
 DVI 1
 Audio Jack 2
 USB 2.0 Port 4
 Serial/ COM 2
 DC-in 1
 Ethernet 1 RJ45 connector
 Optional Ports Wi-Fi dipole antenna
 Mechanical and Environmental
 Fan/ Fanless Fanless
 AC/DC Adapter Input: 100 – 240V AC; Output: 19V DC
 Enclosure Aluminum + steel
 Dimensions (H x W x D) 2.16 x 5.82 x 6.5 in/ 55 x 148 x 165.1 mm
 Weight 2.9 lbs/ 1316 g
 Regulatory FCC Class B, CE, C-Tick, RoHS compliant
 VESA Mounting Bracket Included
 Temperature Operation: 0°C – 40°C; Storage: -20°C – 60°C
 Humidity 0% – 90% non-condensing
* Specs subject to change without notice
VESA mounting bracket is included for 1350 VESA_bracket
