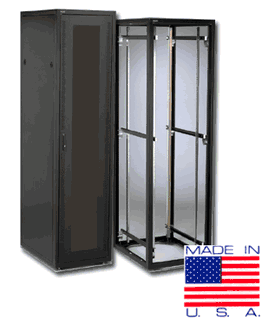

Custom Server Rack Cabinet 32U 42" Deep with Front/Rear Doors and Side Panels (Model# CRE6032)

Custom Server Rack Cabinet 32U 42" Deep with Front/Rear Doors and Side Panels (Model# CRE6032)

Custom Server Rack Cabinet 32U 42" Deep with Front/Rear Doors and Side Panels (Model# CRE6032)

CRE6032
  • Overview
Product discontinues. Contact us at Info@iTechLCD.com for replacement item.

CRE next generation Cabinets are the four-post cabinet of the future! Our Engineers have used their extensive expertise to design the strongest, most flexible, most secure cabinet on the market. Notable design features include:

Features and Benefits

  • Heavy-duty, fully welded four-post frame 19" EIA Square hole 32U 42" Deep Server Rack Cabinet
  • Perforated front door (Right Hinge) with lock and rear (Middle Split) perforated door
  • Top Vented Panel
  • 4 Casters and 4 Leveling Feet
  • Two (2) pairs EIA mounting rails, front and rear
  • Six (6) horizontal mounting struts
  • Jacking feet on a universal corner plate
  • Fifty (50) #12-24 cage nuts with screws or fifty (50) #12-24 Phillips head screws
  • Static Load Capacity: 1400 lbs. (635kg)
  • Standard Cabinet Colors Black, Optional for Gray
  • Standard pack - cabinets ship fully assembled
  • Durable powder coat finish
  • Open base, allowing cable access from bottom, side, and rear
  • Horizontal mounting struts on cabinet for adjusting rail depth

Other Features or Options

  • Depth Options Available in 24",30",36" and 48" deep
  • Width Options Available Width in 28"
  • Choice of 19?or 23?EIA square hole or #12-24 tapped rails
  • Ventilation options for doors, side panels, top, and base, including perforation, vents, and fans
  • Choice of keying and door lock type, offering additional security
  • Colocation cabinets offer shielded vertical tubes
  • Zinc-plated mounting rails for conductivity and grounding
  • Optional filter kit for base
  • Colocation options for up to four compartments
  • See below for more Options

Front/Rear Doors Options

  • Split "wardrobe?style option
  • Quick-release hinges
  • Grounding stud included
  • Heavy-duty spring hinges for easy door removal
  • Choice of right or left hinge
  • Choice of lock

Side Panels Options

  • Lift-off design for easy removal when unlocked
  • Constructed from 16 Ga. (1.5mm) or 18 Ga. (1.2mm) steel
  • Choice of solid or vented
  • Available in heights to match colocation compartments
  • Split "wardrobe?style option

Top Panels Options

  • Cable knock-out plate on all styles
  • Vented and fan styles for increased air flow
  • Blank plates and replacement fans are available to change the configuration of the top panel

Bottom Panels Options

Caster Kit Options

  • Each caster has a load capacity of 175 Lbs. (79kg).
  • The caster kit includes four (4) locking casters and hardware.

Anti-Tip Base Kit Options

  • The anti-tip base kit provides additional stability when sliding shelves are fully extended.
  • The stabilizer arm is retractable and slides in and out of the cabinet.
  • As an added feature, the skirt provided hides casters and the pull-out stabilizer arm.
  • The skirts, stabilizer extension, and hardware are designed to attach to the universal corner bracket.
  • Kit includes four (4) brackets, two (2) sets of sliding rails, four (4) extension nuts, four (4) metal skirts, two (2) leveling feet and assembly hardware.

Colocation Options

  • Colocation divider kits are used to convert a full height cabinet into a One/Two/Three/Four colocation cabinet.
  • Kit includes compartment divider(s), feed-through ducts and supports, feed-through plate, grommets, and all assembly and mounting hardware.

Ganging Bolt-Through Kit

  • The ganging bolt-through kit is designed for joining cabinets positioned side-by-side.
  • If a panel between cabinets is required, it must be field-drilled to accomodate the ganging kit.
  • The kit includes four (4) sleeves, screws, and nuts with a zinc plated finish.

The following items are included with all CRE next generation frames:

  • Two (2) pairs EIA mounting rails, front and rear
  • Six (6) horizontal mounting struts
  • Jacking feet on a universal corner plate
  • Fifty (50) #12-24 cage nuts with screws or fifty (50) #12-24 Phillips head screws

*All brand names, logo & registered trademarks are properties of their respective owners.
