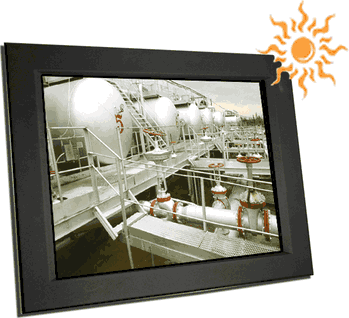

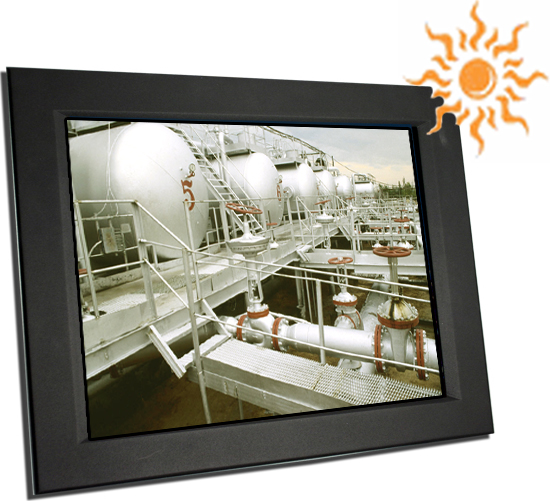

Sunlight Readable Rugged industrial Panel Mount LCD 19" w/ Video input (iNHAP-1900AV)

Rugged industrial Sunlight readable Panel Mount LCD 800 Nits Monitor 19" w/ S-Video, Composite Video input & optional touch screen (Model iNHAP-1900AV)

Rugged industrial Sunlight readable Panel Mount LCD 800 Nits Monitor 19" w/ S-Video, Composite Video input & optional touch screen (Model iNHAP-1900AV)

iNHAP-1900AV
  • Overview
  • Download
Discontinue item: for more information related to this item please check on " iNHAP-1900"

i-Tech's NEMA 4 (IP65) Rugged Industrial Panel Mount LCD Monitors and Displays Designed for Harsh Environments.


Features:

  • - 19" industrial TFT LCD panel support 1280 x 1024 pixels
    - 6mm aluminum front bezel with 45 degree chamfer
    - Front NEMA4/ IP 65 protection
    - 800 cd/m2 industrial brightness
    - OSD control keys to optimize the display
    - Optional video input (S-Video, RCA, BNC & DVI)
    - Optional DC power input (12 / 24 / 48 VDC)
    - Optional TV tuner with remote controller
    - Optional audio input with speaker
    - Optional standard remote controller for AV, VGA & DVI input
    - Optional touch screen
    - A wide range of mounting kits
    (VESA-mount, Mounting bracket, OEM mounting design...)

Application:

  • - Industrial process control
    - Point of sales / Kiosk
    - Security / Surveillance
    - Touchscreen display panel

Options:

Specification
LCD Panel
LCD Manufacturer Samsung
LCD Type Grade A industrial TFT LCD Panel
Panel Size 19" diagonal
Display Area 376 x 301 mm (HxV)
Max. Resolution 1280 x 1024
Brightness 800 cd/m2
Color Support 16.7 Mil.
Viewing Angle 80° / 80° / 80° / 80° (L / R / U / D)
Contrast Ratio 1000 : 1 (Typical)
Tr Respones Time 1.3 ms
Pixel Pitch 0.294 x 0.294 mm
OSD Control Brightness, Contrast, Phase & Clock, Color, H & V position,
Auto-tune & Recall
LCD MTBF 50,000 hrs
Mechanical
Material 6mm Aluminum (Front panel), 1.2mm Steel (Rear case)
Finish Powder Coating
Color Front Panel : Black, Back : Dark Grey (RAL7037)
Dimension 471 x 63 x 393 mm (WxDxH)
Weight 6 kg
Package Information
Carton Box 653 x 112 x 558 mm (WxDxH)
Weight 8 kg
Signal Input
Input Video Signal Analog RGB
Video Level Analog: 0.7Vp-p
Sync Type Separate H/V, Composite H/V
Input Connector D-Sub 15 pin VGA analog
Protective Glass
Material 4 mm protective glass ( front NEMA4/ IP 65 protection)
Power
Power Input
Auto-sensing 100 to 240VAC, 50 / 60Hz via AC Adapter
Power Consumption
Max. 84 Watt, Standby 5 Watt
Environmental
Operation
0° to 50°C Degree
Storage -5° to 60°C Degree
Relative Humidity
5~90%, non-condensing
Shock 10G acceleration (11ms duration)
Vibration 5~500Hz 1G RMS random vibration

Option
AV Input
Video Input S-Video and Composite
Connectors S-Video, RCA
BNC Input
Video Input S-Video and Composite
Connectors S-Video, BNC
DC Power Input
Input Voltage 12 / 24 / 48-Volt
Audio Input
Audio Input Analog audio 2-channel (L/R)
Speaker 3W x 2
TV Tuner
Signal Input NTSC, PAL (I, B, G, H, M, D, N), SECAM (D, K, L, B, G)
Connectors RF
e-Resistive Touchscreen
Type 5-Wire Resistive
Interface USB / Serial
Optical Transmittance 82%±5%
Surface Hardness ≥3H (JIS K5400)
Operating System Windows 98 / 2000 / ME / XP / NT / CE, DOS, Linux
3M Capacitive Touchscreen
Type 3M Capacitive
Interface USB / Serial
Optical Transmittance 88%
Surface Hardness Mohs’ hardness rating: 6
Operating System Windows 98 / 2000 / ME / XP / NT / CE, DOS, Linux
