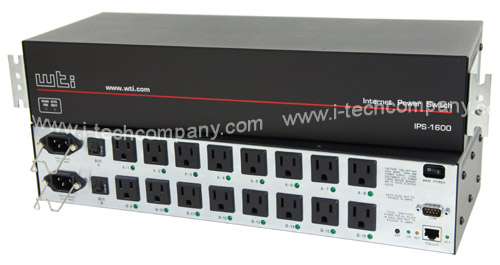

IPS Series
Internet Power Switches for Remote Power Management (Horizontal) |
Servers, routers, and other electronic equipment sometimes "lock-up,"
often requiring a service call to a remote site just to flip the power
switch to perform a simple reboot. IPS-Series Remote Power Management
Switches give you the ability to perform this function from anywhere;
just point your browser to the IP address of any IPS-Series unit,
enter the secure user name and password, and you're just a click away
from remote power On, Off or Reboot!
|
| |
| Model |
Output Receptacles |
Voltage |
Dual Output |
Total Output |
Input Power Cords |
Input Panel |
Regulatory |
|
IPS-400 |
(4)NEMA 5-15R |
120V |
Single
15 Amps |
15 Amps |
(1) Included |
IEC320-C14 |
UL |
|
IPS-400-CE |
(4)IEC320-C13 |
240V |
Single
10 Amps |
10 Amps |
N/A |
IEC320-C14 |
CE |
|
IPS-800 |
(8)NEMA 5-15R |
120V |
15 Amps |
30 Amps |
(2) Included |
IEC320-C14 |
UL |
|
IPS-800-D20 |
(8)NEMA 5-15R |
120V |
20 Amps |
40 Amps |
$50/Set |
IEC320-C20 |
UL |
|
IPS-800E-D20 |
(8)IEC320-C13 |
208V |
20 Amps |
40 Amps |
$50/Set |
IEC320-C20 |
UL |
|
IPS-800-CE |
(8)IEC320-C13 |
230V |
10 Amps |
20 Amps |
N/A |
IEC320-C14 |
CE |
|
IPS-800CE-D16 |
(8)IEC320-C13 |
230V |
16 Amps |
32 Amps |
N/A |
IEC320-C20 |
CE |
|
IPS-1600 |
(16)NEMA 5-15R |
120V |
15 Amps |
30 Amps |
(2) Included |
IEC320-C14 |
UL |
|
IPS-1600-D20 |
(16)NEMA 5-15R |
120V |
20 Amps |
40 Amps |
$50/Set |
IEC320-C20 |
UL |
|
IPS-1600E-D20 |
(16)IEC320-C13 |
208V |
20 Amps |
40 Amps |
$50/Set |
IEC320-C20 |
UL |
|
IPS-1600-CE |
(16)IEC320-C13 |
230V |
10 Amps |
20 Amps |
N/A |
IEC320-C14 |
CE |
|
IPS-1600CE-D16 |
(16)IEC320-C13 |
230V |
16 Amps |
32 Amps |
N/A |
IEC320-C20 |
CE |
|
Two Convenient User Interfaces
The IPS provides two convenient methods for
accessing configuration and switching functions; The Web
Browser Interface and the Command Line Interface.
The Web Browser Interface consists of a series of simple,
easy-to-use web page menus that allow you to select
configuration parameters or initiate switching operations
using your TCP/IP network and a JavaScript enabled web
browser.
The Command Line Interface is an ASCII menu system, which
allows you to configure and operate the IPS via telnet over
TCP/IP network, via modem connection or via local PC using a
terminal program such as Hyperterminal or TeraTerm.
Security and Co-Location Features
Access to the IPS command mode is password
protected to prevent unauthorized users from invoking
sensitive switching and configuration functions. Both the
Web Browser Interface and Command Line Interface require the
user to enter a password before allowing access. Telnet
control can be user-defined to a discrete TCP port, or
completely turned off to ensure that no unprotected port is
present.
The IPS also features two different levels of operational
passwords; the System Administrator Level and the User
Level. The System Level provides access to all configuration
and switching functions, while the User Level is limited to
switching functions only. Each outlet can have a unique User
Level password, and each user can either be allowed to
control all plugs, or restricted to specific plugs selected
by the Administrator.
Easy to Configure, Easy to Use
The IPS can be configured via network, via modem,
or locally via the serial console port. Easy to master,
user-friendly menus and commands let you assign a location
name, set system parameters and view plug status. Outlets
can be switched on, off, rebooted or set to user-defined
default status using plug numbers or names.
Reliability and Support
The IPS is built in the USA and backed by a five
year warranty. NetReach products are installed in thousands
of network sites world wide. Our customers know they can
depend on WTI for superior quality and reliability for their
most mission-critical operations. |
Features:
- Dual Power Circuits: Up to 20 Amp Models
Total Up to 40-Amps Maximum Load
- 8 or 16 Individual Switched Outlets
- Web Browser Access for Easy Setup and Operation
- On / Off / Reboot / Default Switching
- User-Defined Power-Up Default Status
- IP Addressed, 10Base-T Interface
- RS232 Modem / Console Port
- Network Security Features
- Power-Up Sequencing
- Manual Power Control Button
- Various Input Cable Styles Available - Order
Separately
|
Applications:
- Control Power on any 120, 208, or 230 VAC Powered
Device via Internet, Web Browser, Telnet, Modem or Local
Terminal
- Remote Power Management and Control
- Reboot Servers, Routers, Web Cams, Firewalls and
Other Remote Devices
|
Power Cords:
Power Input:



Safety Retainers:
|
| Technical
Specifications IPS - |
800 |
800-D20 |
800E-D20 |
800-CE |
800CE-D16 |
|
Interface Descriptions: |
Network
Interface:
10Base-T Ethernet, RJ45 |
 |
|
|
|
|
|
Console/Modem Port Interface: |
Connectors:
DB-9M, RS232C, (DTE Pinout)
|
1 |
1 |
1 |
1 |
1 |
Coding:
Serial ASCII, 7/8 Bits, No Parity |
|
|
|
|
|
|
Power: |
Voltage:
120VAC, 100/240VAC, 208/240VAC
(50/60Hz) |
120V |
120V |
100/240V |
208/240V |
100/240V |
AC Inputs &
Connectors (2):
10 Amps, 15 Amps, 20 Amps, 16 Amps
IEC320-C14, IEC320-C20 |
(2) 15A
IEC-C14 |
(2) 20A
IEC-C20 |
(2) 20A
IEC-C20 |
(2) 10A
IEC-C14 |
(2) 16A
IEC-C20 |
AC Output
Total:
20 Amps, 30 Amps, 32 Amps, 40 Amps |
30A |
40A |
40A |
20A |
32A |
AC Output -
Receptacles (8):
NEMA 5-15, IEC320-C13 |
(8)
NEMA 5-15 |
(8)
NEMA 5-15 |
(8)
IEC-C13 |
(8)
IEC-C13 |
(8)
IEC-C13 |
AC Output -
Per Receptacle:
Amps/Watts |
3.75A /
450W |
5A /
600W |
5A /
1200W |
2.5A /
600W |
4A /
960W |
|
Physical/Environment: |
Dimensions:
1.75" (4.5cm) High (One Rack U)
17.5" (44.5cm) Wide
19" (48.3cm) Wide with Rack Mount Kit (Included)
7" (17.8cm) Deep |
|
|
|
|
|
Weight:
10 lbs. (4.5 Kg) Shipping Weight |
|
|
|
|
|
Operating
Temperature:
32°F to 122°F (0°C to 50°C)
|
|
|
|
|
|
Humidity:
10 to 90% RH |
|
|
|
|
|
|
Agency Approvals: |
| UL, cUL, FCC
Class A, RoHS Compliant |
|
|
|
|
|
| UL, cUL, CE,
FCC Class A, RoHS Compliant |
|
|
|
|
|
| CE, RoHS
Compliant |
|
|
|
|
|
|
Applications:
- Control Power on any 100-120 VAC Powered Device via Internet, Web Browser, Telnet, Modem or Local Terminal
- Remote Power Management and Control
- Reboot Servers, Routers, Web Cams, Firewalls and Other Remote Devices
Features:
- Web Browser Access for Easy Setup and Operation
- Encrypted Password Security
- Eight (8) Individual Switched Outlets
- Dual 15 Amp Power Circuits; Total 30 Amps Maximum Load
- On / Off / Reboot / Default Switching
- User-Defined Power-Up Default Status
- IP Addressed, 10Base-T Interface
- RS232 Modem / Console Port
- Network Security Features
- Power-Up Sequencing
- Manual Power Control Button
- 16-Outlet Version Also Available
- 240 VAC Version Also Available
Servers, routers, and other electronic equipment sometimes "lock-up," often requiring a service call to a remote site just to flip the power switch to perform a simple reboot. The IPS-800 Remote Power Management Switch gives you the ability to perform this function from anywhere; just point your browser to the IPS-800's IP address, enter the secure user name and password, and you're just a click away from remote power On, Off or Reboot!
Two Convenient User Interfaces
The IPS-800 provides two convenient methods for accessing configuration and switching functions; The Web Browser Interface and the Command Line Interface.
The Web Browser Interface consists of a series of simple, easy-to-use web page menus that allow you to select configuration parameters or initiate switching operations using your TCP/IP network and a JavaScript enabled web browser.
The Command Line Interface is an ASCII menu system, which allows you to configure and operate the IPS-800 via telnet over TCP/IP network, via modem connection or via local PC using a terminal program such as Hyperterminal or TeraTerm.
Security and Co-Location
Access to the IPS-800 command mode is password protected to prevent unauthorized users from invoking sensitive switching and configuration functions. Both the Web Browser Interface and Command Line Interface require the user to enter a password before allowing access. Passwords transmitted via web browser use 64-bit encryption techniques to ensure that passwords remain protected and access to your equipment remains secure. Telnet control can be user-defined to a discrete TCP port, or completely turned off to ensure that no unprotected port is present.
The IPS-800 also features two different levels of operational passwords; the System Administrator Level and the User Level. The System Level provides access to all configuration and switching functions, while the User Level is limited to switching functions only. Each outlet can have a unique User Level password, and each user can either be allowed to control all plugs, or restricted to specific plugs selected by the Administrator.
Easy to Configure, Easy to Use
The IPS-800 can be configured via network, via modem, or locally via the serial console port. Easy to master, user-friendly menus and commands let you assign a location name, set system parameters and view plug status. Outlets can be switched on, off, rebooted or set to user-defined default status using plug numbers or names.
Reliability and Support
The IPS-800 is built in the USA and backed by a two year warranty. NetReach products are installed in thousands of network sites world wide. Our customers know they can depend on WTI for superior quality and reliability for their most mission-critical operations.
|
Power Input/Output:
|
|
AC Input:
|
Two Separate Circuits; 15 Amps Max. per Circuit
|
|
Voltage:
|
100 - 120 VAC 50/60 Hz
|
|
Connectors:
|
Two (2) IEC-320-C14 Inlets
|
|
AC Output:
|
Sixteen (16) Individually Controlled AC Outlets
|
|
Connectors:
|
Sixteen (16) NEMA 5-15 Outlets
|
|
Current Load:
|
Power Circuit "A": 15 Amps Max.
Power Circuit "B": 15 Amps Max.
|
|
Control Ports:
|
|
Network Port:
|
Ethernet, 10Base-T
|
|
Console/Modem Port:
|
DB9M, RS232C, DTE
|
|
RS232 Coding:
|
Serial ASCII, 7/8 Bits, No Parity, 300 - 38.4 Kbps
|
|
Physical / Environmental:
|
|
Size:
|
| Height: |
3.5" (8.9 cm) (Two Rack U) |
| Depth: |
7" (17.8 cm) |
| Width: |
17.5" (44.5 cm)
(19" with Rack Mount Kit) |
|
|
Shipping Weight:
|
12 lbs. (5.5 Kg)
|
|
Operating Temperature:
|
32°F to 122°F (0°C to 50°C)
|
|
Humidity:
|
10 to 90% RH
|
This product has a limited warranty of:
2 years for parts and 2 years for labor.
