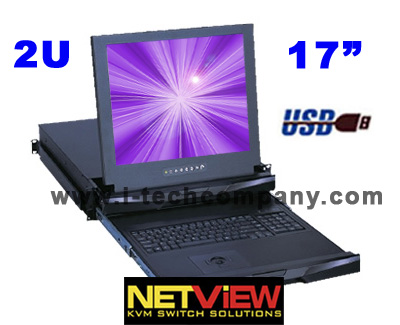

2U 17" LCD w/o KVM (Combo Free PS/2 or USB) Compact Keyboard (Model: NVP217u)

2U 17" LCD w/o KVM (Combo Free PS/2 or USB) Compact Keyboard optional Touch Pad (Model: NVP217Ue/NVP217Ut/RKP217Ue/RKP217Ut) & Trackball (Model: NVP217Ub/NVP217Ud/RKP217Ub/RKP217Ud)
  • Front View
  • Front View
  • Side View
  • Side View
  • Back View
  • Keyboard

2U 17" LCD w/o KVM (Combo Free PS/2 or USB) Compact Keyboard optional Touch Pad (Model: NVP217Ue/NVP217Ut/RKP217Ue/RKP217Ut) & Trackball (Model: NVP217Ub/NVP217Ud/RKP217Ub/RKP217Ud)

RKP217u
  • Overview
  • Specifications
  • Download
Product discontinues. Call us at 888-483-2418 for replacement item.

Part No.: NVP217Ub
                 NVP217Ud
                 NVP217Ue
                 NVP217Ut


Features and Benefits

  • Combo Free PS/2 or USB KVM (New Features)
  • Using only 2U of EIA rack space (3.5" high), the iNVP2 Series rack-mount integrated is designed for space-saving 19" rack-mount applications.
  • Feature a 2U Dual Slides allow monitor system and see through cabinet closed glass door
  • Feature a with SamSung LCD Panel. Available in 15"/17"/19" LCD optional with 8 or 16 ports USB KVM
  • Feature a fully functional 95-keys Windows keyboard integrated with 3-buttons trackball
  • Equipped with industrial-grade heavy-duty slide-out rails with depth-adjustable rear mounting support
  • USB KVM drawers can be mounted in any standard 19" server rack available in the market.
  • Built-in lock to prevent unauthorized console access.
  • Adjustable bracket up to from 26" to 34"
  • Optional Keyboard Selection
  • Optional USB Keyboard Mouse KVM
  • Optional Video Input Selection
  • Optional Power Input Selection

Options (Click "OPTION" tab above to customize or call 1-888-483-2418 for detail):

Comes with
  • (1) i-Tech NVP2 Series  PS/2 KVM drawer unit
  • (1) 3-in-one PS/2 KVM cable, 6-feet. "For PS/2 KVM Cables, please specify at Comments during online check out"
  • (2) Rear extension mounting brackets
  • (8) Mounting screws for rear extension mounting brackets
  • (4) Fasteners
  • (1) US Power cord
  • (1) Power Adapter 110/220V
  • (1) User Manual
Accessories
  • CV801 : 1U Rackmount 8-ports PS/2 KVM for cascading
  • CV1601: 1U Rackmount 16-ports PS/2 KVM for cascading
  • CVS801 : 1U Rackmount 8-ports USB KVM for cascading
  • CVS1601: 1U Rackmount 16-ports USB KVM for cascading
  • CA-6/CA-10/CA-15: Cascade KVM cables
  • CD-6/CD-10/CD-15: All-in-One PS/2 KVM cables connecting to Servers
  • CB-6/CB-10/CB-15: All-in-One USB KVM cables connecting to Servers
  • SUN-PS2-USB: Converting PS/2 to USB with SUN translating special keys stroke
Specification
LCD
Panel Samsung 17" LCD Panel
Screen Type TFT
Display Area 337.92(H) x 270.34(V) mm
Contrast Ratio 500 : 1
Viewing Angle 140 ° (H) x 120 ° (V) (Typ.)
Resolution 1280 x 1024
Pixel pitch 0.264(H) x 0.264(W) mm
Response Time Tr=5ms, Tf=20ms (Typ.)
Brightness 300 cd/m2
Panel Color 16.2M
Back Light 4 CCFTs (Cold Cathode Fluorescent tube)
Video
Horizontal Synchronization 64 - 80 KHz (Typ.)
Vertical Synchronization 60 - 75 Hz (Max.)
Input Signal Analog RGB 0.7Vp-p
Power Management
VESA DPMS
Control
OSD Control Brightness, Contrast, Colour, Clock, H.Position, V.Position, Phase, Scaling, Auto config, Input select, Multi window, Clear EEPROM, OSD adjust, Save

External Connection

Power Input 12V/5A DC adapter
Video Input 15-pin D-Sub connector
Dimension
Product dimension 43.9(W) x 4.45(H) x 60(D)cm
Packing dimension 73.5(L) x 57.5(W) x 18(H)cm
Diagram

KVM Selections

Base Model 17" LCD Series
Single port w/o KVM
Combo interface
NVP217U

Matrix CAT6 KVM
2 consoles Matrix
Cat6   16 port
NVP217U - MC0116
3 consoles NVP217U - MC0216
4 consoles NVP217U - MC0316
3 consoles Matrix
Cat6   16 port
NVP217U - MC1116
4 consoles NVP217U - MC1216
4 consoles NVP217U - MC2116

2 consoles Matrix
Cat6   32 port
NVP217U - MC0132
3 consoles NVP217U - MC0132
4 consoles NVP217U - MC0332
3 consoles Matrix
Cat6   32 port
NVP217U - MC1132
4 consoles NVP217U - MC1232
4 consoles NVP217U - MC2132

Matrix DB-15 KVM
2 consoles Matrix
DB-15   8 port
NVP217U - M018
3 consoles NVP217U - M028
4 consoles NVP217U - M038
3 consoles Matrix
DB-15   8 port
NVP217U - M118
4 consoles NVP217U - M128
4 consoles NVP217U - M218

2 consoles Matrix
DB-15   16 port
NVP217U - M0116
3 consoles NVP217U - M0216
4 consoles NVP217U - M0316
3 consoles Matrix
DB-15   16 port
NVP217U - M1116
4 consoles NVP217U - M1216
4 consoles NVP217U - M2116

Combo CAT6 KVM
1 consoles Combo
CAT6   8 port
NVP217UC8
2 consoles NVP217UCCE8
2 consoles NVP217UCIP8
1 consoles Combo
CAT6   16 port
NVP217UC16
2 consoles NVP217UCCE16
2 consoles NVP217UCIP16
1 consoles Combo
CAT6   32 port
NVP217UC32
2 consoles NVP217UCCE32
2 consoles NVP217UCIP32

Combo DB-15 KVM
1 consoles Combo
DB-15   8 port
NVP217US8
2 consoles NVP217UCE8
2 consoles NVP217UIP8
1 consoles Combo
DB-15   16 port
NVP217US16
2 consoles NVP217UCE16
2 consoles NVP217UIP16

PS/2 DB-15 KVM
1 consoles
DB-15   8 port 8 poprt
16 port

NVP217U8
NVP217U16



Ordering Information Back to Top

Model no. Description
 Net / gross weight
NVP215 2U height, 15" TFT LCD monitor keyboard drawer
 11kg / 18kg
NVP215-801 2U height, 15" TFT LCD monitor keyboard drawer with 8 port KVM switch
 12kg / 20kg
NVP215-1601

2U height, 15" TFT LCD monitor keyboard drawer with 16 port KVM switch
 13kg / 21kg
NVP217 2U height, 17" TFT LCD monitor
keyboard drawer
12.5kg / 19.5kg
NVP217-801 2U height, 17" TFT LCD monitor
keyboard drawer with 8 port KVM switch
13.5kg / 21.5kg
NVP217-1601

2U height, 17" TFT LCD monitor
keyboard drawer with 16 port KVM switch
14.5kg / 22.5kg
NVP219 2U height, 19" TFT LCD monitor
keyboard drawer
19kg / 25kg
NVP219-801 2U height, 19" TFT LCD monitor
keyboard drawer with 16 port KVM switch
20kg / 26kg
NVP219-1601 2U height, 19" TFT LCD monitor
keyboard drawer with 16 port KVM switch
21kg / 27kg
