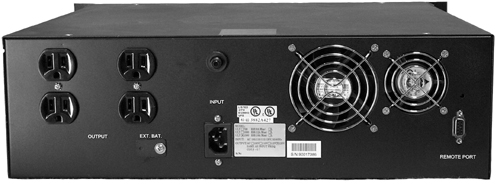

Rackmount On-Line UPS (Uninterruptable Power Supply) 2000VA (Model: OUP-2000-RM)

Rackmount On-Line UPS (Uninterruptable Power Supply) 2000VA (Model: OUP-2000-RM)

Rackmount On-Line UPS (Uninterruptable Power Supply) 2000VA (Model: OUP-2000-RM)

OUP-2000-RM
  • Overview
GENERAL INFORMATION
Power Rating 2KVA/1400W

AC INPUT
AC Input Voltage 100V:76V~130V 110V:80V~138V 115V:83.5V~140V 120V:87V~140V 208V:152V~260V 220V:160V~276V 230V:167V~280V 240V:174V~280V
AC Input Frequency 50 or 60 Hz+/-3 Hz
AC Input Phase Single
AC Input Power factor >= 0.98

AC OUTPUT
AC Output Voltage 100V/110V/115V/120V or 208V/220V/230V/240V
AC Output Frequency 50Hz/60Hz (Auto detection)
AC Output Frequency Stability (+/-0.5%)
AC Output Voltage Regulation (+/-2%)
AC Output Powerfactor 0.7 (lagging)
AC Output Hamonic distortion <3% of T.H.D. at linear load
AC Output Overload detection 105% for 10 seconds and 130% +/- 10% for 300ms

EFFICIENCY
Field49 > 85%

TRANSFER
Transfer Power failure Recovery 0 ms
Transfer Overload Disappear Auto transfer to UPS
Transfer UPS to By Pass or Vice Versa N/A

NOISE
Noise Level 1m Distance < 45dBA

PROTECTION
Protection Spike 150 Joules

BATTERY
Battery Type Sealed lead acid battery, free-maintenance
Battery Protection Cut off without draining any current when battery low
Battery DC Voltage 72V

BACKUP TIME
Battery Backup Time Full Load 9 minutes
Battery Backup Time Half Load 25 minutes
Battery Recharge Time About 8 hours to 90% after fully discharged

PHYSICAL
Physical Weight lbs Tower N/A
Physical Weight kgs RM 28
Physical Weight lbs RM (61.6 lb)
Physical Dimension mm Tower N/A
Physical Dimension inch Tower N/A
Physical Dimension mm RM 430x480x130
Physical Dimension inch RM (16.9)

INDICATOR
LCD Indicators Status Line input (green), inverter output (green), bypass (yellow), fault (red)
LED LED

ALARM
Alarm Battery Discharge The first warning will beep every 4 seconds to indicate battery in use. The second warning will beep every 1 second to signal battery low condition
Alarm UPS Fault Continuous beeping sound

INTERFACE
Interface Dry Contact Provide power management & diagnostic functions including power status, battery low, schedule UPS ON/OFF, battery/load level display and more. Compatatible with Windows 95/98/2000/ME/NT/XP, Novell Unix and other popular systems
Interface RS-232 Provide power management & diagnostic functions including power status, battery low, schedule UPS ON/OFF, battery/load level display and more. Compatatible with Windows 95/98/2000/ME/NT/XP, Novell Unix and other popular systems
Interface Option N/A

ENVIRONMENT
Environment Temperature 0 deg C ~ 40 deg C
Environment Humidity 0%~95% (Non condensing)
