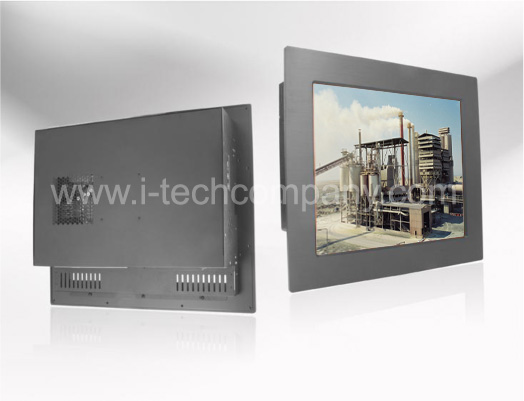

Panel PC IP65 Front, 15" LCD monitor, 1024x768, LED-350nits, VGA, WV(170°/170° MVA), WT(﹣30℃~80℃) , Intel® Core™ H61 i5-2390T Processor 3.5 GHz (Model: EMC1500WT-i5)

Panel PC IP65 Front, 15" LCD monitor, 1024x768, LED-350nits, VGA, WV(170°/170° MVA), WT(﹣30℃~80℃) , Intel® Core™ H61 i5-2390T Processor 3.5 GHz (Model: EMC1500WT-i5)

Panel PC IP65 Front, 15" LCD monitor, 1024x768, LED-350nits, VGA, WV(170°/170° MVA), WT(﹣30℃~80℃) , Intel® Core™ H61 i5-2390T Processor 3.5 GHz (Model: EMC1500WT-i5)

EMC1500WT-i5
  • Overview
  • Download

Features

• 15" LCD panel, 1024 x 768, 350 nits
• Intel® Core™ i5 Processor
• Intel® QM57
• 2 x DDR3 SO-DIMM Up to 8GB 800/1066 MHz SDRAM
• 1 x VGA, 1 x DVI, 6 x USB, 2 x COM, 2 x LAN
• 1 x PS2, Mic-in, Line-in, Line-out


Specifications


Panel Cell Type / Glass Surface TFT LCD / Black Anti-Glare, low reflection coating
Aspec Ratio / Size 4 : 3 / 15" viewable diagonal area
Active Area / Pixel Pitch 304.13(H) x 228.10(V) mm / 0.297(H) x 0.297(V) mm
Native Resolution / Color 1024(H) x 768(V) / 16.2 Million
Brignthess / Contrast 350 cd/㎡ (typ) / 1500 : 1
Response Time 35 ms
Viewing Angle (Typical) H. 170° (- 85° ~ + 85°) , V. 170°(- 85° ~ + 85°)
Light Source LED, Long life, 35,000 hrs (typ)
System CPU Intel® Core™ i5 Processor; FSB 1066MHz
BIOS AMI
System / Graphic Chipset Intel® QM57 / HD Graphics Integrated
System Memory 2 x DDR3 SO-DIMM Up to 8GB 800/1066 MHz SDRAM
HDD 6 x SATA
I/O Ports 1 x VGA, 1 x DVI
6 x USB
2 x COM
2 x LAN
1x(K/B and Mouse)
Mic-in, Line-in, Line-out
Expension 1 x Mini PCI-e
Power Power Input 24V DC-IN (4-Din Connector)
Power Consumption 60 Watt, <1 Watt
Environmental Operating Temperature ﹣30℃~80℃ (-22°F~176°F), 10%~90% (non condensation)
Operating Humidity 0%~95%(non-condensing)

Options Touch Enhanced Pane Other
Resistive(With Glass) High Brightness Panel WiFi Networking Digital Signage
Capactive Panel-LED Backlight 3G Web Cam
SAW Wide Temperature Bluetooth Motion Sensor
  Wide Viewing Angle RFID Auto LightSensor
  Sunlight Readable   Auto-Dimming
