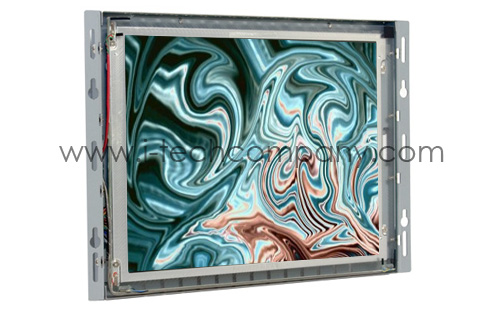

10.4" Open Frame SAW USB Touch LED LCD Monitor (Model: FOP1040-SAW-U)

10.4" Open Frame SAW USB Touch LED LCD Monitor  (Model: FOP1040-SAW-U)
  • Front View
  • Back View
  • Side View

10.4" Open Frame SAW USB Touch LED LCD Monitor (Model: FOP1040-SAW-U)

FOP1040-SAW-U
  • Overview
  • Download

A popular size for many industrial applications would be the 10 (10.4) inch industrial surface acoustic wave (SAW) LED backlit open frame monitor from iTechLCD that has a 4:3 aspect screen ratio. This specific touch monitor comes with two types of touch interfaces. To differentiate between the two touch interfaces, specific models are provided. TheFOP1040-SAW-S/Urepresents the touch screen monitor with an RS232 serial touch interface, where as theFOP1040-SAW-S/UU represents the exact same touch monitor with a USB touch interface option.

Would a 10.4 inch SAW touch screen monitor be a viable option for my application? While a SAW touch screen monitor can be used in any application that requires a touch screen option, there some applications that the unit can be more catered to, such as medical applications or public applications that require a touch glass that is more vandalism resistant than other touch glass types. Why choose a SAW touch panel for my application? A 10.4 inch SAW touch screen monitor is capable of handling environments that are prone to spills that can affect the touch functions and using a SAW touch monitor will still allow the touch functions to work properly.

iTechLCD’sFOP1040-SAW-S/UorFOP1040-SAW-S/UU, 10” SAW touch screen LED open frame monitor is a popular size for medical applications but isn’t limited to just that. These open frame touch screens are also great for other applications such as instrumentation panels, digital signage displays and Kiosks, would be to name a few, even though there are endless possibilities since this unit can be integrated into any application that requires a touch screen.



FOP1040 Open Frame Monitor Quick Facts

  • 4:3 Aspect, 800 x 600 resolution
  • 211.2 x 158.4 [mm] x [mm], 8.31 x 6.24 (inch) x (inch) active area
  • High grade TFT, 400 nit LCD Panel
  • Standard 15-pin VGA input connector
  • DVI, Composite and BNC video input options


Standard Features

  • Compatible with iTechLCD's standard definition signage players
  • Robust CNC milled open frame enclosure
  • Compliant with RoHS, UL, CSA, TUV, FCC B, VCCI B, CE TCO 99, TUV Ergo, EPA Energy Star
  • Perfect for kiosk, equipment and instrument drop-in designs
  • Superior viewing angles, contrast ratio and brightness
  • Unique design accounts for heat ventilation


Included in the package

  • FOP1040, 10.4" Open Frame LCD Monitor
  • +12V power adapter and cord
  • VGA cable


Specifications


LCD Panel
Display Panel 10.4 inch TFT LED
Dot Pitch 0.264(H) x 0.264(V) mm
Max Resolution 800 x 600 SVGA
Contrast Ratio 700:1 (typical)
Brightness 400 cd/m2 (typical)
Uniformity 80% (minimum)
Backlight MTBF 50,000 hours (minimum at 25C)
Response Time 30 ms (typical)
Display Colors 16 million
Viewing Angle 80L/R, 60U, 80D (typical at CR=10)
Video and Power
OSD Controls Brightness, Contrast, Phase, Clock, Color, H&V position, Auto-tune, Recall
Input Signal RGB analog 0.7V peak to peak
Video Input Connector D-sub 15 pin analog VGA
Power Supply AC/DC 12V power adapter, universal 100-240 Volts
Mechanical and Environment
Operating Temperature -30~85C [-20~185F]
Storage Temperature -30~85C [-20~185F]
Humidity 0-80% relative humidity, non-condensing
Dimensions (WxHxD) 278 x 195 x 42 mm [10.94 x 7.68 x 1.65 inch]
Net Weight 1.1 Kg [2.5 lbs]
