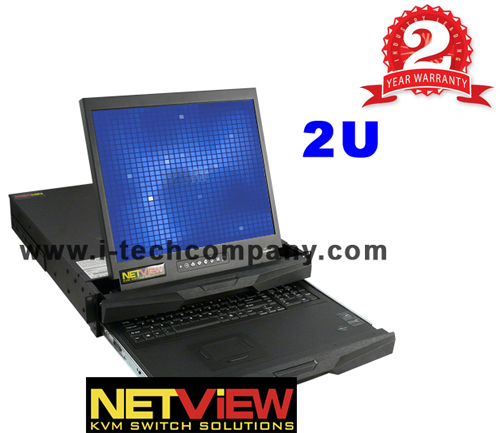

KVM over IP Rackmount LCD 19" Monitor 2U Keyboard Drawer 8-port PS/2 KVM. (Model: NVIP21982d / NVIP21982t / NVIP21982e / NVIP21982b / NVIP21982c)

KVM over IP Rackmount LCD 19" Monitor 2U Keyboard Drawer 8-port PS/2 KVM. (Model: NVIP21982d / NVIP21982t / NVIP21982e / NVIP21982b / NVIP21982c)
  • Front View
  • Front View
  • Front View
  • Side View
  • Back View
  • Keyboard
  • Keyboard

KVM over IP Rackmount LCD 19" Monitor 2U Keyboard Drawer 8-port PS/2 KVM. (Model: NVIP21982d / NVIP21982t / NVIP21982e / NVIP21982b / NVIP21982c)

NVIP21982
  • Overview
  • Specifications
  • Download
Product discontinues. Contact us at Info@iTechLCD.com for replacement item.


LCD Drawer & KVM Benefits:
  • 2U dual slide rackmount drawer with either 17" or 19" LCD
  • Multi-user Matrix KVM with either 16 or 32 ports in 2U
  • Cost efficient combo KVM integration
  • Mix PS/2, USB & SUN with Multi-Platform switch capability
  • Secure remote user access across the world wide web
  • "One Man" installation slides for easy, quick installation

Drawer Features & Options:
  • Combo interface either PS/2 or USB input to the LCD drawer
  • Multiple keyboard language selections with either touchpad or trackball
  • Slide rails with fixed positions to prevent drawer movement when typing
  • Enhanced aesthetics with new moulded front panel and two point lock

Designed for:

Options:

BNC + S-Video DVI-D DC Power Audio Touchscreen

BNC + S-Video Audio

DVI-D Touchscreen - USB

DC Power Touchscreen - Serial


Monitor Grade A 17" or 19" industrial TFT LCD panel

LCD Specifications:

LCD Manufacturer
Diagonal size
17"
19"
Max. Resolution
1280 x 1024
1280 x 1024
Brightness (cd/m2)
300
250
Color Support
16.7 M
16.7 M
Contrast Ratio (typ)
1000 : 1
1000 : 1
Viewing Angle (H/V)
160 x 160
160 x 160
Display Area (mm)
338 x 270
376 x 301
Tr Respnse Time (ms)
1.3
1.3
VGA Signal Input
Analog RGB , 0.7 Vp-p
Sync Type
Separate, H/V, Compose, SOG
Resolution
720 x 400, 70 Hz
640 x 840, 60/ 70/ 72/ 75 Hz
800 x 600, 60/ 70/ 72/ 75 Hz
1024 x 768, 60/ 70/ 75 Hz
1152 x 864, 60/ 70/ 75 Hz
1280 x 720, 60/ 70/ 75 Hz
1280 x 1024, 60/ 70/ 72/ 75 Hz
Plug and Play DDC
EDID 1.3
Console Port (Combo)
DB-15 connector for VGA / Keyboard / mouse (combo interface)
Power Input
Auto-sensing 100 to 240VAC. 50 / 60 Hz
Power Consumption
Max. 48 watt, Standby 5 Watt
Compatibility
Multi platform - Mix PC's SUNs, IBMs, HPs and DELLs
Regulation Approval
FCC, CE

Keyboard Selection:

Supporting layouts


e keyboard with full numerical pad b keyboard with full numerical pad

Dimensions:
Model
Product Dimension
(W x D x H)
Packing Dimension
(W x D x H)

Net
Weight
Gross
Weight
NVIP217/219
442 x 600 x 88 mm
17.4 x 23.6 x 3.5 inch
581 x 753 x 216 mm
22.9 x 29.6 x 8.5 inch
18 kg / 40 lbs
24 kg / 53 lbs

KVM Selections :

Base Model
17" LCD Series
19" LCD Series
Single port w/o KVM
Combo interface
NVP217
NVP219

Matrix CAT6 KVM
2 consoles Matrix
Cat6   16 port
NVP217 - MC0116 NVP219 - MC0116
3 consoles NVP217 - MC0216 NVP219 - MC0216
4 consoles NVP217 - MC0316 NVP219 - MC0316
3 consoles Matrix
Cat6   16 port
NVP217 - MC1116 NVP219 - MC1116
4 consoles NVP217 - MC1216 NVP219 - MC1216
4 consoles NVP217 - MC2116 NVP219 - MC2116

2 consoles Matrix
Cat6   32 port
NVP217 - MC0132 NVP219 - MC0132
3 consoles NVP217 - MC0132 NVP219 - MC0132
4 consoles NVP217 - MC0332 NVP219 - MC0332
3 consoles Matrix
Cat6   32 port
NVP217 - MC1132 NVP219 - MC1132
4 consoles NVP217 - MC1232 NVP219 - MC1232
4 consoles NVP217 - MC2132 NVP219 - MC2132

Matrix DB-15 KVM
2 consoles Matrix
DB-15   8 port
NVP217 - M018 NVP219 - M018
3 consoles NVP217 - M028 NVP219 - M028
4 consoles NVP217 - M038 NVP219 - M038

3 consoles Matrix
DB-15   8 port
NVP217 - M118 NVP219 - M118
4 consoles NVP217 - M128 NVP219 - M128
4 consoles NVP217 - M218 NVP219 - M218

2 consoles Matrix
DB-15   16 port
NVP217 - M0116 NVP219 - M0116
3 consoles NVP217 - M0216 NVP219 - M0216
4 consoles NVP217 - M0316 NVP219 - M0316

3 consoles Matrix
DB-15   16 port
NVP217 - M1116 NVP219 - M1116
4 consoles NVP217 - M1216 NVP219 - M1216
4 consoles NVP217 - M2116 NVP219 - M2116

Combo CAT6 KVM

1 consoles Combo
CAT6   8 port
NVP217C8 NVP219C8
2 consoles NVP217CCE8 NVP219CCE8
2 consoles NVP217CIP8 NVP219CIP8

1 consoles Combo
CAT6   16 port
NVP217C16 NVP219C16
2 consoles NVP217CCE16 NVP219CCE16
2 consoles NVP217CIP16 NVP219CIP16

1 consoles Combo
CAT6   32 port
NVP217C32 NVP219C32
2 consoles NVP217CCE32 NVP219CCE32
2 consoles NVP217CIP32 NVP219CIP32

Combo DB-15 KVM

1 consoles Combo
DB-15   8 port
NVP217S801 NVP219S801
2 consoles NVP217CE8 NVP219CE8
2 consoles NVIP21782 NVIP21982

1 consoles Combo
DB-15   16 port
NVP217S1601 NVP219S1601
2 consoles NVP217CE16 NVP219CE16
2 consoles NVIP217162 NVIP219162

PS/2 DB-15 KVM

1 consoles
DB-15   8 port 8 poprt
16 port

NVP217801 NVP219801
NVP2171601 NVP2191601



Top
KVM Detail Specification :
PC Port 8
Console Port 1
PC Port Connector (All Female Types) VGA HDDB 15-pin (shared with PS/2 keyboard and Mouse)
Console Port Connector (All Female Types)
Local Console: PS/2 Keyboard Mini Din 6 pin
PS/2 Mouse Mini Din 6 pin
VGA HDDB 15pin
Remote Console: RJ-45 8P8C
Daisy Chain Port Connector (All Female Types) PS/2 Keyboard Mini Din 6 pin
PS/2 Mouse Mini Din 6 pin
VGA HDDB 15pin
Serial Port (DB9 pin Male) 1
LAN port (RJ-45 8P8C) 1
10BASE-T Ethernet uses Category 3/4/5/5E/6 UTP
100BASE-T Ethernet uses Category 5/5E/6 UTP
Reset button 1
PC selection On Screen Display Menu, Hot Key, Push Button
PC Port LED 8
Bank 7 segment LED 1
On Screen Display Control Yes
Scan Intervals 5~99 sec.
Keyboard Emulation PS/2
Mouse Emulation PS/2
VGA Resolution Local Console: 1920 x 1440
Remote Console: 1280 x 1024
Daisy Chain MAX Level 8 levels
MAX PC Connection 120
Housing Metal
Power Adapter DC 5V, 2.5A
Operation Temperature 0~50°C
Storage Temperature -20~60°C
Humidity 0~80°C, Non-Condensing
Size 19" Rack Mount / 1RU
Weight 4.4 lbs / 2.0 kg
Dimension (L x W x H)
inch 16.14 x 6.46 x 1.81
cm 41 x 16.4 x 4.6
LCD Display Specification :
Panel Samsung 19" LCD Panel
Screen Type TFT
Display Area 386.4(H) x 289.8(V) mm
Contrast Ratio 700 : 1
Viewing Angle 170 ° (H) x 170 ° (V) (Typ.)
Resolution 1280 x 1024
Pixel pitch 0.242(H) x 0.242(W) mm
Response Time Tr=15ms, Tf=10ms (Typ.)
Brightness 250 cd/m2
Panel Color 16.7M
Back Light 4 CCFTs (Cold Cathode Fluorescent tube)

Diagram
System Requirements:
Local Console Side One VGA Monitor
One Keyboard
One Mouse
Network Side 10/100Mbps Ethernet or Modem
Remote Console Side One computer
Computer side 8 PCs with 8 3-in-one cables (One HDDB 15-pin male to one HDDB 15-pin and two Mini Din 6-pin PS/2 cables)
