| Features |
- Ultra-Slim Size: 180 x 300 x 25.4mm (Thickness: Only One inch)
- Fanless Solution, VIA C7-M ULV 1.2GHz / 1.6GHz
- One SO-DIMM DDR2 Slot, up to 1GB DDR2-533
- Support Dual display function, 1xDVI-D, 1xVGA 15, 1xS-Video(Dual View, Max per resolution: 1600x1200)
- Multiple I/Os, One Serial Port and Four USB Ports
- VESA Mounting (Default:75x75 mm, Optional:100x100 mm)
- Optional Function: 802.11b/g Wireless LAN and Bluetooth 2.1 compliant module
|
|
| |
 |
| |
| System Specification |
| Processor |
Onboard VIA® C7-M Nano ULV 1.2GHz/ 1.6GHz Processor |
|
|
| BIOS |
AMI 8Mbit Flash |
|
|
| System Chipset |
VIA® VX-700 Chipset |
|
|
| System Memory |
1 x SO-DIMM, Max 1GB DDR2 533 |
|
|
| Ethernet Controller |
Realtek RTL8110S GigaLAN |
|
|
| Serial |
1 x RS232/422/485* ports |
|
|
| USB |
4 x USB ports, USB 2.0 compliant |
|
|
| KB / Mouse Connector |
1 x Mini PS/2 |
|
|
| SATA |
1 x SATA Conn. |
|
|
| Expansion Slot |
Mini-PCI slot for Wireless Module(Optional) |
|
|
|
| Graphic Specification |
| Graphic Controller |
Integrated UniChrome Pro II Graphics Engine |
|
|
| Graphic Memory |
Up to 128MB |
|
|
| Graphics Output Connector |
DVI-D and VGA |
|
|
| Graphic Output Resolution |
1600 x 1200 Mode(Per Pixels) |
|
|
| Max. of Computer Monitors |
1 / 1 / 2 (Digital/Analog/Total) |
|
|
| Stretched Desktop Mode |
Support up to 3200 x 1200 (Overall Pixels) |
|
|
| Rotation Mode |
Support Rotation of all displays 90° or 270° |
|
|
| Clone Mode |
Support Clone Mode |
|
|
|

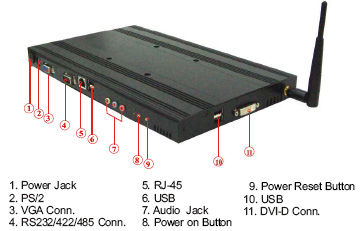

| I/O Connectors |
| Back Side I/O |
1 x RJ-45(10/100/1000 Mbps)
2 x USB Type-A Receptacle
1 x S-Video Conn(Optional)
1 x RS-232/422/485 Conn
1 x VGA 25P DSUB (male)
1 x PS/2
1 x Line in/Line out/Mic in
1 x Power Reset Button
1 x Power on Button |
|
|
| Left side I/Os |
2 x USB Type-A Receptacle
1 x DVI-D Conn |
|
|
|
| Mechanical |
| Dimensions (L x W x H) |
180 x 300 x 25.4mm |
|
|
| Color |
B : Black |
|
|
| Construction |
Aluminum housing / Metal |
|
|
| Power Input |
+12V DC IN (Lockable, Power Jack) |
|
|
| Power source range |
Typical 12V/2A power consumption |
|
|
|
| Mechanical and Environment |
| Mounting |
VESA Mounting (Default : 75 x 75 mm, Optional: 100 x 100 mm) |
|
|
|
Note: All Specifications are subject to change without prior notice!
*If you use SBC on-board RS485, you need to set appropriate state of RTS line before sending/receiving data in your software program.We offer additional board that can perform auto-direction hardware function. |
|
