Model: LCDUCD

Dual Back to Back Ceiling Mount for Two Flat Screens up to 20lbs each with 75mm or 100mm Mounting Patterns (Model: LCDUCD)

Dual Back to Back Ceiling Mount for Two Flat Screens up to 20lbs each with 75mm or 100mm Mounting Patterns (Model: LCDUCD)

LCDUCD
  • Overview
  • Download

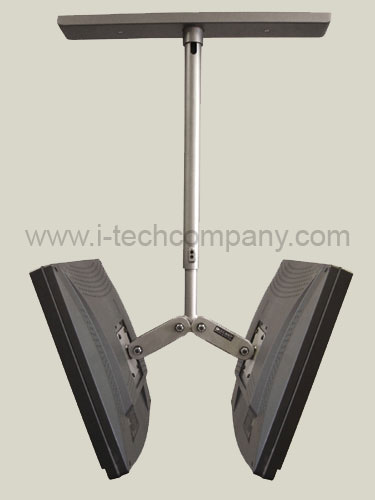

The LCDUCD ceiling mount attaches to two small flat screens up to 20lbs each with 75mm or 100mm mounting patterns. The ceiling mount drops from 20" to 35" from the ceiling to the centerline of the monitor. The dual tilting pivot points can rotate up to 180 or to the maximum range the monitor size will allow. Wood lag screws are provided for solid wood beam installations with the provided ceiling flange.

Features:

• Available in black and silver finishes
• Fits two flat panel monitors under 20lbs (9.1kg) ea.
• Universal mounting pattern fits 75mm x 75mm & 100mm x 100mm VESA compatible monitors
• Telescoping pipe allows monitor drop from ceiling to be adjusted from 20" to 35"

Optional Accessories:

• CMAAB4 - Concrete Anchor Bolt Kit
• CMAEF100 - Chrome eschutcheon flange to dress drops through false ceilings
• CMAP100 - 1" I.D. Pipe cut to length threaded & powder coated for longer drops
• CMACP100 - 1" I.D. pipe coupling to join extra lengths of pipe


Model
Load Limit (lbs.)
Swivel
Tilt
Drop from ceiling
Ship Wt. (lbs.)
LCDUCD
40
360°
±45°
20"-35"
16
