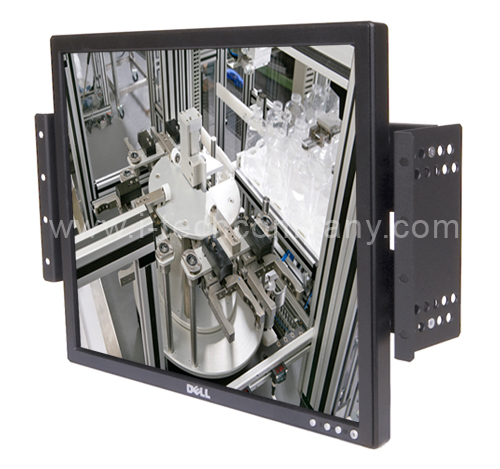

The flush mount monitor kit allows for the installation of any flats screen monitor with 75 or 100 mm VESA mount into any EIA 19" server rack. With this kit, you can install up to a 20" flat screen display into a server rack. The flush mount monitor kit is fully adjustable allowing the flat screen display to be positioned precisely in the Server Rack. A rackmount keyboard is available as an optional feature.

Flushmount any LCD monitor up to 20"

  • Compatible with standard KVM switches
  • 75 - 100 mm VESA hole pattern

Fits any 4Post, 2Post rack

  • Fits square, round, threaded holes
  • Adjustable center mount depth of .44 - 3.5" (11.2 - 89 mm)
  • Dell, HP, IBM, APC compatible


Rack Units Bracket: 4U
The installation will occupy as much space in the server rack as the height of the monitor
Rack Type 4Post or 2Post 19" EIA-310 standard server rack
Rack Type 4Post, 2Post
Included Hardware

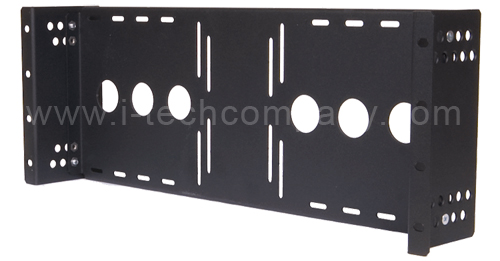

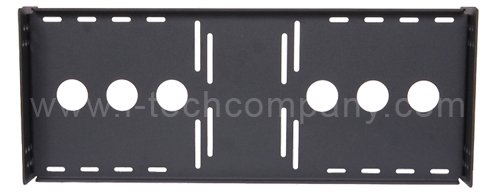

  • (1) Mounting bracket
  • (2) Angle brackets
  • (8) 12-24 nuts
  • (8) 10-32 pan head screws
  • (8) 12-24 pan head screws
  • (8) 12-24 cage nuts "black"
  • (8) Nylon spacers
  • (5) M4 x 10 mm pan head screws
  • (5) M4 x 18 mm pan head screws
  • (5) M4 x 25 mm pan head screws
Hole Type Compatible with the industry standard 3/8" square hole racks
Cage nuts included for square hole mounting
Compatible with all standard round (non-threaded) holes
Compatible with all standard threads including 10-32, 12-24, and Metric M6

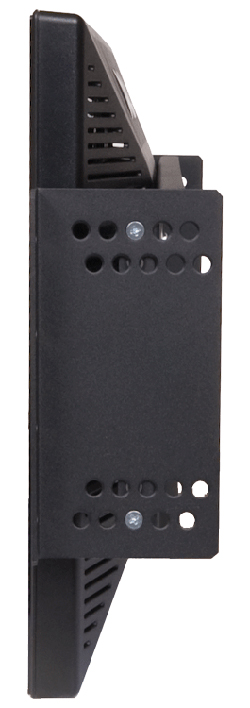

Overall Installation Depth Side brackets: 3.75" (95.25 mm)
Center mounting bracket: 0.44" - 3.5" (11.2 - 89 mm) adjustable in 0.25" (6.35 mm) increments

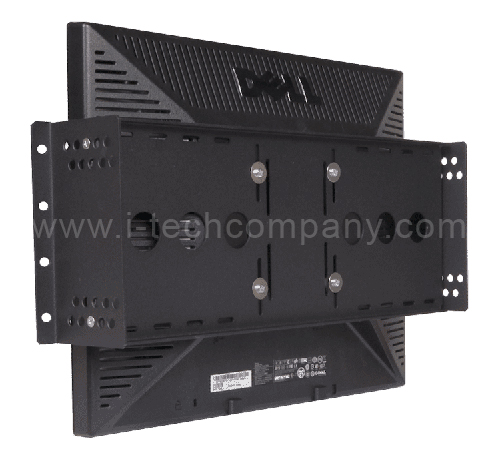

VESA Mount Compatible with 100 mm or 75 mm VESA hole patterns (this is required)
Most LCD display have a four hole VESA mounting holes on the back
The VESA holes may be hidden by the display stand
Monitor Width Flush with rack post, the width cannot exceed: 17.5" (444.5 mm)
Wider displays can be mounted in front of rack post depending on door clearance.
15" - 19" (381 - 483 mm) displays will typically mount flush with rack post.
20" (508 mm) display can mount flush. However, it cannot exceed the 17.5" (444.5 mm) width, or it will require mounting the display forward of the rack post.
Assembly Notes Phillips head screwdriver required
