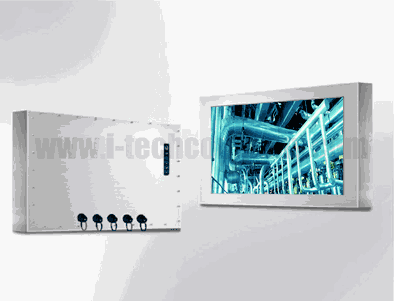

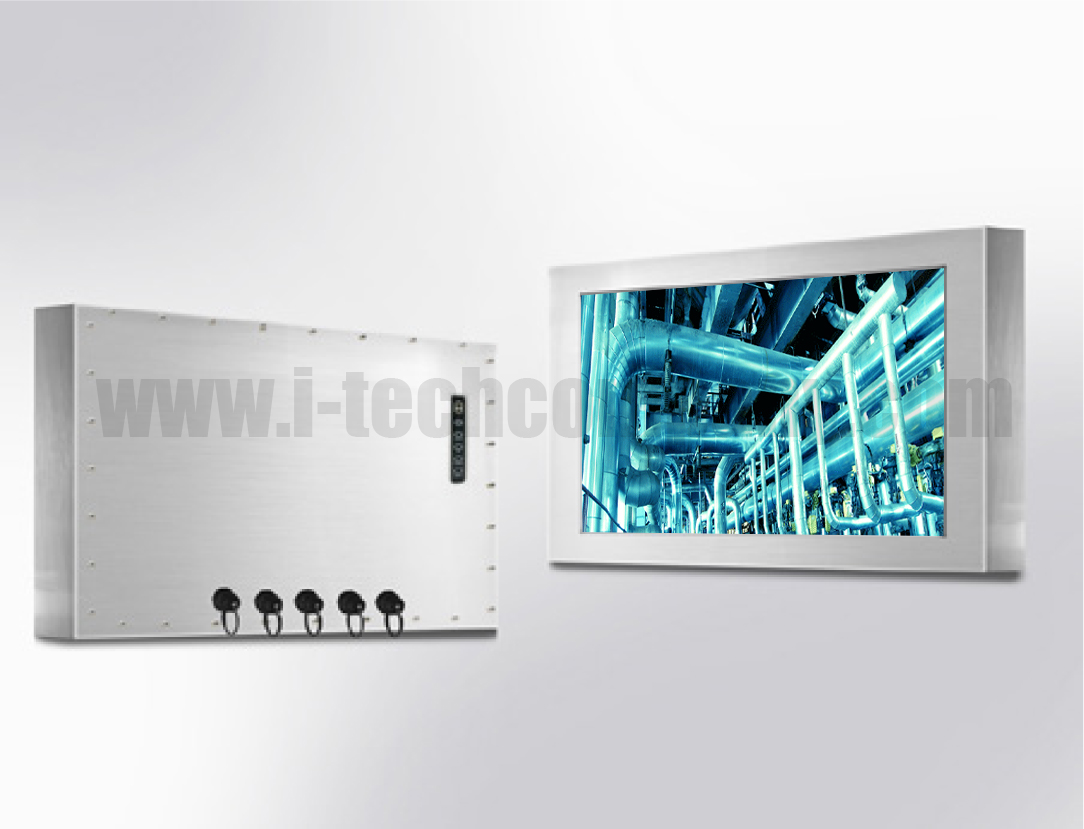

Rugged Completely Sealed Full IP66 Stainless Steel Chassis 32" Wide LCD monitor , Resolution 1920 x 1080, 350 nits, Intel Atom BayTrail, Celeron-J1900 quad cores Processor with Projective Capacitive Touch (1-2mm) USB Controller (Model: ECHW3200A-SIP-BT-PCT)

Rugged Completely Sealed Full IP66 Stainless Steel Chassis 32" Wide LCD monitor , Resolution 1920 x 1080, 350 nits, Intel Atom BayTrail, Celeron-J1900 quad cores Processor with Projective Capacitive Touch (1-2mm) USB Controller (Model: ECHW3200A-SIP-BT-PCT)

Rugged Completely Sealed Full IP66 Stainless Steel Chassis 32" Wide LCD monitor , Resolution 1920 x 1080, 350 nits, Intel Atom BayTrail, Celeron-J1900 quad cores Processor with Projective Capacitive Touch (1-2mm) USB Controller (Model: ECHW3200A-SIP-BT-PCT)

ECHW3200A-SIP-BT-PCT
  • Overview
  • Download

Features

  • Modularize mechanical design provides flexible product confguration and easy maintenance
  • Optional build-in touch screen for interactive application
  • Intel® Atom Baytrail
  • Intel® Celeron J1900
  • Dual Channel DDR3 1333 MHz SDRAM up to 8GB
  • 1 x COM, 1 x VGA, 2 x USB, 1 x LAN, 1 x Power
  • IP66 Complient


Specifications


Panel Cell Type / Glass Surface TFT LCD / Black Anti-Glare, low refection coating
Aspect Ratio / Size Wide / 32" viewable diagonal area
Active Area / Pixel Pitch 698.4(H) x 392.9(V) mm / 0.3638(H) x 0.3638(V) mm
Native Resolution / Colors 1920(H) x 1080(V) / 16.7M
Brightness / Contrast 350 cd/m2 (typ) / 3000 : 1
Response Time < 8 ms (G-to-G)
Viewing Angle (typical) H.178o (- 89o ~ + 89o) , V. 178o(- 89o ~ + 89o)
Light Source LED backlight, Long life, 35,000 hrs (typ)
System CPU Intel® Celeron J1900 Processor
BIOS UEFI
System / Graphic Chipset Intel® Gen7 Intel Graphics DX 11*, OGL3.2
System Memory Dual Channel DDR3 1333 MHz SDRAM, Max up to 8GB
HDD 2 x SATA
I/O port 1 x VGA
2 x USB
1 x COM
1 x LAN
Expension N / A
Power Power Input 9-19V DC-In (4-pin ATX PWR Con)
Power Consumption 83.75 Watt, <1 Watt
Operating Condition Temperature / Humidity 0oC ~ 50oC (32oF ~ 122oF) , 10% ~ 90% (no condensation)
Dimensions Physical Please refer to Drawing
Carton W x H x D = TBD

Options Touch Video / TV
SV + AV
SV + AV + AV_Looping
SV + AV + TV
Enhanced Panel Others
Resistive touch Panel with LED backlight Digital Signage(Stand alone)
Capacitive touch High brightness panel Networking Digital Signage
SAW touch Wide Temperature Motion Sensor
Infrared touch   Sunlight Readable Light Sensor
Protected glass     Auto-Dimming
