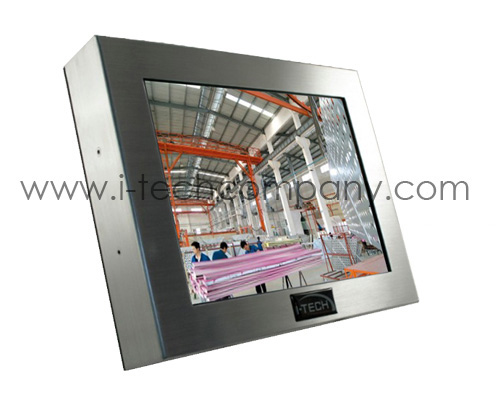

Rugged Completely Sealed IP66 Stainless Steel Chassis Mount 15" LCD monitor, 1024 x 768, 350 nits, Intel i5 processor QM77 2.7 GHz (Model: SCH1500-SIP-PC5)

Rugged Completely Sealed IP66/NEMA4X Stainless Steel Chassis/Surface Mount Water/Dust proof 15" High Brightness Panel PC LCD monitor LED backlight, 1024 x 768, 350 nits, with 2mm AR glass and DVI input with Integrated with i5 processor QM77 2.7 GHz (Model: SCH1500-SIP-PC5)

Rugged Completely Sealed IP66/NEMA4X Stainless Steel Chassis/Surface Mount Water/Dust proof 15" High Brightness Panel PC LCD monitor LED backlight, 1024 x 768, 350 nits, with 2mm AR glass and DVI input with Integrated with i5 processor QM77 2.7 GHz (Model: SCH1500-SIP-PC5)

SCH1500-SIP-PC5
  • Overview
  • Download

Features:

• 15" Bright Active Matrix TFT Display, 350 Nits (cd/m²)
• 1024 x 768 High Resolution
• Integrated with i5 processor QM77 2.7 GHz, 32GB SSD/0~70C, 4GB Memory, Win 7 pro 32bit OS, DVI(for video signal input), LAN, RS232, USB * 2, Power x 1 waterproof connectors &
cables (6ft)
• NEMA 4X (IP66) 304 Stainless Steel Gasket Sealed Enclosure
• DVI-D only for external video input
• Included all water proof connectors and 6ft long water proof cables.
• LED backlight Energy Efficient, Low Power Consumption
• High Environmental Performance and Reliability
• Anti-Reflective Protective Glass
• Wide Operational Temperature Range, 0°C to +50°C (32°F to +122°F)
• RoHS Compliant
• VESA mount compliant.




Options:

• Optional Custom fitting for purging the monitor's enclosure
• Optional for 9-36V DC input
• Optional 5 Wired Resistive touch/ IR/ PCap Touch Screen (USB Default/ RS232 per request controller)
• Optional High Brightness 1000nits For Semi outdoor application
• Optional for Auto Dimming Sensor
• Optional for IR Remote Control with Front Sensor.
• Optional Heater for lower temperatures -30C (-22F)
• Optional Integrated VGA/ DVI Extender
-Transmission length up to 1,000ft over CAT5e cable for VGA input
- Transmission length up to 300ft over CAT5e cable for DVI input





Rugged Completely Sealed IP66/NEMA4X Stainless Steel Chassis/Surface Mount LCD Monitor


Features Highlights:

  • 1.Water Proof Solution, Full IP/NEMA4 Rating
    front and back, Stainless and Aluminum Housing Chassis Design
  • 2. AR Glass Protective Glass at front.
  • 3. Optional High Brightness and Touch screen.

  • IP65 Water and Dust proof connection for a higher protection
  • All Connectors are facing backward

  • Optional DC 9-36V input


Specifications:

LCD Display
Size / Panel Type 15” XGA Color TFT LCD Panel
Resolution 1024 x 768
Brightness (cd/m²) 350cd/m²
Contrast Ratio 700 : 1
Response Time 8 ms
Backlight LED Backlight Unit
Colors 16.2M colors
Viewing Angles 160º / 140º
Surface Hardness 7~8H, AR Glass
Touch Screen (Optional)
Touch Screen Type Resistive Touch / PCT Touch (Optional)
Surface Hardness 3H / 7H
Environment
Operating Temperature 0°C~+50ºC
Storage Temperature -20°C~+60°C
Humidity 5%~95% RH(Non-Condensing)
Water-Proof Rating IP66/NEMA4, 6 Side Water-Proof
System
CPU / Memory i5 processor QM77 2.7 GHz, 32GB SSD/0~70C,4GB Memory
OSD Menu, Auto, On/Off, Up, Down
I/O Interface DVI x 1 + RS232 x 1 + USB x 2 + POWER x 1 + LAN x 1
Power Input 12 VDC ( Optional : 9~36VDC)
Power Consumption 28W
Certification FCC/CE/RoHS Compliance
Mounting VESA 75 x 75mm;100 x 100mm
Dimension/Weight 396mm (W) x 319mm (H) x 50mm (D) / 8.5kgs


Accessories

Water proof DVI cable 6ft long x 1
Water proof LAN cable 6ft long x 1
Water proof Power cable 6ft long x 1
RS232 Connector 6ft long x 1
USB Connector 6ft long x 2
