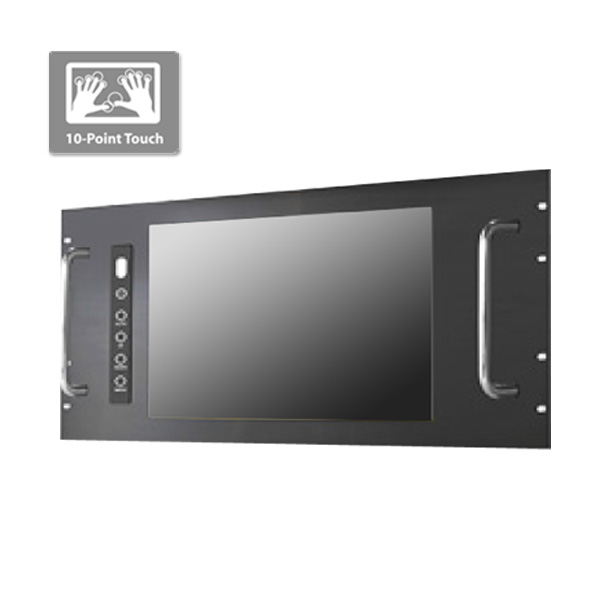

IP65 Rack Mount 12.1" LCD monitor, 800 x 600, LED 1000 nits, VGA input, WV(178/178), WT(-30C~70C) 10 points Projective Capacitive Touch (1-2mm) USB Controller (Model: ERPM1210HBWVWT-PCT10)

IP65 Rack Mount 12.1" LCD monitor, 800 x 600, LED 1000 nits, VGA input, WV(178/178), WT(-30C~70C) 10 points Projective Capacitive Touch (1-2mm) USB Controller (Model: ERPM1210HBWVWT-PCT10)

IP65 Rack Mount 12.1" LCD monitor, 800 x 600, LED 1000 nits, VGA input, WV(178/178), WT(-30C~70C) 10 points Projective Capacitive Touch (1-2mm) USB Controller (Model: ERPM1210HBWVWT-PCT10)

Main Feature

  • Modularize mechanical design provides flexible product configuration and easy maintenance
  • Optional build-in touch screen for interactive application
  • Available with auto-brightness sensor offers application in day and night
  • VGA connector with optional AV.SV.AV-Looping
  • Complete custom design/solution for OEM customers
  • IP65 front side sealed for water-dust proof
ERPM1210HBWVWT-PCT10
  • Specifications
  • Download
  • Contact Sales

Panel Cell Type / Glass Surface TFT LCD / Black Anti-Glare, low reflection coating
Aspect Ratio / Size 4 : 3 / 12.1" viewable diagonal area
Active Area / Pixel Pitch 246.0(H) x 184.5(V) mm / 0.3075(H) x 0.3075(V) mm
Native Resolution / Colors 800(H) x 600(V) / 262 K
Brightness / Contrast 1000 cd/m2 (typ) / 800 : 1
Response Time < 35 ms
Viewing Angle (typical) H. 178o (- 89o ~ + 89o) , V. 178o(- 89o ~ + 89o)
Light Source LED backlight, Long life, 35,000 hrs (typ)
Input Sources PC System Signal Analog RGB (0.7/1.0 Vp-p, 75 ohms)
Sync Separate Sync, Composite Sync, Sync On Green
Frequency Fh : 30 - 82Khz , Fv : 50 -75Hz
Audio System 2W speaker x 2
Input Terminals 1 x VGA (15 Pin Female D-Sub) , 1 x PC Audio (Stereo Headphone Jack) , 1 x DC Power Plug
Convenient Features Auto Calibration , Back Light Adjustment , Plug&Play (VESA DDC/CI, DDC 2B)
OSD Multi-Languages , Wall Mount Ready (VESA Dimension - please refer to Drawing)
Power 12V DC in
Power Consumption Operation / Power Saving 22 watt , < 2 watt (Support DPMS)
Operating Condition Temperature / Humidity -30oC ~ 70oC (-22oF ~ 158oF) , 10% ~ 90% (no condensation)
Storage Condition Temperature / Humidity -30oC ~ 80oC (-22oF ~ 176oF) , 10% ~ 90% (no condensation)
Certification   FCC , CE
Dimensions Physical Please refer to Drawing
Carton W x H x D = TBD
Weight N.W. / G.W. 3.5 Kgs / 4.5 Kgs
Container Loaded 20ft / 40ft / 40ft HQ TBD (Sets , By pallet)
