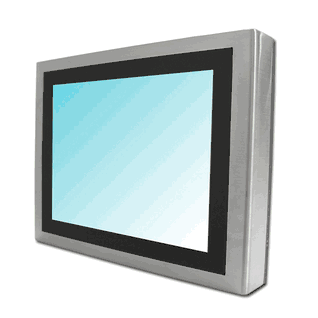

12.1" True Flat Touch Industrial Display-Fully Enclosed NEMA 4/IP65, Resolution: 1024x768, 500 nits with 5 wires resistive touch solution (Model: KCH1210XSIP-FTR)
12.1" True Flat Touch Industrial Display-Fully Enclosed NEMA 4/IP65, Resolution: 1024x768, 500 nits with 5 wires resistive touch solution (Model: KCH1210XSIP-FTR)
Main Feature
- Fanless design and compact solution Fanless solution and compact design
- Fully IP65 compliant 6-sided stainless steel chassis
- Resolution 800 x 600 & 1024 x 768 dpi
- True Flat 5W/PCAP touch solution
- All IP65 waterproof connectors
- 1 x VGA or 1 x USB or RS232 for Touch Screen
- No Touch Screen
X
Inquiry/Quote Request
- Specifications
- Download
- Contact Sales
| I/O Port | |||||||
| VGA | |||||||
| USB or RS232 | |||||||
| Power | |||||||
| DC IN 12 V(Default) or DC IN 19~36V | |||||||
| Touchscreen | OS Support | ||||||
| PCAP/5 wire resistive | Win 7.8.10; Win Embedded 7,8,10, Win pro 7,8,10 | ||||||
| Display | |||||||
| Size | 12.1" TFT (4:3) | 12.1" TFT (4:3) | |||||
| Resolution | 800 x 600 | 1024 x 768 | |||||
| Colors | 16.2M | 16.2M | |||||
| Luminance (cd/m2) | 450 | 500 | |||||
| Contrast Ratio | 700:1 | 700:1 | |||||
| View Angle (H/V) | 160/150 | 160/160 | |||||
| Environmental | |||||||
| Operation Temperature | 0 ~ 45°C for PCAP; -20~55°C for RW | ||||||
| Storage Temperature | -10°C ~ 70°C | ||||||
| Storage Humidity | 10 ~ 90%, non-condensing | ||||||
| Mount | VESA mounting(75X75mm) | ||||||
| Dimension (W x H x D mm)&Weight | TBD | ||||||
| Optional | |||||||
| DVI | 1 | ||||||
| HDMI | 1 | ||||||
| No Touch Screen | 1 | ||||||
| AR Glass | 1 | ||||||
| Optional High Brightness Panel | |||||||
| Resolution | 800x600 | 1024x768 | |||||
| Color | 262K | 16.2M | 262K | 16.2M | |||
| Luminance(cd/m2) | 1000 | 1600 | 1000 | 800 | |||
| Contrast Ratio | 1000:1 | 700:1 | 700:1 | 700:1 | |||
| Viewing Angle (H/V°) | 178/178 | 160/160 | 160/160 | 160/160 | |||
