40" Open Frame LCD Monitor w/ VGA, AV, TV tuner (iOP4000WT)

40" Open Frame LCD Monitor w/ VGA, Video Input & TV tuner (iOP4000WT)

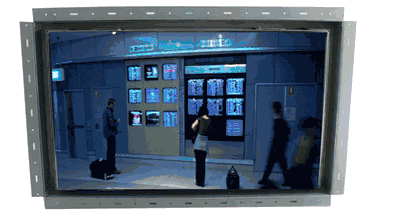

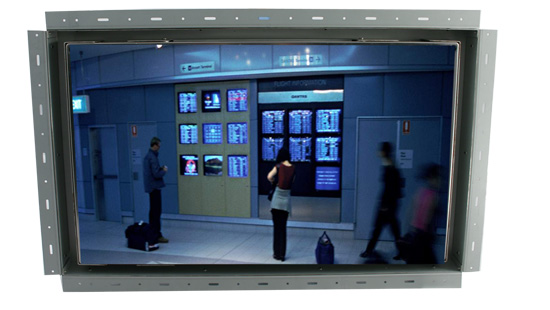

  • Front View
  • Back View
  • Back View
  • Video Output

40" Open Frame LCD Monitor w/ VGA, Video Input & TV tuner (iOP4000WT)

iOP4000WT
  • Overview
  • Download
Product discontinues. Call us at 888-483-2418 or click Replacement Item.
Specifications
LCD Type Samsung grade A industrial TFT LCD Panel
Display Size 40 inch diagonal (885.168H x 449.674V)
Resolution 1366 x 768 WVGA
Display Color 16.7M color
Brightness 500 cd/m2
Contrast Ratio 800 : 1 (Typical)
Pixel Pitch 0.648 x 0.216 mm
Viewing Angle 85 / 85 / 85 / 85 (L / R / U / D)
OSD Control , Brightness, Contrast, Phase & Clock, Color, H & V position, Auto-tune & Recall
VGA Connector D-Sub 15 pin VGA analog
Optional Video Input S-Video and Composite
LCD MTBF 50,000 hrs
Input Video Signal Analog RGB
Video Level Analog: 0.7Vp-p
Sync Type Separate H/V, Composite H/V
Input Connector D-Sub 15 pin VGA analog
Optional Input connectors RCA, S-Video
Input Voltage 110 or 220 VAC at 50 or 60 Hz via AC adapter (24V, 6A)
Material 1.2mm Steel
Dimension 980 x 90 x 630 mm (WxDxH)
Weight 45 kg
Temperature 0 to 50 Degree Celsius (Operation)
-20 to 60 Degree Celsius (Storage)
Relative Humidity 93.8%, non condensing
Vibration 58~500Hz/ 0.98G (11min/ cycle)
Carton Box 1,021 x 330 x 851 mm (WxDxH)
Weight 60 kg
