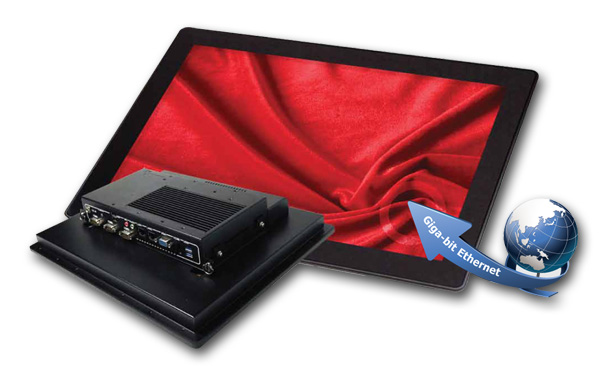

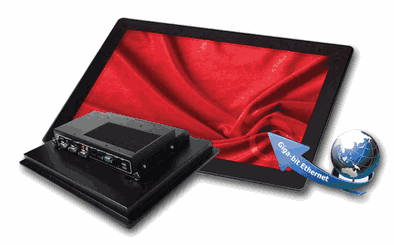

IP65 Front Fanless Panel PC 21.5" LCD integrated Intel Celeron Braswell Quad Core 6W 1.6GHz (Model: QPC2150N)

IP65 Front Fanless Panel PC 21.5" LCD integrated Intel Celeron Braswell Quad Core 6W 1.6GHz (Model: QPC2150N)

IP65 Front Fanless Panel PC 21.5" LCD integrated Intel Celeron Braswell Quad Core 6W 1.6GHz (Model: QPC2150N)

QPC2150N
  • Specifications
  • Download
  • Contact Sales
System
Processor Intel Celeron Braswell Quad Core 6W 1.6GHz
System Memory One 204 Pin 1.5V DDRIII-L SODIMM Socket, total up to 8GB
Storage 2.5" SATA HDD or mSATA SSD
I/O Serial port *3 (RS232/422/485 *1, RS232*2)
USB *5 (USB 3.0*2, USB 2.0*3)
Ethernet, PCI-e Gbe LAN *2, RJ-45
HDMI 1.4a *1
CRT VGA *1, DB-15
Audio, Line out *1, Phone Jack
Expansion Interface One Mini PCI Express Socket
One Mini miniSATA Express Socket
Touch screen Projected Capacitive Touch
OS Support Microsoft Windows 7/8/8.1/10, POSReady7
Power Requirement DC Jack, +12V~+24V Wide Range Input

Display
LCD 21.5" TFT XVGA
Resolution 1920*1080, 16.2M Colors
Luminance (cd/m2) 250
Viewing Angle 80°
Backlight Lifetime 50,000 hrs/ LED

Mechanical
Construction Heavy-duty steel chassis(Black Color), Aluminum Front
Operation Temp. 32°F ~ 122°F (0°C ~ 50°C) with Ambient Air
Storage Temp. -22°F ~ 175°F (-30°C ~ 80°C)
Relative Humidity 10-90% @40°C, Non-condensing
Vibration 5~17Hz, 0.1" double amplitude peak to peak, 1.5G acceleration peak to peak
Shock 10G acceleration peak to peak (11ms)
Rating IP 65 compliant front bezel
Qualification Formal certification CE / FCC Class B
Mounting Bezel / VESA 100 mount / Wall
Dimension TBD
Packing Dimension TBD
Weight (net) TBD

Optional Order
Memory DDRIII-L 1GB, DDRIII-L 2GB, DDRIII-L 4GB, DDRIII-L 8GB
Storage 2.5" SATA HDD 320G, SSD/mSATA 16G~128G
OS Microsoft Windows 7/8/8.1/10, POSReady7
Wifi Lan RTL8188CUS-BC8-WB
