Part No.
HNP615
Product Descriptions:

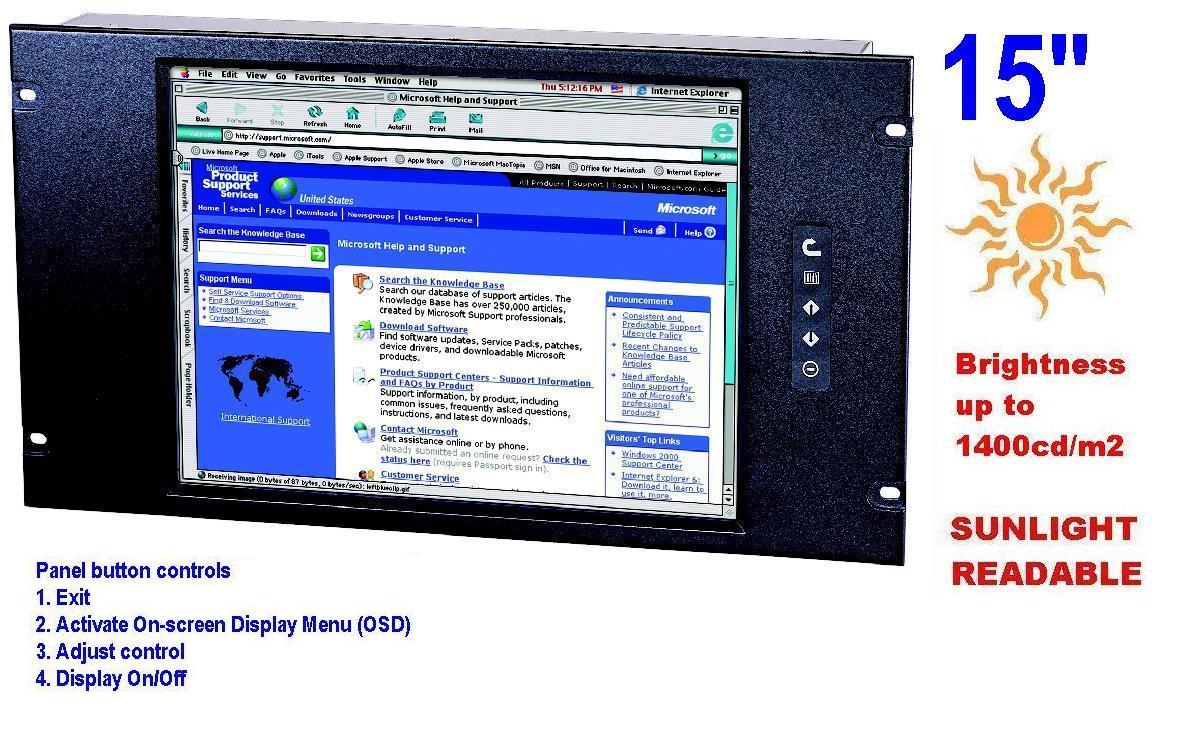

6U Rackmount Sun Readable/High Bright 15" LCD
(Brightness: 1400nits) Flat Panel Monitor
Introductions:
This Sunlight Readable High brightness LCD product specification that specifies form, fit, and function of the 15" Daylight Readable Monitor LCD and its options. The HNP615 is a product of high bright rackmount LCD monitors intended for use in a variety of industrial and commercial applications. Some of these applications include automatic teller machines (ATMs), fuel dispensing systems, ticketing and information kiosks, and intelligent vending machines. The High Brightness LCD panel for HNP615 has a particularly fast response time of
Tr=5ms/ Tf=20ms
and consequently very well suited for video applications.
The HNP615 is a 15 " active matrix TFT LCD with a native resolution of 1024 x 768It has a typical luminance of 1400 nits. The video interface is through a standard 15-pin analog input with an integrated On-Screen Display (OSD). This sheet-metal external housing is intended for industrial applications where the Sunlight Viewable LCD Monitor's product is integrated into a larger host system. Commercial applications would most likely require an additional external fa硤e. This Sun Light Readable LCD product includes packaging designed to withstand standard shipping conditions.
Features:
- 6U 15"
- Styled 6mm cast aluminum front panel
- Viewable under ambient lighting condition
- Provides the longest lamp life possible for all brightness levels
- All mounting hardware included
| High Brightness LCD Specifications |
| Panel |
15" LCD series |
| Display type |
Active matrix TFT color LCD |
| Pixel Pitch |
1024 x 768 XGA |
| Max. Resolution |
0.297(H) x 0.297 (W) mm |
| Contrast Ratio |
400:1 |
| Brightness |
1400 cd/ m2 |
| Response Time |
Tr=5 / Tf=20 ms |
| Display color |
16.2M |
| Viewing angle (typical) |
140 (Horiz.)/115(Vert.) |
| Operating temperature |
0 to 50 |
| Storage temperature |
-20 to 60 |
| HNP615: 6U Rackmount 15" TFT LCD Flat Panel Monitor |
| Monitor |
Power Supply |
- Panel
15" LCD panel
- Display type
TFT/ LCD active matrix color
- Resolutions
1024 x 768
- Response time
Tr=5ms/ Tf=20ms
- Screen dimming ratio
200 : 1
- Contrast ratio
300 : 1 typical
- Brightness
1400 cd/m2
typical
- Pixel
pitch
0.297mm (H) x 0.297mm (W)
- Panel
color
16.7 million display colors
- Viewing
angle
115o (Horiz.)/ 100o (Vert.)
- Storage
temp.
-20oC to 60oC
- Operating
temp.
0oC to 50oC
- MTBF
25,000 hours
|
- Remote
adapter:
110V - 220V AC input
12V 5A Output
- Adapter
Size:
4.3"(L) x 2.4"(W) x 1.2"(H) inch, 10.8(L) x 6.1 (W)
x 3(H)cm
- Cable
length from mains plug to adapter:
6ft (182cm)
- Cable
length from adapter to unit:
6ft (180cm)
- Safety
approval:
CE
|
| Dimension |
- Product
dimension (W x H x D)
18.9"(W) x 10.44"(H) x 1.58"(L)inch (48x 26.5x 4cm)
- Packing
dimension- (L x W x H)
16.55"(W) x 22.46"(H) x 8.27"(L)inch (42x 57 x
21cm)
|
| Backlight |
Net/Gross Weight |
- Number of lamps
12
- Power consumption
35W
|
- 11 lbs / 15.4lbs (5kg / 7kg)
|
| Diagram |
 |
iTech Standard Warranty
* Free 1-year warranty covers parts and workmanship
* Telephone and email technical support are available from 9:00 am to 5:00 pm
PST, Monday through Friday
* Standard Warranty coverage begins on the date of purchase
