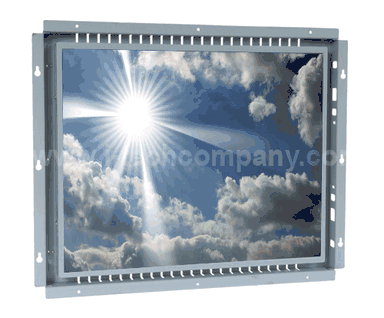

19" High Brightness Open Frame SAW USB Touch LED Monitor (Model: FOP1900HB-SAW-U )

19" High Brightness Open Frame SAW USB Touch LED Monitor (Model: FOP1900HB-SAW-U )

19" High Brightness Open Frame SAW USB Touch LED Monitor (Model: FOP1900HB-SAW-U )

FOP1900HB-SAW-U
  • Overview
  • Download

iTechLCD’s FOP1900HB-SAW-S/U, Industrial 19 Inch High Bright Surface Acoustic Wave (SAW) Touch Screen LED Open Frame Monitor is available with two types of touch interfaces.  The first touch interface is the RS232 serial and the model type is FOP1900HB-SAW-S.  The second touch interface option is a USB and the model type is the FOP1900HB-SAW-U.  Either one of these units would be ideal for an application that requires a touch monitor.  It just depends on the touch preference.

How bright is the FOP1900HB-SAW-S/U?  The 19” touch screen monitor is rated at 1,500 nits, which is perfect for any outdoor application or indoor application that has high ambient lighting.

Will there ever be a design change to the FOP1900HB-SAW-S/U?  iTechLCD ensure that there will never be a design change to the units, even if there is a panel revision to maintain uniformity and consistency for the units throughout the life of the commercial 19” touch screens.  This helps to alleviate and concerns that OEMs, integrators and designer may have.

The FOP1900HB-SAW-S/U, 19” sunlight readable SAW touch screen open frame monitor can be used in many various applications including, digital signage displays, control panels, Kiosks, instrumentation control panels, interactive displays and many other applications that require an interactive touch screen monitor.



FOP1900HB Open Frame Monitor Quick Facts

  • 4:3 Aspect, 1280 x 1024 resolution
  • 376.32 x 301.06 [mm] x [mm], 14.81 x 11.85 (inch) x (inch) active area
  • High grade TFT, 1400 nit LCD Panel
  • Standard 15-pin VGA input connector
  • DVI, Composite and BNC video input options


Standard Features

  • Compatible with iTechLCD's standard definition signage players
  • Robust CNC milled open frame enclosure
  • Compliant with RoHS, UL, CSA, TUV, FCC B, VCCI B, CE TCO 99, TUV Ergo, EPA Energy Star
  • Perfect for kiosk, equipment and instrument drop-in designs
  • Superior viewing angles, contrast ratio and brightness
  • Unique design accounts for heat ventilation


Included in the package

  • FOP1900HB High Bright Open Frame Monitor
  • +12V power adapter and cord
  • VGA cable


Specifications


LCD Panel
Display Panel 19 inch TFT LED
Dot Pitch 0.294(H) x 0.294(V) mm
Max Resolution 1280 x 1024 SXGA
Contrast Ratio 1000:1 (typical)
Brightness 1400 cd/m2 (typical)
Uniformity 80% (minimum)
Backlight MTBF 50,000 hours (minimum at 25°C)
Response Time 5 ms (typical)
Display Colors 16 million
Viewing Angle ±85°L/R, +80°U,-80°D (typical at CR=10)
Video and Power
OSD Controls Brightness, Contrast, Phase, Clock, Color, H&V position, Auto-tune, Recall
Input Signal RGB analog 0.7V peak to peak
Video Input Connector D-sub 15 pin analog VGA
Power Supply AC/DC 12V power adapter, universal 100-240 Volts
Mechanical and Environment
Operating Temperature 0~50°C [32~122°F]
Storage Temperature -20~60°C [-4~140°F]
Humidity 0-85% relative humidity, non-condensing
Dimensions (WxHxD) 460 x 380 x 50 mm [18.11 x 14.96 x 1.97 inch]
Net Weight 4.18 Kg [9.2 lbs]
