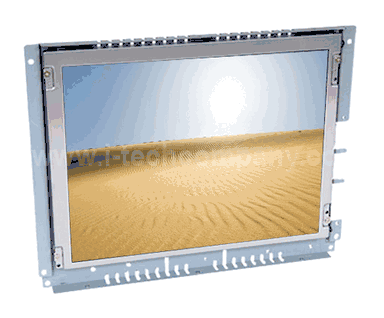

12.1" High Brightness Open Frame SAW USB Touch LED Monitor (Model: FOP1200HB-SAW-U )

Overview
Download

iTechLCD’s FOP1200HB-SAW-S, 12.1(12) Inch Surface Acoustic Wave (SAW) Touch High Bright LED Open Frame Monitor is a 4:3 aspect ratio monitor that is sunlight readable. There are two model types for this to help distinguish between the touch interfaces. The first model is the FOP1200HB-SAW-S, which signifies an RS232 Serial touch interface and the second model is the FOP1200HB-SAW-U, which indicates a USB touch interface.

Why does the 12” high bright touch monitor offer two types of touch interfaces? The reason why there are two types of touch interfaces is so that the touch monitor can accommodate various types of applications that might require a serial or a USB touch interface.

How bright is the display? The 12” high bright monitor is rated at 1,600 nits brightness, but with a touch glass overlay, there is about a 20% reduction in brightness, so the brightness of the touch screen monitor is about 1,280 nits brightness.

The FOP1200HB-SAW-S, 12” high bright resistive touch monitor is designed to never change design, even if there is a panel revision. There is a wide variety of applications that this touch screen monitor can be used for and a few of those include any indoor environment with high ambient lighting or outdoor environment, such as digital signage displays, Kiosks, information booths, instrumentation control panels or interactive control devices.

FOP1200HB Open Frame Monitor Quick Facts

4:3 Aspect, 800 x 600 resolution
246.0 x 184.5 [mm] x [mm], 9.69 x 7.26 (inch) x (inch) active area
High grade TFT, 1600 nit LCD Panel
Standard 15-pin VGA input connector
DVI, Composite and BNC video input options

Standard Features

Compatible with iTechLCD's standard definition signage players
Robust CNC milled open frame enclosure
Compliant with RoHS, UL, CSA, TUV, FCC B, VCCI B, CE TCO 99, TUV Ergo, EPA Energy Star
Perfect for kiosk, equipment and instrument drop-in designs
Superior viewing angles, contrast ratio and brightness
Unique design accounts for heat ventilation

Included in the package

FOP1200HB High Bright Open Frame Monitor
+12V power adapter and cord
VGA cable

Specifications

LCD Panel
Display Panel	12.1 inch TFT LCD
Dot Pitch	0.3075(H) x 0.3075(V) mm
Max Resolution	800 x 600 SVGA
Contrast Ratio	500:1 (typical)
Brightness	1600 cd/m2 (typical)
Uniformity	80% (minimum)
Backlight MTBF	50,000 hours (minimum at 25°C)
Response Time	35 ms (typical)
Display Colors	262 thousands
Viewing Angle	±70°L/R, +60°U,-60°D (typical at CR=10)
Video and Power
OSD Controls	Brightness, Contrast, Phase, Clock, Color, H&V position, Auto-tune, Recall
Input Signal	RGB analog 0.7V peak to peak
Video Input Connector	D-sub 15 pin analog VGA
Power Supply	AC/DC 12V power adapter, universal 100-240 Volts
Mechanical and Environment
Operating Temperature	-10~65°C [14~149°F]
Storage Temperature	-30~70°C [-22~158°F]
Humidity	0-85% relative humidity, non-condensing
Dimensions (WxHxD)	310 x 237.7 x 36.8 mm [12.2 x 9.36 x 1.45 inch]
Net Weight	1.645 Kg [3.6 lbs]

Data Sheet
