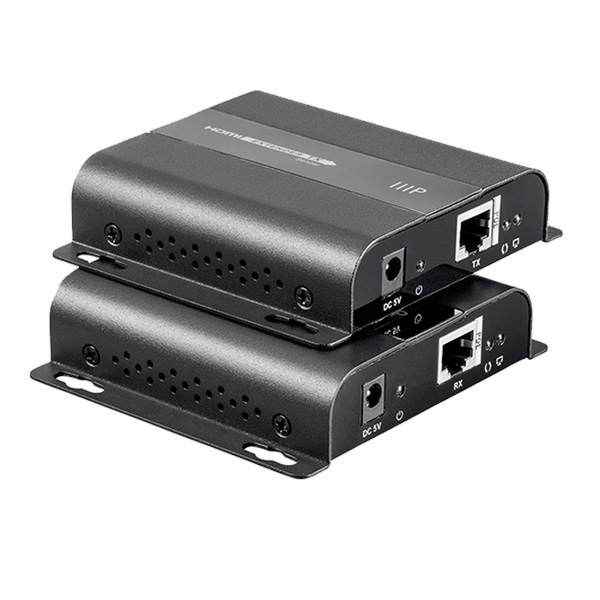

HDMI Extender Over Single Cat6 Cable with IR and PoE-Enabled, 120m (Model: MN-H-C5-8211)
HDMI Extender Over Single Cat6 Cable with IR and PoE-Enabled, 120m (Model: MN-H-C5-8211)
Main Feature
- Transmits an HDMI signal to distances up to 394 feet (120 meters) over an single Car6 Ethernet cable
- Supports HDMI resolutions up to 1080p@60Hz
- Supports the IEEE 802.3af Power over the Ethernet (PoE) feature
- Supports up to 254 receivers and connected displays per transmitter
- Can be operated over and existing Ethernet network
- Uses the MN-H-C5-8211 transmission protocol
- Fully supports HDCP
X
Inquiry/Quote Request
- Overview
- Specifications
- Download
- Contact Sales
PRODUCT OVERVIEW
| Transmitter |
 |
1. Reset: Button for restarting the transmitter.
2. HDMI Input: HDMI® connector for connecting the video source device.
3. IR Out: 3.5mm jack for connecting the IR transmitter.
4. DC 5V: DC barrel connector for attaching the included AC power adapter.
5. Power LED: Illuminates when power is applied.
6. MN-H-C5-8211: RJ45 connector for attaching the Ethernet cable.
7. Data Transmission LED: The LED flashes slowly when a connection is being established, then flashes rapidly when successfully connected and transmitting data.
8. Connection LED: The LED illuminates when there is a solid connection with the receiver.
| Receiver |
|
1. Reset: Button for restarting the receiver.
2. HDMI Output: HDMI® connector for connecting the video display.
3. IR In: 3.5mm jack for connecting the IR receiver.
4. DC 5V: DC barrel connector for attaching the included AC power adapter.
5. Power LED: Illuminates when power is applied.
6. MN-H-C5-8211: RJ45 connector for attaching the Ethernet cable.
7. Data Transmission LED: The LED flashes slowly when a connection is being established, then flashes rapidly when successfully connected and transmitting data.
8. Connection LED: The LED illuminates when there is a solid wireless connection with the transmitter.
| Video Standard | HDMI® with HDCP |
| Maximum Video Resolution | 1080p@60Hz |
| Transmission Protocol | MN-H-C5-8211 |
| Maximum Transmission Distance | 394 feet (120 meters) using Cat6 cable 328 feet (100 meters) using Cat5e cable 262 feet (80 meters) using Cat5 cable |
| IR Extender Bandwidth | 20 ~ 60 kHz |
| Maximum Transmitter Power Consumption (each) | 35 watts |
| Maximum Receiver Power Consumption (each) | 3 watts |
| Power Source | 5 VDC, 1A AC power adapters IEEE 8023af Power over Ethernet (PoE) |
| Operating Temperature | +32 - +140°F (0 *- +60°C) |
| Dimensions (each) | 4/T x 37" x 0,9" (105 x 95 x 24 mm) |
| Transmitter Weight | 8.6 oz. (245g) |
| Receiver Weight | 8.6 oz. (243g) |
