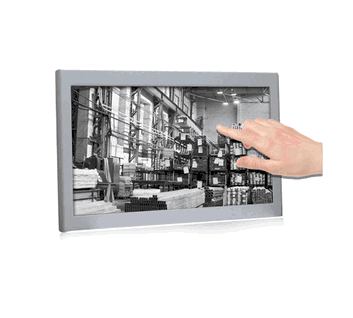

Fanless full metal 15" industrial panel PC with 5 wires resistive touch screen and Intel Atom (Model: KCPC1500-AT)

Fanless full metal 15" industrial panel PC with 5 wires resistive touch screen and Intel Atom (Model: KCPC1500-AT)

Fanless full metal 15" industrial panel PC with 5 wires resistive touch screen and Intel Atom (Model: KCPC1500-AT)

Main Feature

    • 3.5" SBC (Single Board Computer) with Intel D2550 NM10 chipset
    • Touch panel LCD from 15" to 24"
    • Widescreen solution for 21.5" and 24"
    • Up to 2 x GLAN, 3 x COM, 4 x USB
    • DC in 12V or DC in 9V ~ 36V
    • 1 x CF card socket / CFast card socket, 1 x Mini PCIe slot
    • External DVD-RW driver (optional)
    • DC in power terminal block (DC in 9V ~ 36V)
KCPC1500-AT
  • Overview
  • Specifications
  • Download
  • Contact Sales
KCPCXXXX-AT Series is powered with Intel Atom D2550 with 3.5 inches SBC (Single Board Computer) form factor. It's a mid-tier device made for manufacturers that gives a cost-effective solution.

With a chassis design of Black Metal/Silver and excelent performance but low consumption power supply. It's a fanless design Panel PC and compact solution with 5 wires resistive touch screen.

Has a variety selection of sizes available in black metal chassis design from 15 to 21.5 inches, for silver metal chassis design it's ranges from 15 to 24 inches. Also has a widescreen solution for 21.5 and 24 inches (16:9).

Specifications:


Display Size / Aspect Ratio 15" TFT (4:3)
Backlight LED
Resolution 1024 x 768
Colors 16.2 M
Luminance (cd/m2) 400
Contrast Ratio 700:1
Viewing Angle (H/V°) 160/160
MTBF (hrs) 50,000
Touch Screen 5-wire resistive
Dimension (W x H x D, mm) TBD
Weight (kg) TBD
Color Black ( front ) / Sliver ( back )

CPU Intel Dual Core Atom D2550 1.86GHz
Chipset Intel NM10
Memory 1 x DDR III SODIMM up to 4 GB
Power Supply DC in 12V external power adapter DC in 9V ~ 36V external power adapter
I/O Ports (Default) 1 x RS232, 2 x GLAN, 2 x USB,
1 x VGA, 2 x SATA socket
1 x RS232, 2 x GLAN, 2 x USB, 1 x VGA,
1 x SATA socket, 1 x Power terminal block
I/O Ports (Optional) Extra 1 x RS232, 1 x RS232/422/485,
Extra 2 x USB, 1 x Line-out, 1 x Mic-in
Extra 1 x RS232, 1 x RS232/422/485,
Extra 2 x USB, 1 x Line-in, 1 x Line-out,
1 x Mic-in
Expansion 1 x CF card socket, 1 x Mini PCIe slot 1 x C Fast card socket, 1 x Mini PCIe slot
Operation Temperature 0°C ~ 45°C
Storage Temperature -10°C ~ 70°C
Relative Humidity 0% ~ 90% non-condensing
OS Support Win 7 Pro, Embedded 7
Installation VESA mount 100 x 100 mm
Optional Items External DVD-RW driver, RFID sensor, Memory, Storage devices, WiFi, OS Support
