Fan Assembly Kit (Model: 1908-3-001-01)

Fan Assembly Kit (Model: 1908-3-001-01)

Fan Assembly Kit (Model: 1908-3-001-01)

1908-3-001-01
  • Overview
  • Download

The Kendall Howard Fan Assembly Kit helps to remove ambient heat that rackmount components can emit. Circulating new air into awall mount cabinetorserver enclosurehelps to maintain the optimal temperature for devices such as servers, battery backups, and UPS's.

  • Ball bearing design
  • 115V / 78 CFM
  • Impedance protected
  • RoHS compliant
  • Includes power cord, fan guard, and installation hardware
  • 1-Year Limited Warranty


Features

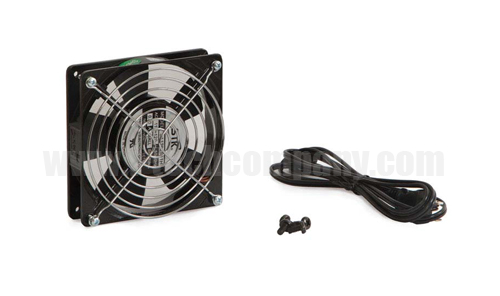

All-in-One The fan assembly kit comes complete with one 115V / 78 CFM fan, one protective grate, one 6 ft. NEMA 1-15 power cord, and all installation hardware.
Easy to Install The Kendall Howard Fan Assembly Kit is a snap to install. Simply use the included hardware to screw into place. The fan also includes airflow and rotation guides to ensure proper installation.
Compatibility The standard 4" fan complements all Kendall Howard cabinets and enclosures. Whether you need to cool a wall mount cabinet, full size enclosure, DVR lock box or training table cable management enclosure, this fan assembly kit will get the job done.
Optional Grounding Server rack fan features two threaded grounding holes should you need to ground the fan for your particular installation.


Specifications

Part Number 1908-3-001-01
Width 4.7"
Depth 4.7"
Height 0.984"
Weight 1.50 lbs.
Shipping Dimensions 6" L x 6" W x 6" H
Color/Finish Black
UPC 879447001167
Warranty 1-Year Limited Warranty
Shipping Method FedEx Ground
Fan Specifications Bearing System: Ball Bearing
Voltage: 115 VAC
Rated Speed: 2000 RPM
Air Flow: 78 CFM
Noise Level: 38dBA
Operating Temperature: -22F (-30C) to 167F (75C)
Power Cord Specifications Cable Length: 6ft (72in)
Plug Type: NEMA 1-5 (type A)
