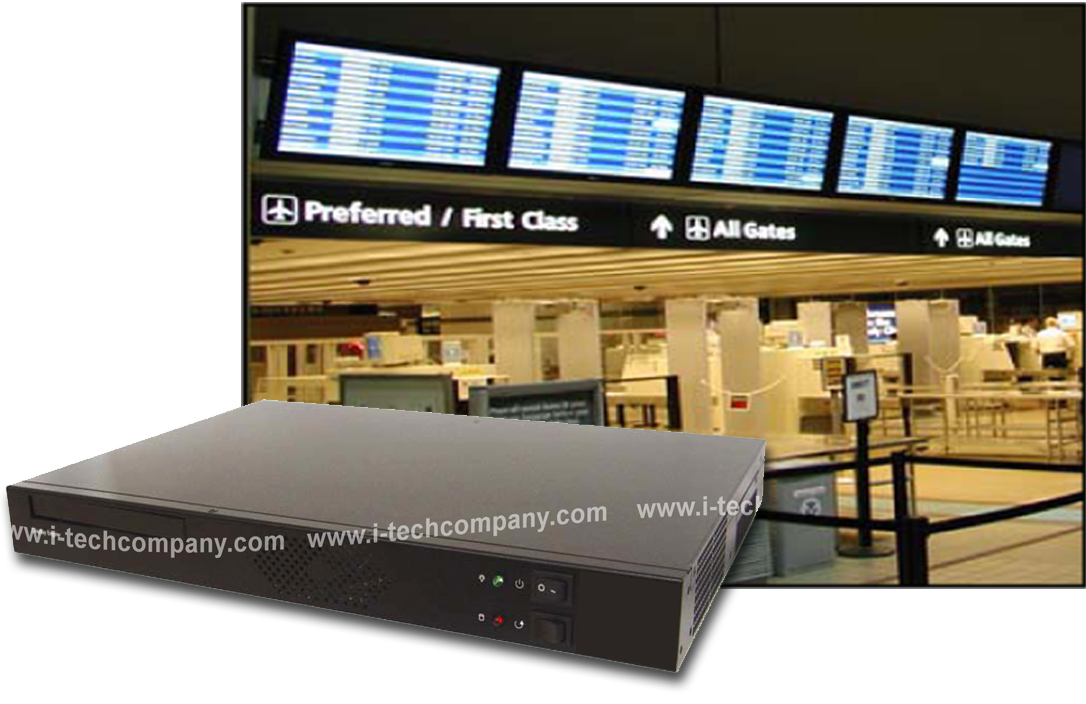

Digital LCD/Plasma Signage High Reliability Compact Silent (Pentium 4,2.8G) Computer Engine Box for Public Information Display Model:(WBX-9000-P4-28)

Digital LCD/Plasma Signage High Reliability Compact Silent (Pentium 4,2.8G) Computer Engine Box for Public Information Display Model:(WBX-9000-P4-28)

Digital LCD/Plasma Signage High Reliability Compact Silent (Pentium 4,2.8G) Computer Engine Box for Public Information Display Model:(WBX-9000-P4-28)

WBX-9000-P4-28
  • Overview
  • Download

Feature :
• Most Powerful Digital Signage Control Box
• Most Compact Design in its kind (430 x 300 x 44.5mm)
• Intel 82845GV Chipset with Built-in AGP 4X Graphics
• 10/100Base-Tx Fast Ethernet
• Two PCI Slots for expansions
• Optional nVIDIA GeForce FX5200 16:9 PCI VGA Card
• Optional Wireless (Wi-Fi) Module and CD/DVD-ROM

• Slim and rugged mechanism design
• Built in 16: 9
• Long Life Time Guarantee
• Specific Thermal Solution
• High Reliability
• Intelligent Installation
• Support Remote Device Management
• Portrait
• XPe Solution
• 7/24/365 non-stop operations applications
See more deatail

Base Configuration for engine box :
• Chipset : Intel 845 GV
• CPU : Pentium 4 2.8G
• RAM : 512MB, DDR333
• HDD: 80GB ATA
• I/O : 2 x PCI

Specification
System
CPU
Intel Pentium 4 2.8G
FSB
400MHz / 533MHz
Chipset
Intel 845GV+ICH(82801DB)
BIOS
Award BIOS Support ACPI Function
Cache
128K/256K/512K Level 2 (CPU integrated)
VGA
845GV built-in AGP 4X graphics
LAN
Realtek 8100BL 10/100Base-Tx Fast Ethernet Controller
Memory 1 X DDR 2.5V PC200/266/333 DDR SDRAM (without ECC Function)
DIMM Module. Max. capacity - 1GB
I/O
Winbond W83627HF LPC I/O
IDE IDE 1 40-pin box header (Ultra DMA 33/66/100);
IDE 2 44-pin header
Audio ICH4 Built-in AC97 Audio, ALC650 6 Channel Codec
WDT Watchdog Timer (256 steps, 0~255 sec/step)
Storage
HDD
Internal drive bay for 3/5” IDE HDD x 1
CD-ROM Optional drive bay for slim type CD/DVD-ROM x 1
I/O
PCI Slot 32-bit PCI slot x2
External I/O
VGA DB-15 x 1
Audio Jack Line-out and Mic-in
USB USB 2.0 x 2
COM DB-9 x 1
Parallel DB-25 x 1
KB/Mouse PS/2 Keyboard x 1 and PS/2 Mouse x 1
LAN RJ-45 x 1
Mechanical & Environmental
Power Input
AC 90~264V / 47~63Hz
Operating Temperature
0~40°C
Storage Temperature
-20~80°C
Relative Humidity 10%~90%, non-condensing
Dimensions 430 x 300 x 44.5 mm (5.2 kg)

See Features:

Slim and rugged mechanical design
Ultra-Slim design fixed behind the display safely and nicely.
•  Easy-mounting
•  Free-Cabling
•  Ultra Compact (1U/44mm height)
•  Reliability (Industrial-grade M/B)

Portrait
This product with built-in software drivers to support all the 16 by 9 resolutions in portrait mode.
You have worry-free and plug and play experience with our products.

Long Life Time Guarantee
It is industrial computer design.
The configurations and all the parts can be supported in next 3-5 years without any change.



Specific Thermal Solution
To support continuous operation, We have proprietary designof thermal solutions.

• Special heat pipe thermal module supports up to P4 3.06GHz
• The most silent model in its kind (<40dB with P4 3.06GHz / 100% CPU loading)

High Reliability
This Engine Box will not shut-down or hang-up and show a black screen in a public place.
• Built in Industrial-grade Intel845 Embedded board
• Supports WDT function
• 7/24 running duration
• Automatically reboot when computer shut down

WDT & PXE
WDT
-Automatically reboot when computer shut down.
-Check computer shut down or not in designated time period.
PXE
-Update / Upgrade software without change computer.
