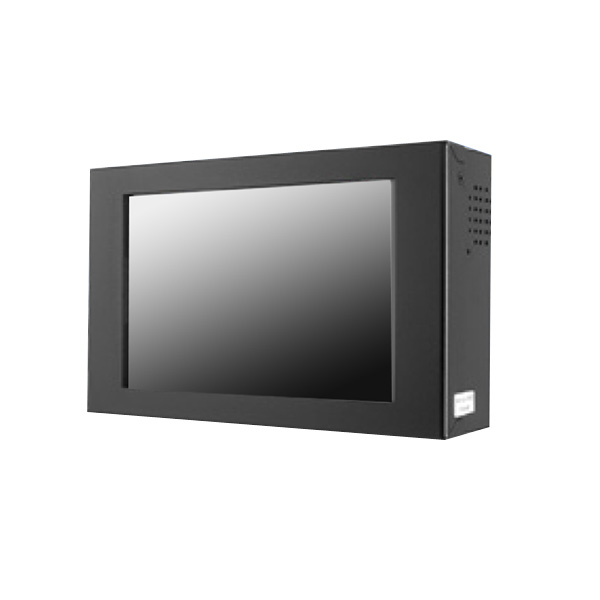

Chassis Mount 10.1" / 1920x1200 / 700nits / VGA+DVI+HDMI input -20 to 70C / VESA Mount/12V input with external 110/220V Power adapter (Model: YCHW1010X)

Chassis Mount 10.1" / 1920x1200 / 700nits / VGA+DVI+HDMI input -20 to 70C  / VESA Mount/12V input with external 110/220V Power adapter (Model: YCHW1010X)

Chassis Mount 10.1" / 1920x1200 / 700nits / VGA+DVI+HDMI input -20 to 70C / VESA Mount/12V input with external 110/220V Power adapter (Model: YCHW1010X)

Main Feature

  • Modularize mechanical design provides flexible product configuration and easy maintenance
  • Optional build-in touch screen for interactive application
  • Available with auto-brightness sensor offers application in day and night
  • VGA connector with optional AV,SV,AV-Looping
  • Complete custom design/solution for OEM customers
YCHW1010X
  • Specifications
  • Download
  • Contact Sales

Panel Cell Type / Glass Surface TFT LCD / Black Anti-Glare, low refection coating
Aspect Ratio / Size Wide / 10.1" viewable diagonal area
Active Area / Pixel Pitch 216.576(H) x 135.36(V) mm / 0.113(H) x 0.113(V) mm
Native Resolution / Colors 1920(H) x 1200(V) / 16.7M
Brightness / Contrast 700 cd/m2 (typ) / 800 : 1
Response Time ? 25 ms
Viewing Angle (typical) H.178o (- 89o ~ + 89o) , V. 178o (- 89o ~ + 89o)
Light Source LED backlight, Long life, 35,000 hrs (typ)
Input Sources PC System Signal Analog RGB (0.7/1.0 Vp-p, 75 ohms)
Sync Separate Sync, Composite Sync, Sync On Green
Frequency Fh : 30 - 82Khz , Fv : 50 -75Hz
Audio System No Speakers
Input Terminals VGA+DVI+HDMI , 1xPC Audio (Stereo Headphone Jack), 1 x DC Power Plug
Convenient Features Auto Calibration , Back Light Adjustment , Plug&Play (VESA DDC/CI, DDC 2B)
OSD Multi-Languages , Wall Mount Ready (VESA Dimension - please refer to Drawing)
Power 12V input w/ external 110/220V Power adapter
Power Consumption Operation / Power Saving 8.75 watt , < 1 watt (Support DPMS)
Operating Condition Temperature / Humidity - 20oC ~ 70oC (- 4oF ~ 158oF) , 10% ~ 90% (no condensation)
Storage Condition Temperature / Humidity - 30oC ~ 80oC (-22oF ~ 176oF) , 10% ~ 90% (no condensation)
Certification   FCC , CE
Dimensions Physical Please refer to Drawing
Carton W x H x D = TBD
Weight N.W. / G.W. 3.5 Kgs / 4.5 Kgs
Container Loaded 20ft / 40ft / 40ft HQ

TBD (Sets , By pallet)



Options Touch Video / TV Enhanced Panel Others
Resistive touch SV + AV Panel with LED backlight Digital Signage(Stand alone)
Capacitive touch

SV + AV + AV_Looping

High brightness panel Networking Digital Signage
SAW touch SV + AV + TV Wide Temperature Motion Sensor
Infrared touch   Sunlight Readable Light Sensor
Protected glass     Auto-Dimming
